• Model NO.：ELECNC-3050
• Customized：Customized
• Condition：New
• Color：Customized
• Product Name：4 Axis CNC Router
• Spindle Power：9kw Water Cooling Spindle
• Linear Rail：30# Hiwin Linear Guide Way Made in Taiwan
• Spindle Speed：24000rpm,Min
• Voltage：380V,220V, 3 Phase
• Software：Type3 and Artcam
• Transmission：Tbi Ball Screw From Taiwan
• Controlling System：DSP
• Drive Motors：Japan 1.5kw Yaskawa Servo
• Working Voltage：AC380V,50,60Hz, 3pH (Option: 220V))
• Operating System：Syntec Control System 21mA
• Rotary Device：Diameter300mm, Length 2000mm
• Collet：Er32 (20mm)
• Reducer：Japan Shimpo Reducer
• New Type Dust Collection：1.5kw with Two Bags (Equal The Old Type 4kw )
• Transport Package：Standard Export Wooden Case
• Specification：CE, FDA, ISO, SGS
• Trademark：BLUE ELEPHANT
• Origin：Shandong, China
• Production Capacity：200 Sets Per Month

Number

Description

Parameter

1

X,Y,Z Working Area

2860x3500x1450 mm*±100°

2

Effective working area

2860x3500x1450 mm

3

X,Y,Z Traveling Positioning Accuracy

±0.01/300mm

4

X,Y,Z Repositioning Accuracy:

±0.01mm

5

Table Surface

T-slot Table

6

Frame

Big Steel Tube Structure

7

Y Structure

Helical rack gear , 4pcs HIWIN #35 Linear guide

8

X,Z Structure

HIWIN #45  Linear guide

9

Max. Power Consumption

(Without Spindle) 5Kw

10

Max. Rapid Travel Rate

40000mm/min

11

Max. Working Speed

30000mm/min

12

Spindle Power

HSD spindle 4.5kw

13

Spindle Speed

0-24000RPM

14

Drive Motors

Japan 1.5KW YASKAWA servo

15

Working Voltage

AC380V/50/60Hz,3PH (Option: 220V))

16

Command Language

G Code

17

Operating System

SYNTEC Control System 21MA

18

Rotary device

Diameter300mm, length 2000mm

18

Computer Interface

USB

19

Flash Memory

512M

20

Collet

ER32 (20mm)

21

X,Y Resolution

<0.01mm

22

Software Compatibility

UG , Power mill

23

Running Environment  Temperature

0 - 45 Centigrade

24

Relative Humidity

30% - 75%

25

New type dust collection

1.5KW with two bags (equal the old type 4Kw )

PS:All the working area and specifications can be customized according to your requests.

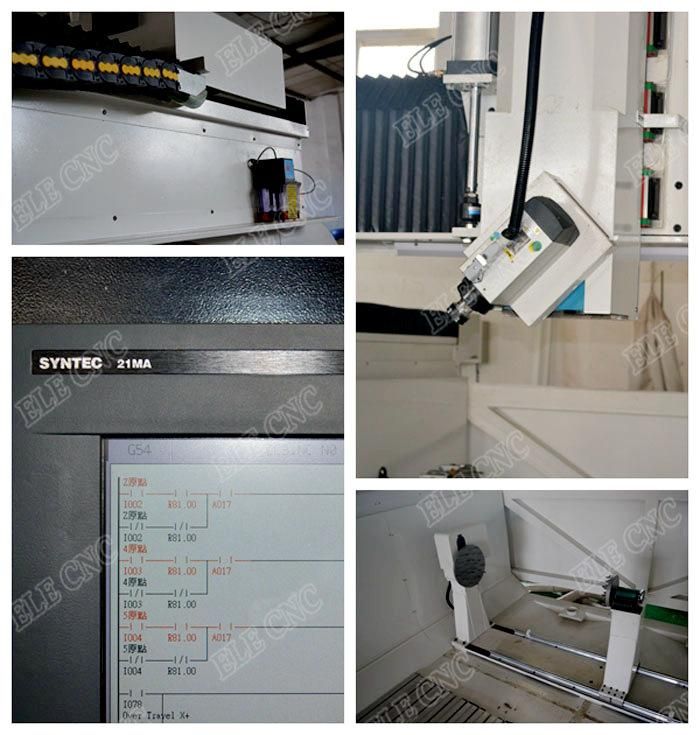

Product Details

Application

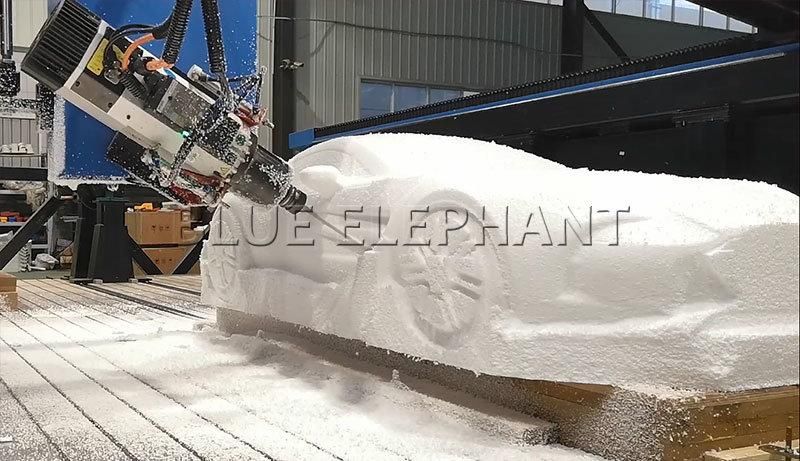

Ideal for automobile mold industry, suitable for EPS foam, casting wood mold, automobile interior decoration, engineering plastic and other non-metal materials .

Packaging and shipping

Packaging & Delivery:
Packaging Details: 1.Outside package:Standard marine export plywood case.
                                  2.inner package:Stretch film and plastic film for humidity.
                                  We can package according to your requests.
Delivery Detail: Shipped in 25 working days after payment.

Sample show




Our service
1, Within 7 days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
Our factory

• Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. We have always been developed to the research and manufacturer of CNC router machine and laser cutting engraving machine.
• Our Philosophy: To Be First Brand -- CNC Manufacturer & wholesaler Platform!

• Just looking forward to service every customer, like you.
