Best 4 Axis CNC Router 1530 Atc Woodworking Machine Linear Type for Wood Acrylic Engaving
Jinan Blue Elephant CNC Machinery Co., Ltd.- Warranty:12 Months
- Type:Engraving Router
- Spindle Layout:Spindle Underneath
- Spindle Number:Single-Spindle
- Feed Mode:Mechanical
- Controlling Mode:CNC
Base Info
- Model NO.:ELECNC-1530
- Certification:CE, ISO, SGS BV TUV
- Customized:Customized
- Condition:New
- Color:Customized
- Voltage:AC380V,3pH,50Hz(220V for Optional)
- Spindle:4.5kw Hsd Air Cooling Spindle
- Spindle Speed:0-18000rpm
- Inverter:5.5kw Delta Inverter
- Control System:Syntec Control System From Taiwan
- Typeset Software:Type3, Art Cam, Ugs, Ucancanv9
- Motor/ Driver:1000W Yaskawa Motor and Driver From Japan
- Driver Motors:Japan 850W Yaskawa Servo Motor
- X,Y Structure:Helical Rack Gear, Hiwin Linear Guide
- Transport Package:Standard Export Wooden Case
- Specification:CE, ISO, SGS
- Trademark:BLUE ELEPHANT
- Origin:Shandong, China
- Production Capacity:200 Sets Per Month
Description
Basic Info.
Model NO. ELECNC-1530 Certification CE, ISO, SGS BV TUV Customized Customized Condition New Color Customized Voltage AC380V/3pH/50Hz(220V for Optional) Spindle 4.5kw Hsd Air Cooling Spindle Spindle Speed 0-18000rpm Inverter 5.5kw Delta Inverter Control System Syntec Control System From Taiwan Typeset Software Type3, Art Cam, Ugs, Ucancanv9 Motor/ Driver 1000W Yaskawa Motor and Driver From Japan Driver Motors Japan 850W Yaskawa Servo Motor X,Y Structure Helical Rack Gear, Hiwin Linear Guide Transport Package Standard Export Wooden Case Specification CE, ISO, SGS Trademark BLUE ELEPHANT Origin Shandong, China Production Capacity 200 Sets Per MonthProduct Description

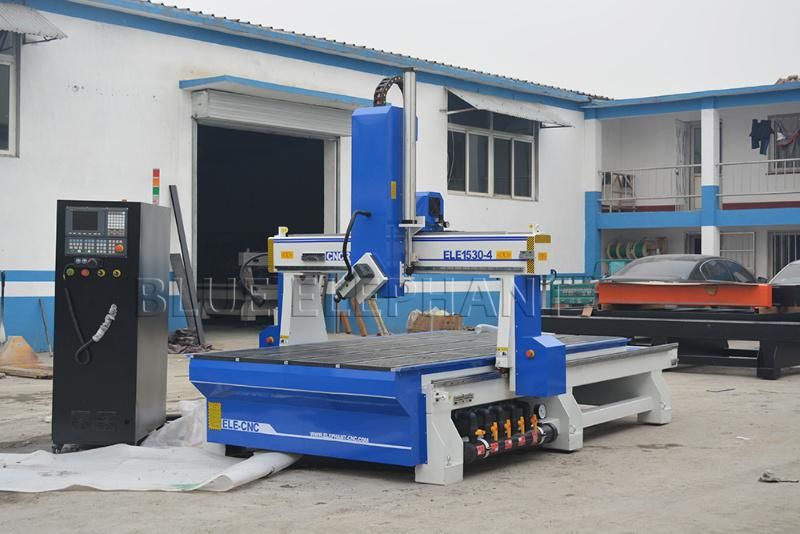

Best 4 Axis Wood CNC Router 1530 ATC Woodworking Machine Linear Type For Wood Acrylic EngavingAdvantages:
- Welded structure by thick profiled steel,Assembled with precise parts.

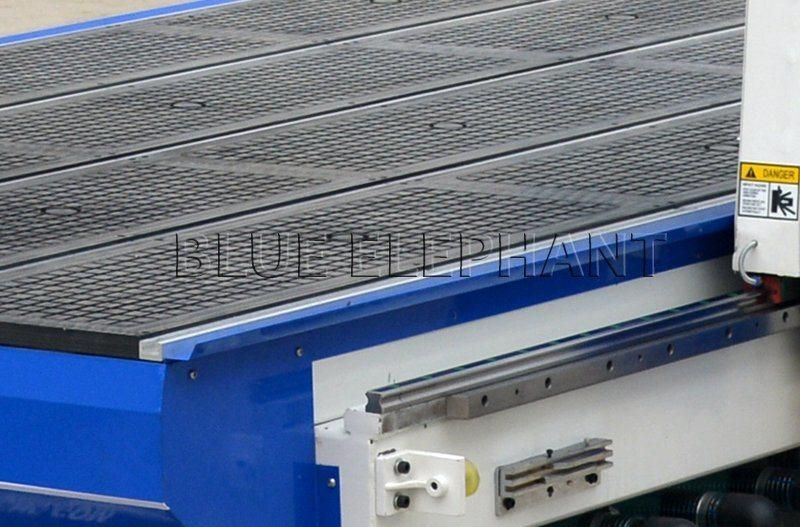

- Rigid vacuum table with grids and T-slots maximizes the vacuum hold-down power and also enables you to clamp the workpiece in place.
- Imported SYNTEC high performance control system, separated keyboard control, color LCD display.
- Furniture: wooden doors, cabinets, computer tables, sewing machine, musical instruments
- Plate processing: insulation, plastic and chemical, the PCB, move the car body, bowing, track, stars anti-special board, epoxy, resin, ABS, PP, PE, and other carbon mixture
- Decoration industry: acrylic, PVC, MDF, artificial stone, plexi-glass, plastic, and copper and aluminum and other soft metal plate engraving and milling cutting.
Description | Parameter |
X,Y,Z Working Area | 1500x3000x400mm*±100° |
Table Size | 1500*3500mm |
Table Surface | Vacuum and T-slot Combined (Option: T-slot Table) |
Frame | Big Steel Tube Structure |
X, Y Structure | Helical rack gear, Taiwan HIWIN Linear guide |
Z Structure | Imported Taiwan TBI Ball Screw ,Taiwan HIWIN Linear Guide |
Max. Rapid Travel Rate | 40000mm/min |
Max. Working Speed | 30000mm/min |
Spindle Power | Italy HSD Spindle 4.5kw( Italy ATC spindle for option) |
Spindle Speed | 0-18000RPM |
Drive Motors | Japan 850 W YASKAWA Servo Motor |
Working Voltage | AC380V/50/60Hz,3PH (Option: 220V) |
Command Language | G Code |
Operating System | Taiwan SYNTEC Control System (model: EZ4M) |
Computer Interface | USB |
Flash Memory | 512M |
Collet | ER25 |
X,Y Resolution | <0.01mm |
Software Compatibility | UG , Power mill |

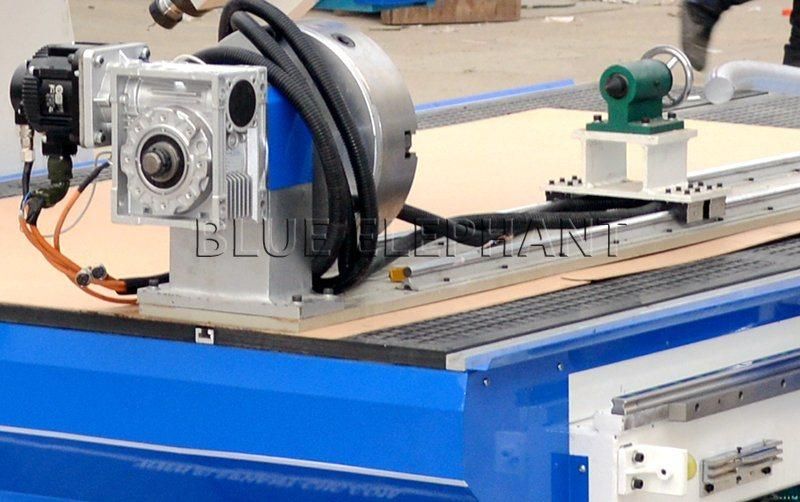

Main Parts
Application

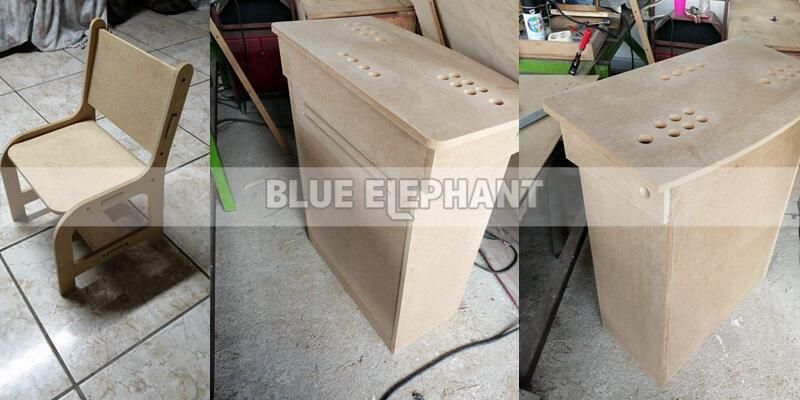

1. Wood furniture industry
Doors; Cabinets; Tables; Chairs.
Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising industry
Signage; Logo; Badges; Display board; Meeting sign board; Billboard
Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die industry
A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.
4. Artwork and Decoration
wood crafts; gift box; jewelry box
5. Others
Relief sculpture and 3D engraving and Cylindrical object.

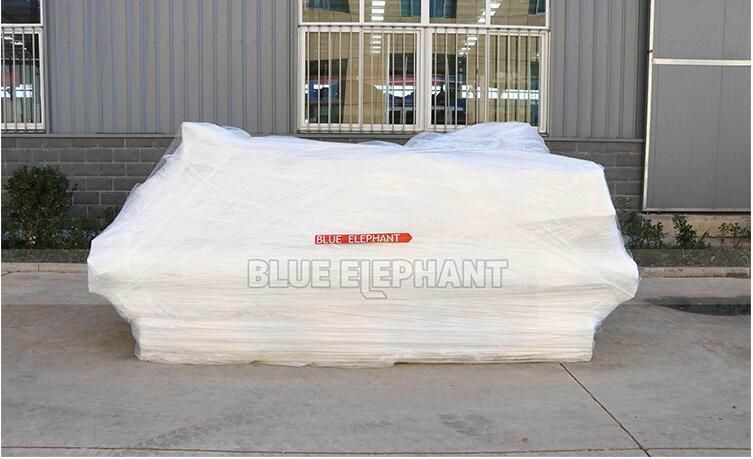

Packaging & Delivery:
Packaging Details:
Three layers---
-The innermost layer is EPE pearl cotton film package;
-The middle layer is wrapping up with environmental protection material ;
-And the outermost layer is winding up with PE stretch film.
They're very environmentally friendly.
If you need a wooden box, we will make a wooden box outside the machine.
Delivery Detail: Shipped in 15 working days after payment.
Our Service:
1, Within 7?days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7?days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered, operation disk/CD was included.

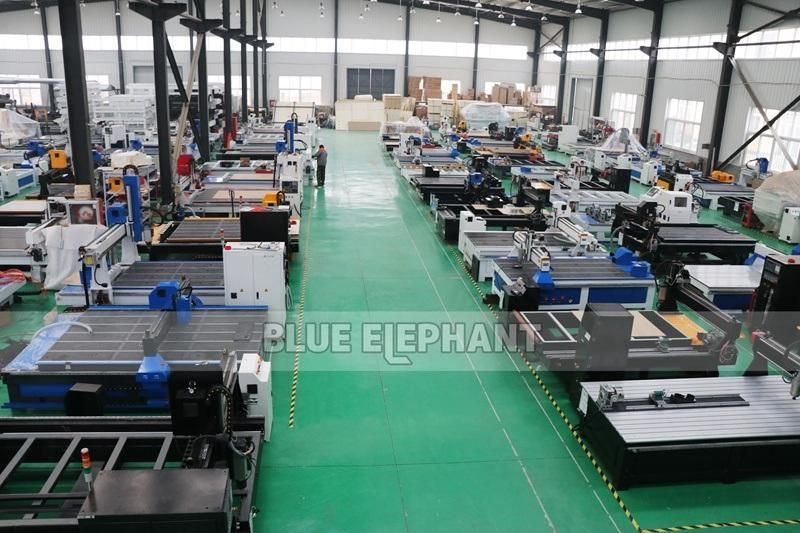

Company information

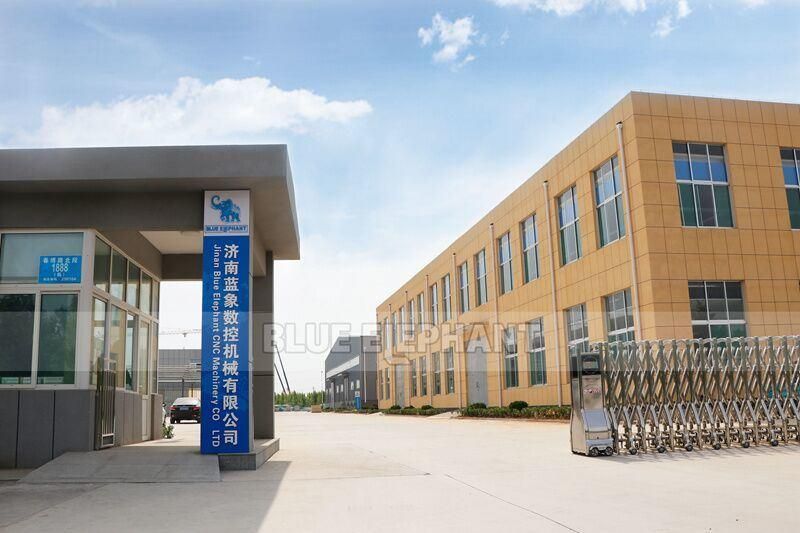

- Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. We have always been developed to the research and manufacturer of CNC router machine and laser cutting engraving machine.
- We have our R & D department, Quality control department, and after sale & service department.
- Our products are widely used in Woodworking, Advertising, Model, Electric, CAD/CAM Industry model, Clothing, Package Printing, Marking, Laser sealing and so on.
- We had got CE and ISO9001 certification always offer best quality machine.
- Our Philosophy: To Be First Brand -- CNC Manufacturer & wholesaler Platform!
