• Model NO.：ELECNC-1325
• Certification：CE, ISO, SGS BV TUV
• Customized：Customized
• Condition：New
• Color：Customized
• Transport Package：Standard Marine Export Plywood Cases
• Specification：Weight: 1500kgs
• Trademark：Blue Elephant
• Origin：Shandong, China
• Production Capacity：200set,Sets Per Month

Basic Info.

Model NO. ELECNC-1325 Certification CE, ISO, SGS BV TUV Customized Customized Condition New Color Customized Transport Package Standard Marine Export Plywood Cases Specification Weight: 1500kgs Trademark Blue Elephant Origin Shandong, China Production Capacity 200set/Sets Per Month

Product Description

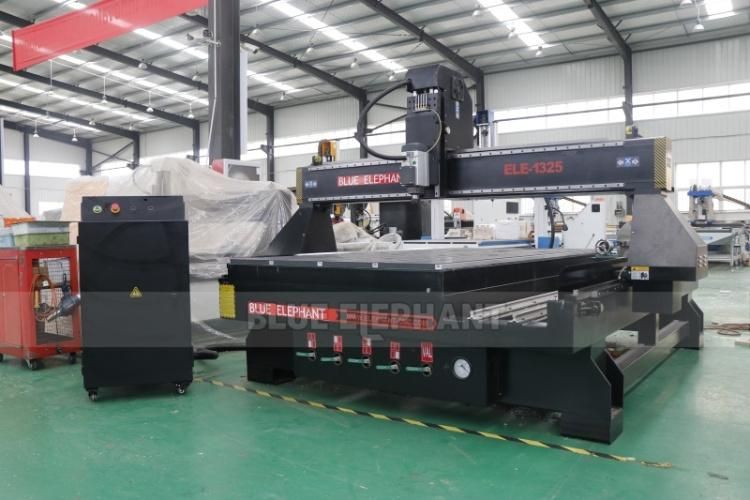

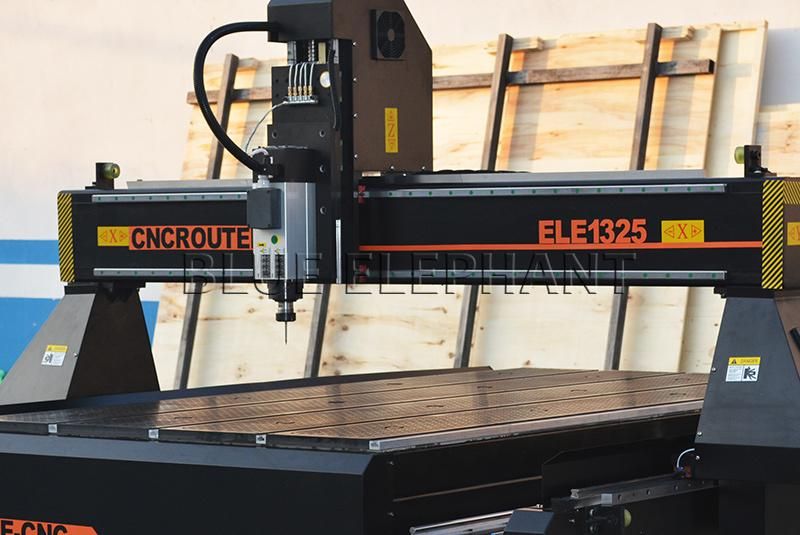

1325 4X8 CNC Router Rotary Device 4 Axis Furniture Making Machine for Round Materials

1325 4 axis cnc router feature

• Welded structure by thick profiled steel, stabilized under high temperature, ensures minimum distortion,excellent rigidity and powerful strength.
• With easily-learned software,conveniently check the moving path of tool,and adjust the processing depth of Z axis and the speed of motor.
• High power spindle can make machine working with high precision and long time
  service and stable movement.
• Big power and high precision 750w YASKAWA servo motor and driver.
  Rotary device: 300mm diameter and 2200mm length.

1325 4 axis cnc router rotary device

Technical Parameter

Description	Parameter
X,Y,Z Working Area	1300x2500x300mm
Spindle	Italy 7kw HSD air cooling spindle
Inverter	7.5kw Fuling Inverter
Motor driver	Japan 750w Panasonic Servo motors and drivers
Spindle Speed	0-18000RPM
Control System	Mach3 4 axis controller with MPG handle
Table Surface	T-slot&vacuum Table
X, Y Structure	20# Taiwan HIWIN/PMI/ABBA Linear guide and helical rack
Z Structure	Ball screw and #20 Taiwan HIWIN/PMI/ABBA Linear guide
Max. Rapid Travel Rate	45000mm/min
Max. Working Speed	30000mm/min
X,Y,Z Traveling Positioning Accuracy	±0.03/300mm
X,Y,Z Repositioning Accuracy	±0.03mm
Lubrication system	Manual
Command Language	G Code
Computer Interface	USB
Flash Memory	512M(U Disk)
Frame	Welded Steel Square Tube Structure
X,Y Resolution	<0.01mm
Software Compatibility	Type3 Software, (Option: Artcam Software)
Running Environment  Temperature	0 - 45 Centigrade
Relative Humidity	30% - 75%

 PS:All the working area and specifications can be customized according to your requests.

Main parts

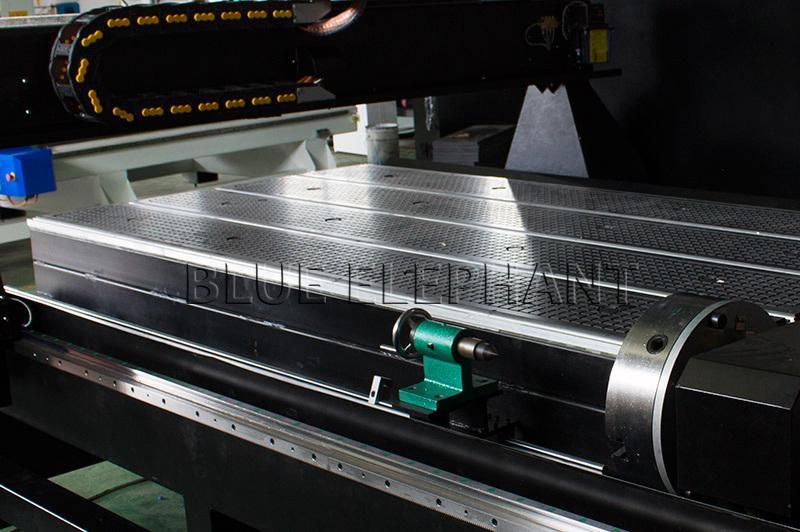

Rotary Device --- It can engrave cylindrical object.

Italy 7kw HSD Air Cooling Spindle --- Top brand spindle of the world.

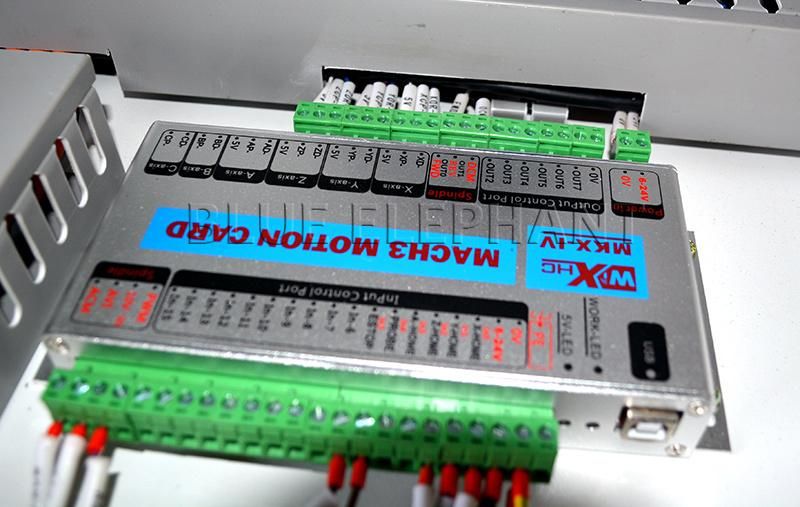

Mach3 Controller --- It max support 4 axis.



Feature

• 1300x2500x300 working area
• 7kw Italy HSD air cooling spindle,18000rpm
• 7.5kw Fuling inverter
• Mach3 4 axis control system
• Japan Panasonic servo motor and driver
• Imported Taiwan HIWIN/PMI/ABBA 20# Square Linear Guide
• Z axis Original Taiwan TBI ball screw Transmission

• T-slot&vacuum table

• Manual Oil Lubrication system
• Japan Ormon Limit Switch
• France Schneider safety switch
• Voltage 220V 3phase 60HZ (option:330v)
• Plywood case Package
• Artcam software

Application

Furniture:ideally suitable for processing cabinet door,wooden door,solid wood furniture,panel wood furniture,windows,tables and chairs,etc.

Well suited for processing panel.insulating materials,plastic,expoxy resin.carbon mixed compound,etc.

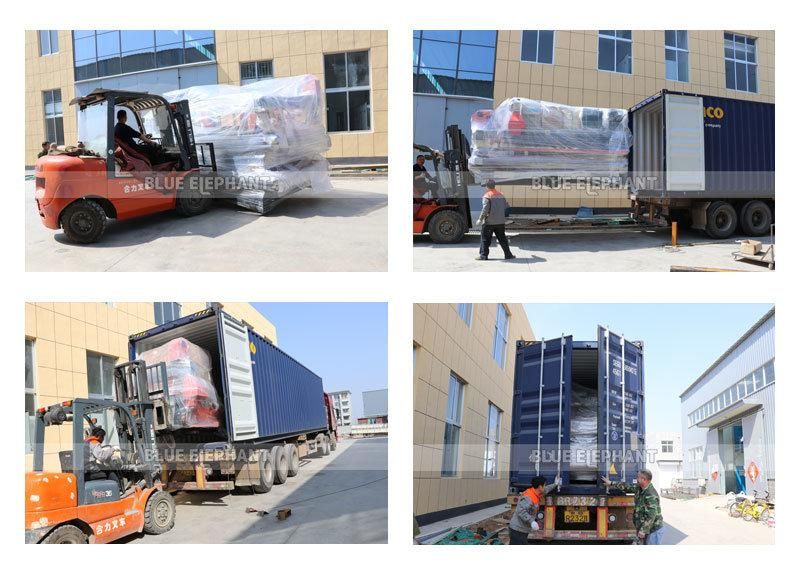

Packaging and shipping

1.Outside Package: Standard export wooden case .

2.Inner package: strech film .
For shipping, you can choose the sea shipping,air shipping or the transmission of expressage: DHL/TNT/Fedex.
For terms of payment, you can choose the EXW/FOB/CIF/DDP/DDU.It depends on what you would like better.

Our service
1.Teach you professional cnc router machine technology.
2.Provide you lifelong cnc router technology support service.
3.One year for the whole machine, lifelong maintenance.
4.Within 24 hours to solve the problem you're facing, high efficiency, high quality.
5.Network video communication and online telephone service in our work day.
6.Engineers always stand by at any time for going abroad for after sales service face to face if you need.
7.Completely service system on pre-sales, in sales, after sales, protecting customer's constantly working, equipped with easy learned installation guide, maintenance guide, instructions for use, etc.
Our factory

• Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. We have always been developed to the research and manufacturer of CNC router machine and laser cutting engraving machine.
• Our Philosophy: To Be First Brand -- CNC Manufacturer & wholesaler Platform!

• Just looking forward to service every customer, like you.
