Jinan Blue Elephant 1530 4 Axis Woodworking Vacuum Bed CNC Router Machine
Jinan Blue Elephant CNC Machinery Co., Ltd.- Type：Engraving Router
- Spindle Layout：Spindle Underneath
- Spindle Number：Single-Spindle
- Feed Mode：Mechanical
- Controlling Mode：CNC
- Certification：CE, ISO, SGS BV TUV
Base Info
- Model NO.：ELE1530
- Customized：Non-Customized
- Condition：New
- Color：Black
- Working Area：1300X2500mm,1500X3000mm
- Z Axis：200mm-700mm
- Spindle：Imported Italy Hsd Air Cooled Spindle
- Applications：Wood,Metal,Stone,Glass
- Software Computer：Artcam
- Table Surface：T-Slot and Vacuum Working Table
- Control System：Taiwan Syntec 6MB Control System
- Collet：Er20,Er25,Er30
- Transport Package：Plywood Box
- Specification：1500x3000x500mm
- Trademark：BLUE ELEPHANT
- Origin：Shandong, China
- Production Capacity：200 Sets,Months
Description
Description
Parameter
X,Y,Z Working Area
1500x3000x500mm
X,Y,Z Traveling Positioning Accuracy
±0.03/300mm
X,Y,Z Repositioning Accuracy
±0.03mm
The 4th axis
±90°
Table Surface
Vacuum&T-slot Table
Frame
Welded Structure,heavy duty T-structure
X, Y Structure
Helical Rack gear, Taiwan Hiwin/PMI Rail Linear Bearings
Z Structure
Taiwan TBI Ball Screw Taiwan Hiwin/PMI Rail Linear Bearings
Transmissin
X,Y rack & pinion drive,Z ball screw Transmissin
Max. Rapid Travel Rate
45000mm/min
Max. Working Speed
30000m/min
Spindle Speed
18000rpm/24000rpm
Spindle Power
4.5kw Italy HSD air cooling spindle
Working Voltage
AC 380V/50/60Hz,3PH or AC 220V/50/60Hz
Motor Drive
1000w YASKWA servo motor servo driver from Japan
control System
SYNTEC 4 axis control system
Software Compatibility
Type3 , Artcam ,UGS ,UcancamV9
Running Environment Temperature
0 - 45 Centigrade
Inverter
5.5kw Delta inverter

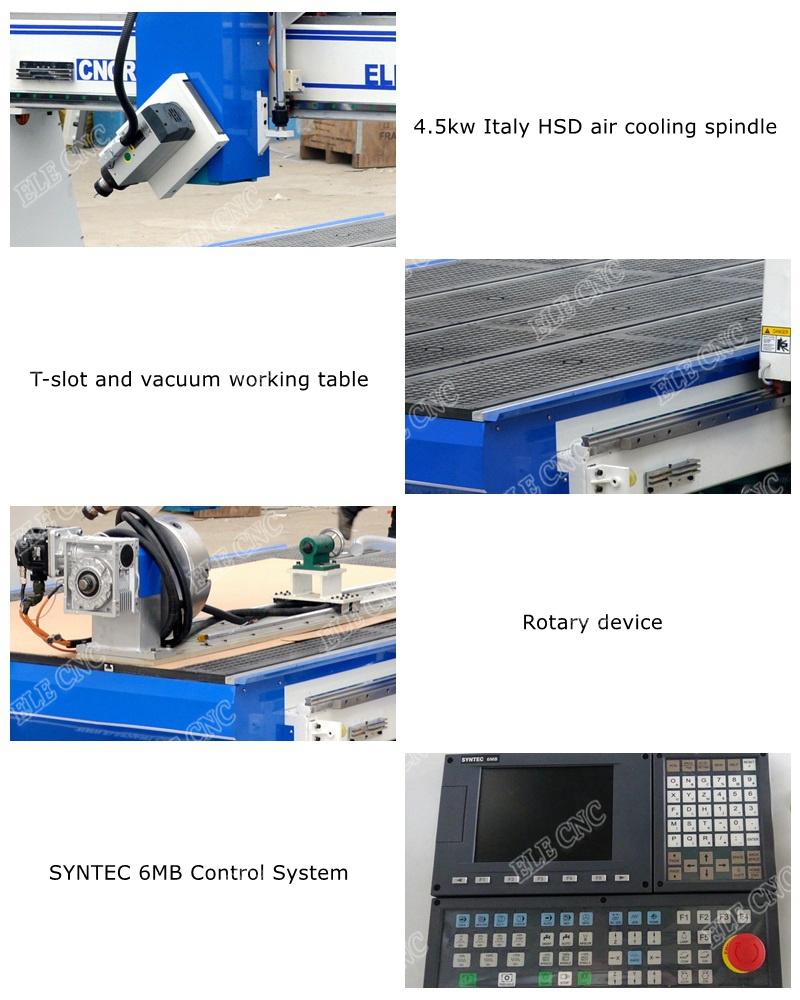

Details:
Applications
1. Wood furniture industry
Doors; Cabinets; Tables; Chairs.
Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising industry
Signage; Logo; Badges; Display board; Meeting sign board; Billboard
Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die industry
A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.
4. Artwork and Decoration
wood crafts; gift box; jewelry box
5. Others
Relief sculpture and 3D engraving and Cylindrical object.
Packaging & Delivery:
Packaging Details:
Three layers---
-The innermost layer is EPE pearl cotton film package;
-The middle layer is wrapping up with environmental protection material ;
-And the outermost layer is winding up with PE stretch film.
They're very environmentally friendly.
If you need a wooden box, we will make a wooden box outside the machine.
Delivery Detail: Shipped in 15 working days after payment.
Our Service:
1, Within 7days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered, operation disk/CD was included.
Company information:
Jinan Blue Elephant CNC Machinery, the professional cnc router and laser cutting machine manufacturer in China, include ATC CNC router, Wood CNC Router, Stone CNC Router, Metal CNC Router, EPS CNC Router, 4 Axis CNC Router, 5 Axis CNC Router, Plasma Cutting Machine, Laser Cutting and Engraving Machine and so on, which have passed the CE, SGS, ISO9001 etc. Our cnc routers are widely used for advertising, woodworking, mould, stone, metal industry.
