Woodworking Machinery

Home > Product > Wood Planer

Factory Supply Four Sided Wood Thickness Planer

Qingdao Zhongding Machinery Co., Ltd.
  • Type：Four-Side Planer
  • Working Depth：100-200mm
  • Working Width：20-230mm
  • Drivetrain：Feed Drivetrain
  • Enter Method：Mechanical
  • Motor Power：＞10Kw

Base Info

  • Model NO.：MB4023
  • Cutter Shaft：12
  • Spindle Speed：＞5000rpm
  • Process Type：Heavy Processing
  • Certification：CE, ISO
  • Transport Package：Plywood Case
  • Specification：2500*1800*1700mm
  • Trademark：ZD
  • Origin：China
  • HS Code：84659200
  • Production Capacity：2 Sets,Week

Description

Basic Info.

Model NO. MB4023 Cutter Shaft 12 Spindle Speed ＞5000rpm Process Type Heavy Processing Certification CE, ISO Transport Package Plywood Case Specification 2500*1800*1700mm Trademark ZD Origin China HS Code 84659200 Production Capacity 2 Sets/Week

Product Description

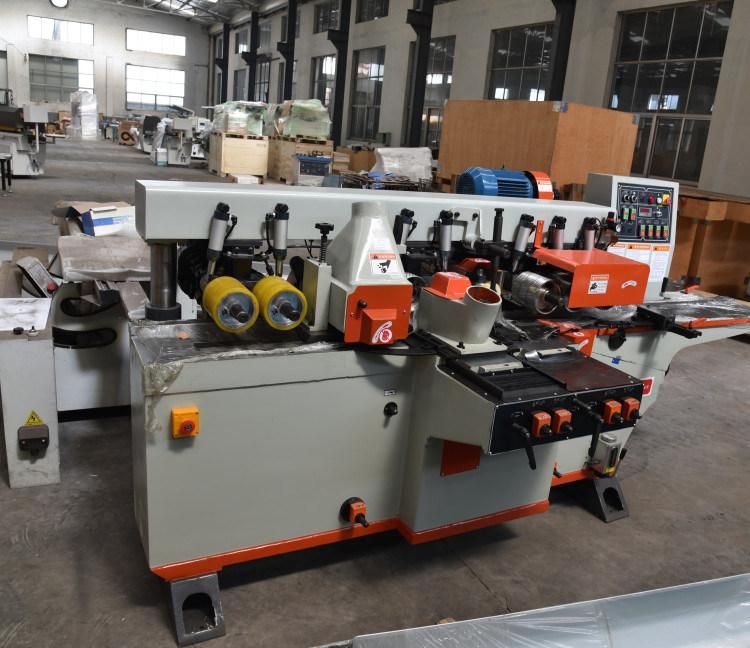

Factory supply four sided wood thickness planer

Factory Supply Four Sided Wood Thickness Planer




Technical Specification:

ModelMB4023
Working width20-230mm
Working thickness8-125mm
Feeding speed7-28m/min
Main spindle diameter40mm
Spindle rotation speed6000r/min
First bottom spindle power2.2kw
Right vertical spindle power2.2kw
Left vertical spindle power2.2kw
First top spindle power4kw
Beam lifting power0.37kw
Second bottom spindle power4kw
Total power36.25kw

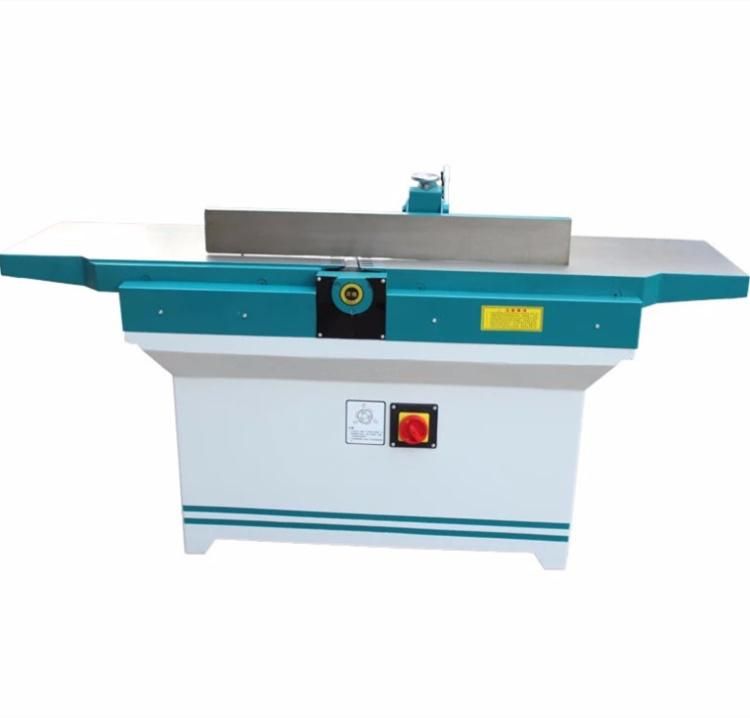

Surface planer:

Factory Supply Four Sided Wood Thickness Planer

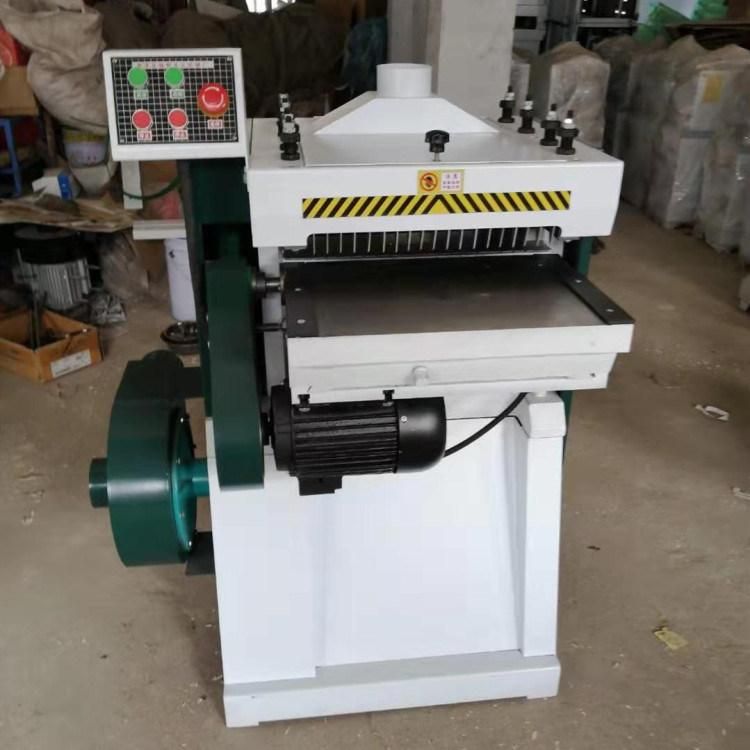

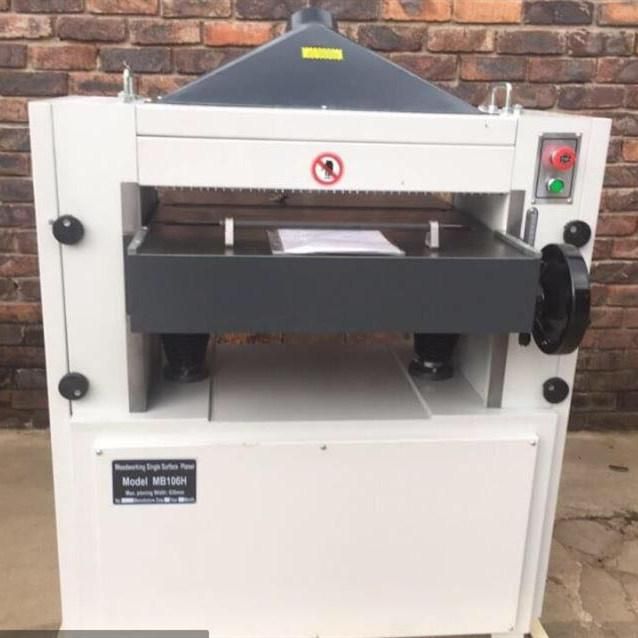

Thickness planer:
Factory Supply Four Sided Wood Thickness Planer


Double sided planer:
Factory Supply Four Sided Wood Thickness Planer


For more details, pls feel free to contact us.
