• Model NO.：JGBY214×8,10-15I
• Power Source：Electric
• Certification：CE, ISO, FDA
• Stroke：1050mm
• Into The Direction of Veneer：Crosswise
• Layers：15
• Weight：6500kgs
• Transport Package：Container
• Specification：4630mm*1340mm*2685mm
• Origin：Shandong. China
• HS Code：8419320000
• Production Capacity：20sets,Month

Basic Info.

Model NO. JGBY214×8/10-15I Power Source Electric Certification CE, ISO, FDA Stroke 1050mm Into The Direction of Veneer Crosswise Layers 15 Weight 6500kgs Transport Package Container Specification 4630mm*1340mm*2685mm Origin Shandong. China HS Code 8419320000 Production Capacity 20sets/Month

Product Description

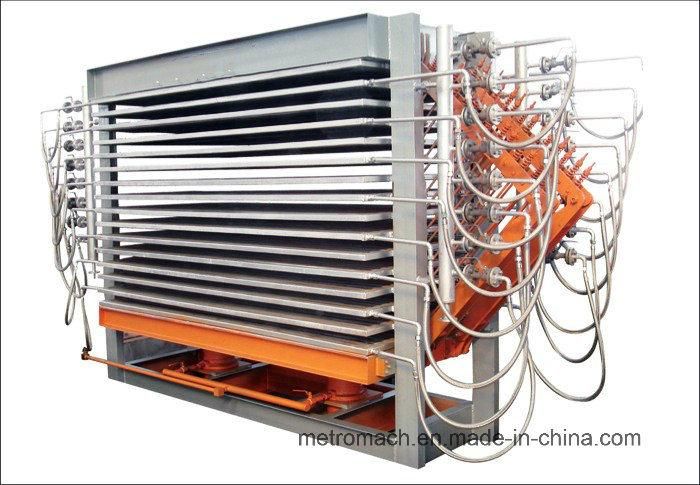

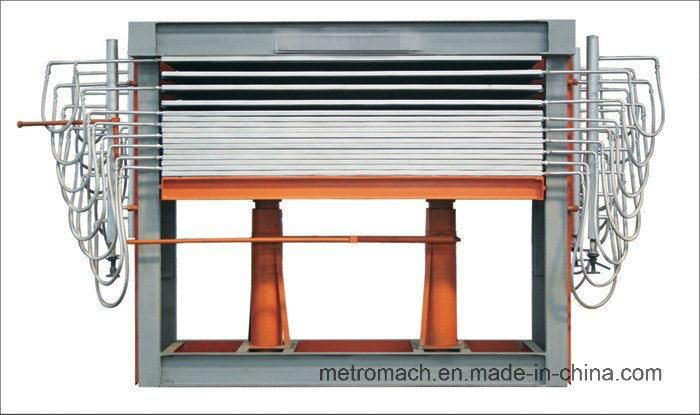

Core Veneer Dryer Machine Characteristics:
1.Used for drying and leveling the core plate;
2.Adopting heat conducting oil heating, equipped with high quality plunger cylinder, metal hose and seamless steel pipe hot pressing plate;
3.Reasonable design, smooth opening and closing, simple operation, short drying cycle, high efficiency, flat slab;
4.With simultaneous closing mechanism, the closing is fast and the production efficiency is high.
We can customize products according to customers' needs.

The Reasons of Choose us:
1.Multiple models are available and good price.
2.30years of industry experience, trustworthy.
3.Strength manufacturers, support inspection.
  Product Details :

Model	JGBY214×8/10-15I
Nominal pressure	100KN
Layers	15
Layer spacing	70mm
Hot platen	16pcs
Hot platen size	2800×1340×38 mm
Number of plunger cylinders	2pcs
Dia of cylinders	180mm
Stroke	1050mm
Pressure	<6.3Mpa
Clossing time	20s
Low pressure pump flow	140L/min
Power	5.5kw-4P
Weight	6500KGS
Overall size	4630×1340×2685mm

Q&A:
Q1:How many years experience does your company have in manufacture and exporting?
A1:Our company have 30 years manufacturing experience and 13 years exportingexperience
Q2:Where is your factory located in?
A2:We are located in Linyi city,Shandong province,Cina.
Q3:How can we go to visit your factory?
A3:There are fights/long-trip bus/train from Beijing, Shanghai, Guangzhou, Shenzhen city etc to Linyi city.
Q4:Which seaport you export from?
A4:We mainly exportmachines from Qingdao city, sometimes also from Shanghai etc.
Q5:Terms of payment?
A5:L/C  T/T     If you have any questions, you can contact us.
Q6:How to solve the after-sales problem?
A6:We can provide online guidance, and the company have professional overseas teams to help solve problem.

Our Services:
Pre-sales service:
Inquiry and consulting support.
Quotation service.
View our Factory.
Helpping you purchasing other goods is available.

After-sales service:
Training how to install the machine, training how to use the machine.
Engineers available to service machinery overseas.
We can provide the production process of particle board.

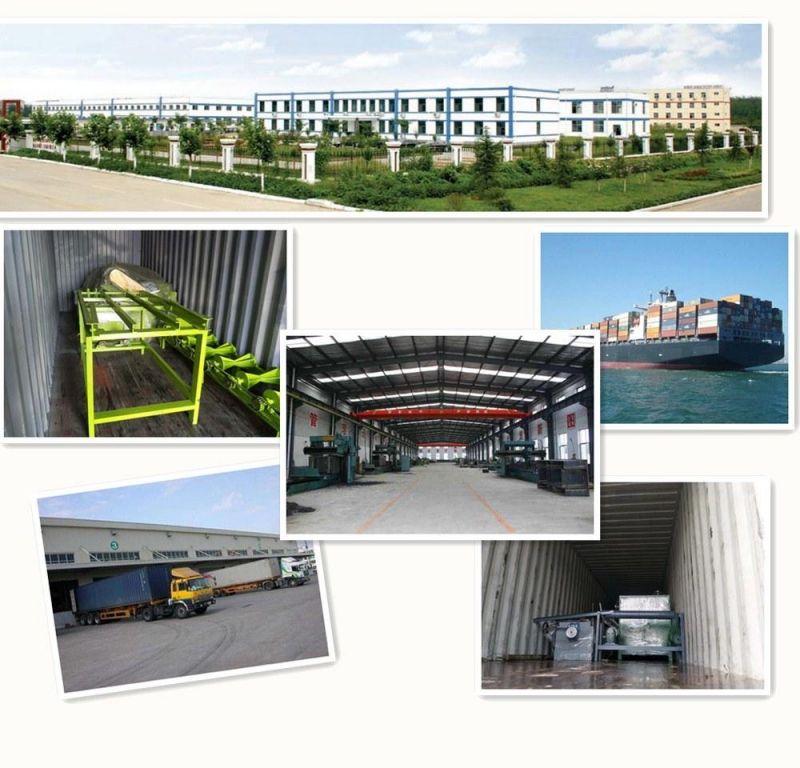

Company Profile:
Linyi Metro Machinery Co., Ltd was founded in 1989 year, the earliest and biggest professional manufacturer of all kinds of wood-based panel machinery.

Our featured products include:

1. Face veneer rotary peeling production line.

2. Face veneer slicer peeling production line.

3. Plywood complete production line.

4. Particleboard / chipboard production line.

5. MDF/HDF production line.

6. Melamine lamination hot pressing line.

7. LVL complete production line.

We have two factories and one exporting company(Linyi Metro Int'l Trading Co, Ltd), our machines are widely used in more than 100 countries and helped customers to produce top quality wood based panels and occupy the good market.

We can design and manufacture all specifications machines to meet customers' production demand, professional after-sales team consisted of 20 rich experienced engineers are ready for any countries for machines installation and debugging service.

Welcome to visit our company, we will try our best to support your company.
