Automatic Complete Particle Board Production Line

Linyi Sin San Lin Smart Machinery Co., Ltd.
  • Certification:CE, ISO, FDA
  • Controlling Mode:CNC
  • Transport Package:Standard Export Packing
  • Specification:Particle board, osb, chip board
  • Trademark:METRO
  • Origin:Shandong, China

Base Info

  • Model NO.:BY2X4,8
  • HS Code:8465990000
  • Production Capacity:50set,Year, 30000cmb,Year~50000cmb,Year

Description

Basic Info.

Model NO. BY2X4/8 HS Code 8465990000 Production Capacity 50set/Year, 30000cmb/Year~50000cmb/Year

Product Description

Automatic Complete Particle Board Production LinePB line based on wood as raw materials, shavings, glue, auxiliary equipment, hot pressed density 550-750kg / M 3 man-made sheet. It has a fine smooth surface structure of the core layer gradient, and has good heat insulation, sound insulation and good machining properties, is widely used in manufacturing furniture, high-end cabinets, speakers, and other interior construction and transport. We produce an annual output of 30000-60000 cubic meters of particle board equipment, in a dry, auxiliary equipment, hot press has done a great section in the technical modifications, reduce investment, improve the quality of the products.

 1) Chip preparation section
 Raw material is reduced into qualified chips by the drum chipper, then the chips are transported to the chip bin, and then feed to the knife-ring  flaker by which the chips are turned to flakes,then the flake stored in wet flake bin


2) Drying and sifting section
The flskes discharged from the wet flake bin are conveyed to the rotary dryer. Qualified core flakes are stored in core flake bin; oversize flakes are send to mill to be re-crushing, and transported to surface flake bin.

3) Forming and hot-pressing section
The surface and core flakes are sent into classi-forming machine, and forming on the mat conveyor uniformly. After process of metal remover , pre-press, lengthwise saw, cross saw, accelerate conveyor,scaling conveyor , storing conveyor and loading conveyor,mats are transported to carrier and then to hot pressing. Rough boards after pressing are pushed to unloader via pallet.

4) Cooling and sizing section
The rough board is conveyed to star-cooler for cooling ,then the rough board goes through side trimming saw and become a qualified particle-board, stacked on the hydraulic lift.

5) Sanding section
The board are sanded,checked and stored.
PLC control is used in mat-forming section.

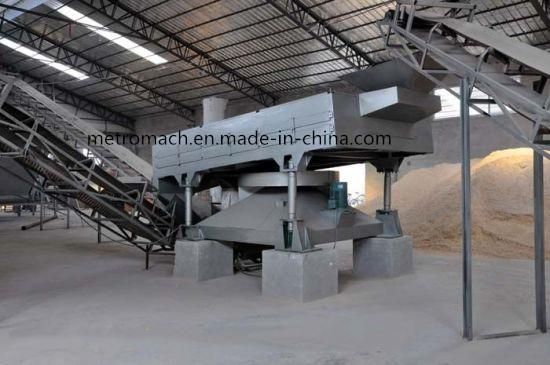

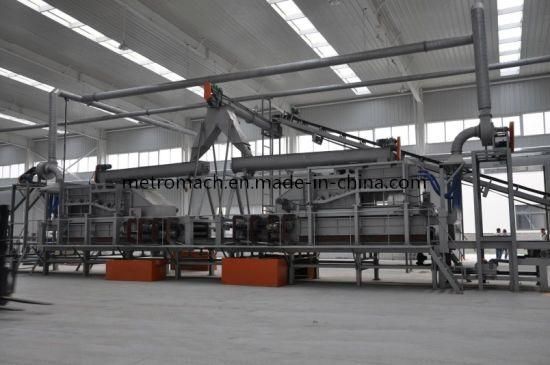

More pictures:
Automatic Complete Particle Board Production Line
Automatic Complete Particle Board Production Line
Automatic Complete Particle Board Production Line

Q&A:
1. Q: Are you a factory or a trading company?
A: We are a factory who manufacture the machine by ourself. We have 3 factories and 1 trading company.
2. Q: What is the delivery time?
A: Normally will be 20 days after getting deposit or original LC.
3. Q: What is the maintenance period? What kinds of after-sale service do you support?
A: 1 year after delivery. We supply telephone after-sale service, video service and e-mail service. If can not deal with the problem, our tech-staff will go abroad to service.
4. Q:What is the payment terms?
A:a.T/T(30% deposit, 70% before delivery in FOB or 70% paied against copy of B/L in CFR)
b. 100% irrevocable L/C at sight.
5. Q: Can we visit your factory?
A: Welcome to visit us! Everyday we have customers from different countries. By now, we have exported to more than 20 countries customer.
Our services:
1.We will send our engineer under your indications to  your  factory  for  installing,  debugging  and  maintaining,  you only need to afford the cost of the flights, and  the engineer's accommodation .
2.If you are experienced in installing jobs,  we will provide ongoing  technical support for you.
Guarantee time for the main parts of the machine will be 12 months, in this period, if the machines itself  have the problem, we will freely maintain it, but not including the problem caused by the wrong or rough operation.
3.The buyer sends people to seller's factory for study:
one month and one person. The buyer should pay for the round air fare, and the seller arrange for food and accommodation, and the service including: the machine's fixing, debugging, operating, maintaining.
4.After the warranty, we can also supply the engineer service and the technical service, but  you need to  pay  the salary for the engineer! and afford the cost of the replaced aparts yourself. More service, you can get by send us an e-mail or a fax.
