• Model NO.：table-moving cnc woodworking center RJ1325
• Customized：Customized
• Condition：New
• Color：Iron Grey
• Transport Package：Platte
• Specification：1300x2500mm
• Trademark：table-moving cnc woodworking center RJ1325
• Origin：Shandong Jinan
• HS Code：8465990000
• Production Capacity：50000pieces Every Year

Basic Info.

Model NO. table-moving cnc woodworking center RJ1325 Customized Customized Condition New Color Iron Grey Transport Package Platte Specification 1300x2500mm Trademark table-moving cnc woodworking center RJ1325 Origin Shandong Jinan HS Code 8465990000 Production Capacity 50000pieces Every Year

Product Description

Features
welded structure by thick profiled , stablized under high temperatures, ensures minimum distorttion, excellent rigidity and powerul strength .
the install of vertical and horizontal drill and saw which can rotary 90° ·makes the machine a complete woodworking centre in doors making . configure of imported carrousel tool magazine  makes the process of tools changing rapid and accurate .
the special tool sensor  enables the machine compensate the tolerance of the tool length acurately.
japan yaskawa servo motor, high precision helicalrack ,ensures the machine run stably with low noise, fast speed, and high adsorption power,
strong dust collection system , one tuch can  finish the periodic maintenance.
optional germany imported horizontal transform head, realize side processing.
applications
the machine is suite for doors and cabints processing . also it can be used for the flat engraving, cutting and 3d relief carving of wood and MDF
 description  : RJ-1325
working area (x * y * z ) 1300x2500x230mm
max travelling speed : 60000mm/min
max engraving speed : 25000mm/min
reposition : +0.1mm/min -0.1mm/min
fixing method : vaccuum table and T-slot
spindle motor : italy hsd 9kw air cooling
spindle speed : 6000-24000 rpm
drill group : italy drills group axis05cl
90° rotatable saw : italy 90° rotative saw
transmission : x axis grade 6 precissin helicalrack . y. z axis imported ball screw
control system : syntec control system from taiwan
motor/driver : japan yaskawa servo system 1.3kw
working voltage : AC  380v/ 50HZ

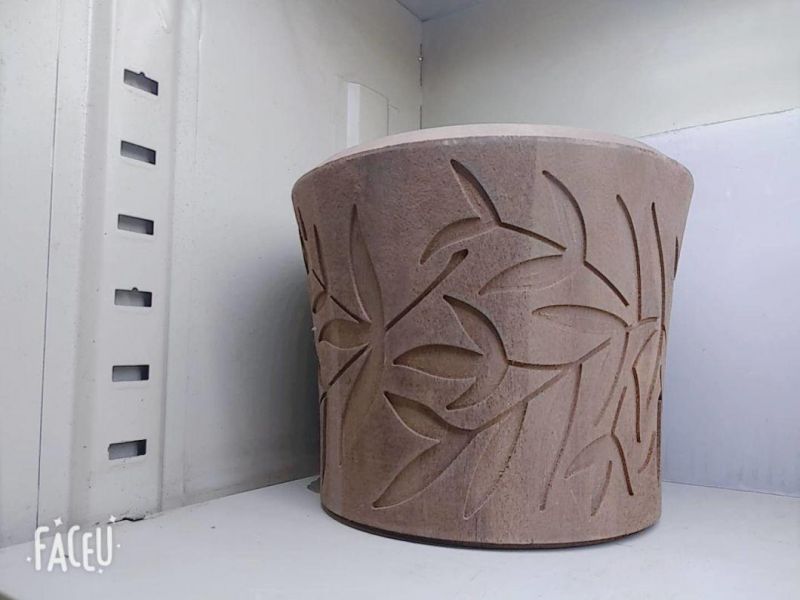

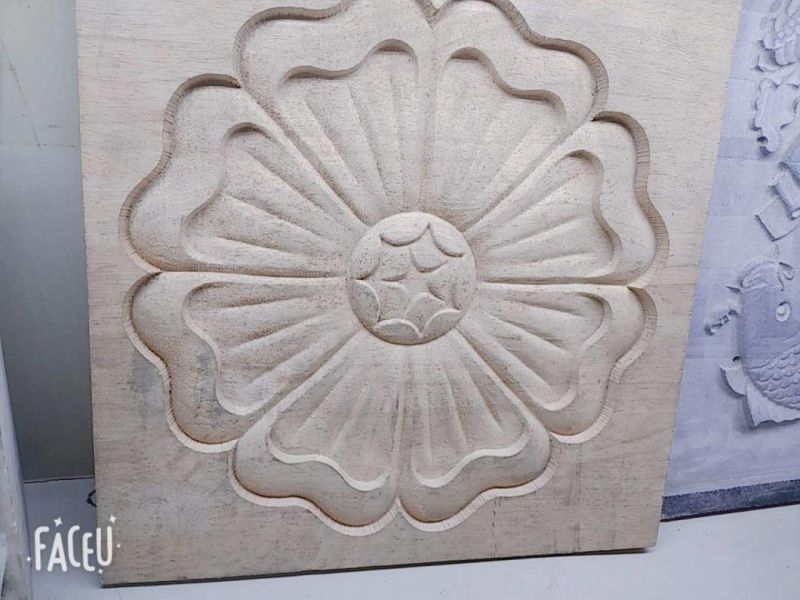

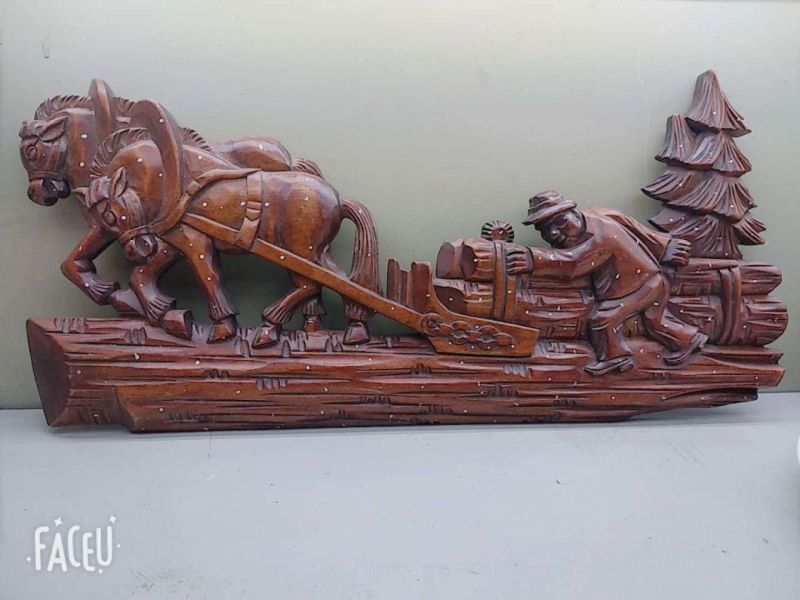

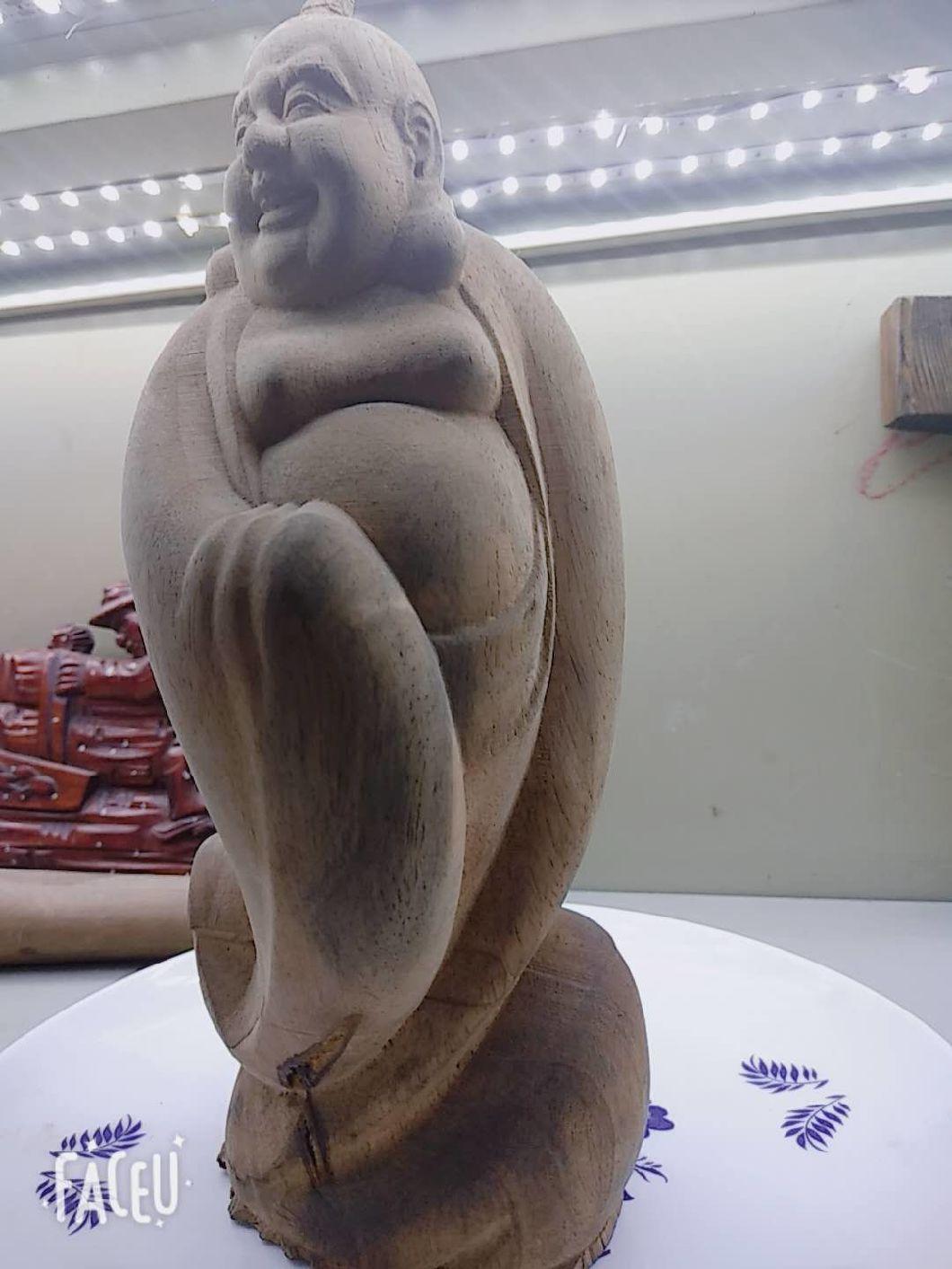

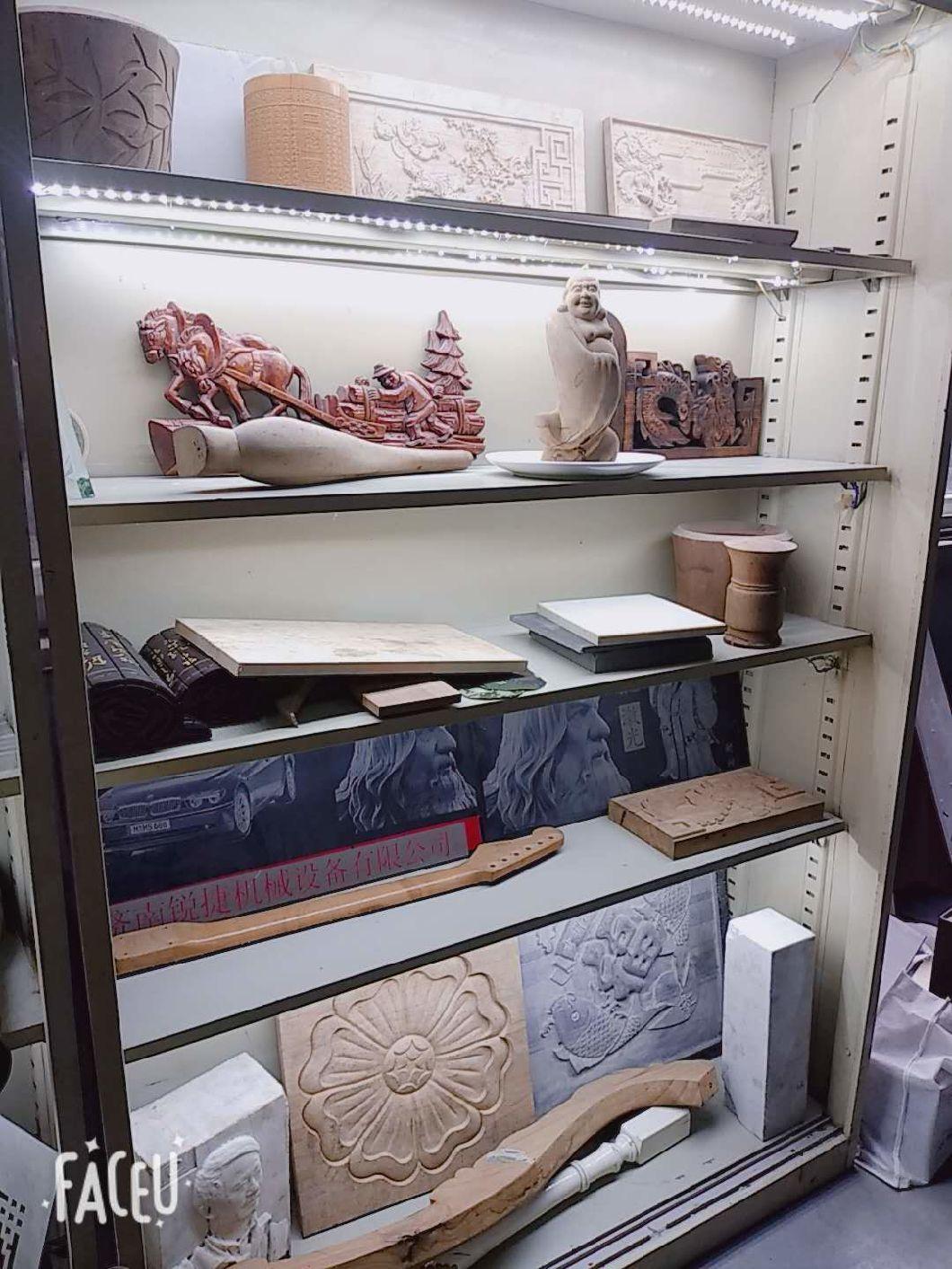

samples
