Woodworing CNC Router
SHANDONG RUIJIE CNC TECHNOLOGY GROUP CO., LTD.- Condition:New
- Certification:ISO, CE
- CNC or Not:CNC
- Voltage:380V
- Transport Package:Platter
- Specification:1500*3000mm
Base Info
- Model NO.:woodworking cnc router RJ1325
- Trademark:woodworking cnc router
- Origin:Shandong Jinan
- HS Code:8465990000
- Production Capacity:50000pieces Every Year
Description
Basic Info.
Model NO. woodworking cnc router RJ1325 Trademark woodworking cnc router Origin Shandong Jinan HS Code 8465990000 Production Capacity 50000pieces Every YearProduct Description
Featuresadopt domestic 5.5 kw ATC water coling spindle of large power ( option : italy 9.0 kw hsd air cooling spindle)
high accuracy , long service time ,steady and smooth movement and ood starting performance ,great torque,fulfing the advantage of working with fast speed and high accuracy.
japan yaskawa servo motor ensures machine to run with fast sped , low noise, and high position acuracy.
unique auto tool changer system can change tool alternatively , special tool sensors to compensate the tolerance of tool length
tool magazine standard capacity of tools ,(opton: more tha 8 tools). chngng tools only take 8 seconds.
applications:
wood industry : stereo wave plate procssing , cabinet doors , solid wood doors, craft wood door,paint free door, folding screen, craft window, shoe-cleaning , game cabinet, mahjong table, omputer table, and panel -tpe furnitures assistance processing.
mold industry : engrave on material like brass, al, and iron to make metal mold. and it can engrave on artificial marbe ,gravel , plastic board ,pvc pipes , wood , and alike non-metal mold.
other industry : engrave all kinds of image engraving and relief engraving . t is windely used n art & craft industry.
technical parameters
desciption | RJ1325 side linear ATC |
working area (X*Y*Z) | 1300x2500x300mm |
max travelling speed | 60000mm min |
max engraving speed | 25000mm min |
transimission | x,y axis high precision rack gears z axis imported ball screw |
x,y,z guide ails | HI WIN square rail (optional german) |
acuracy | — 0.08 300mm +0.08 300mm |
control system | dsp control system |
spindle motor | 5.5 kw domestic water cooling |
spindle speed | 6000 -24000rpm |
tool magaine ad tools no. | side linear ,8 tools |
tool diameter | |
fixing method | T - slot aiuminum & vacuum absorption |
motor driver | japan yaskwa servo system 850w |
samples

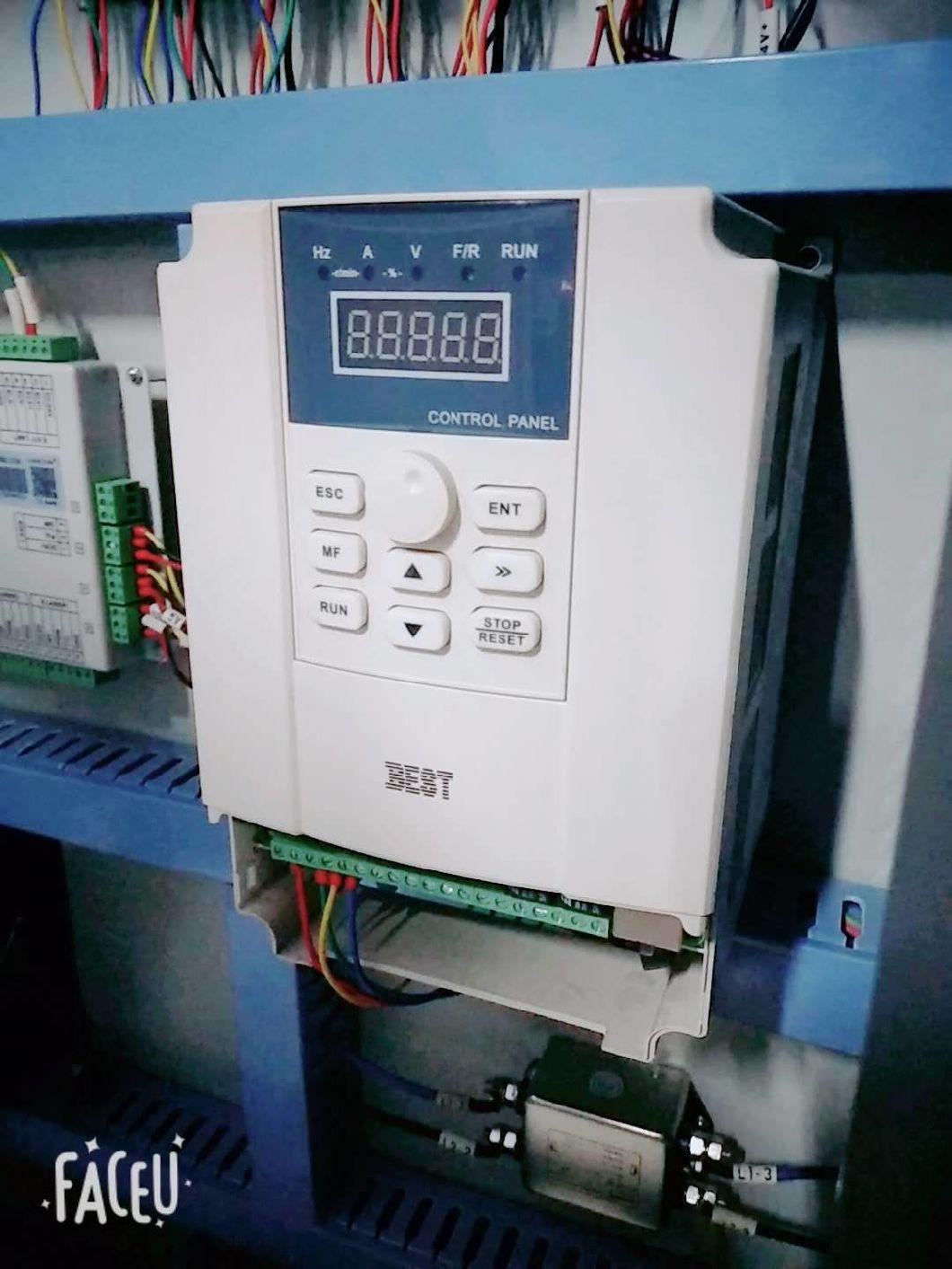

The model of the frequency converter is bayside, 220v 3000w

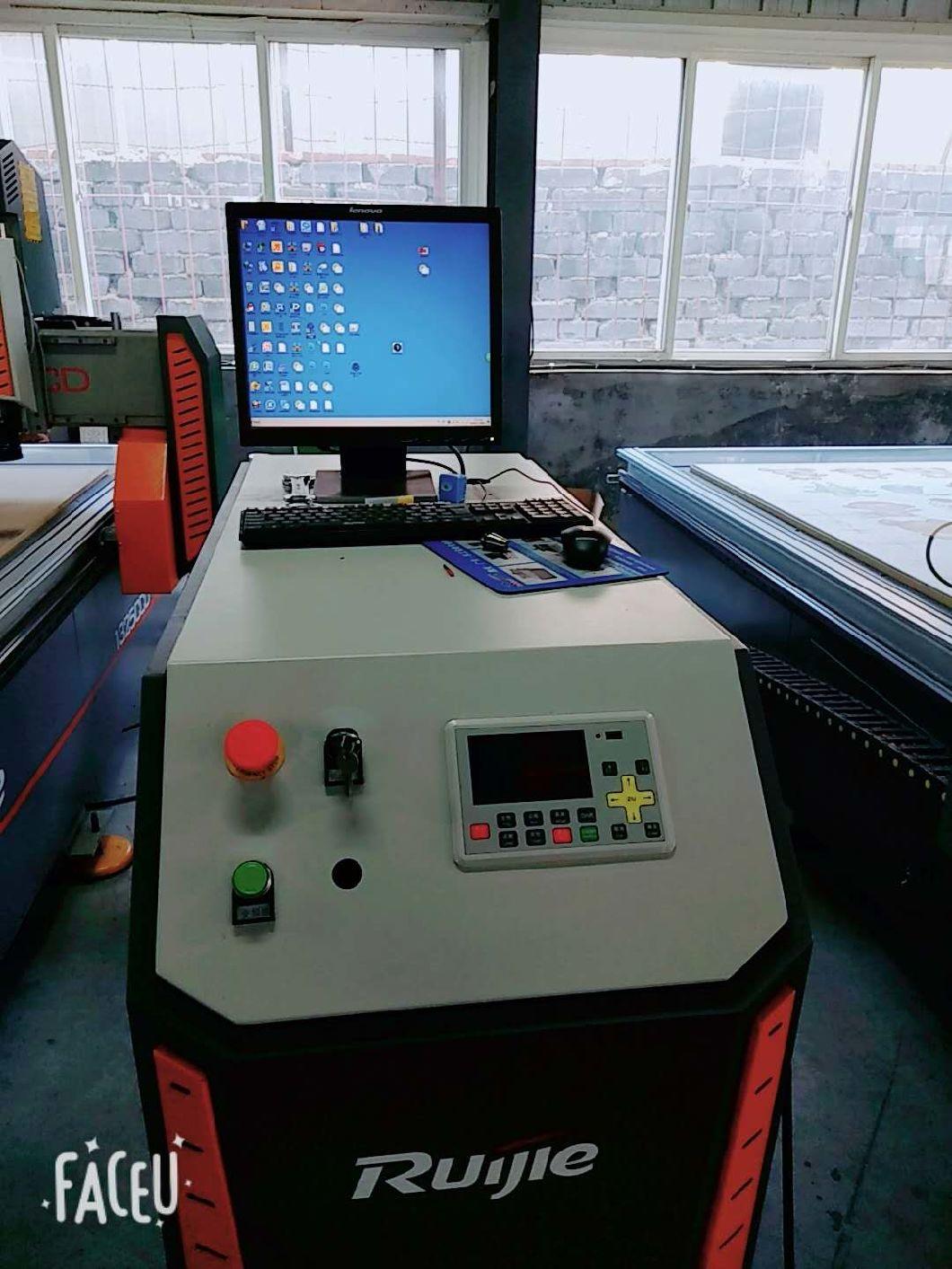

The control system has two modes, computer and panel

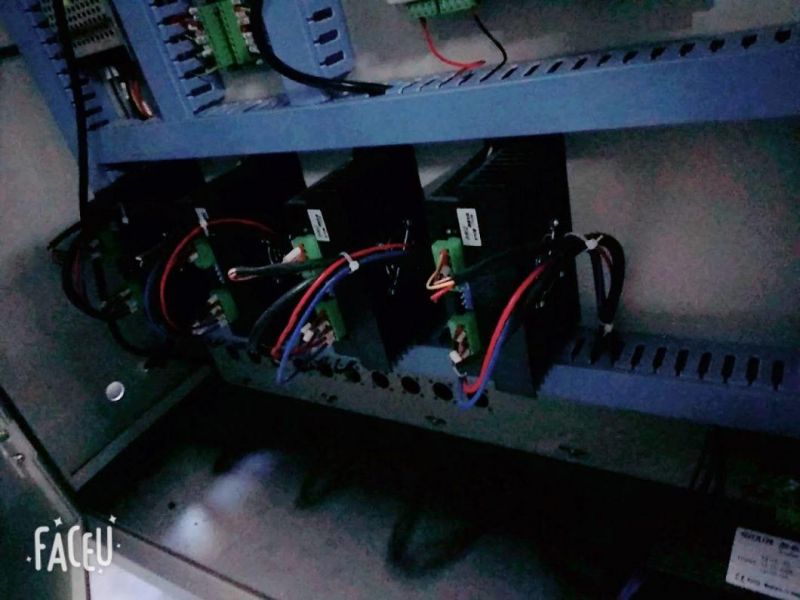

There are four drives, the model is Reese, 24v

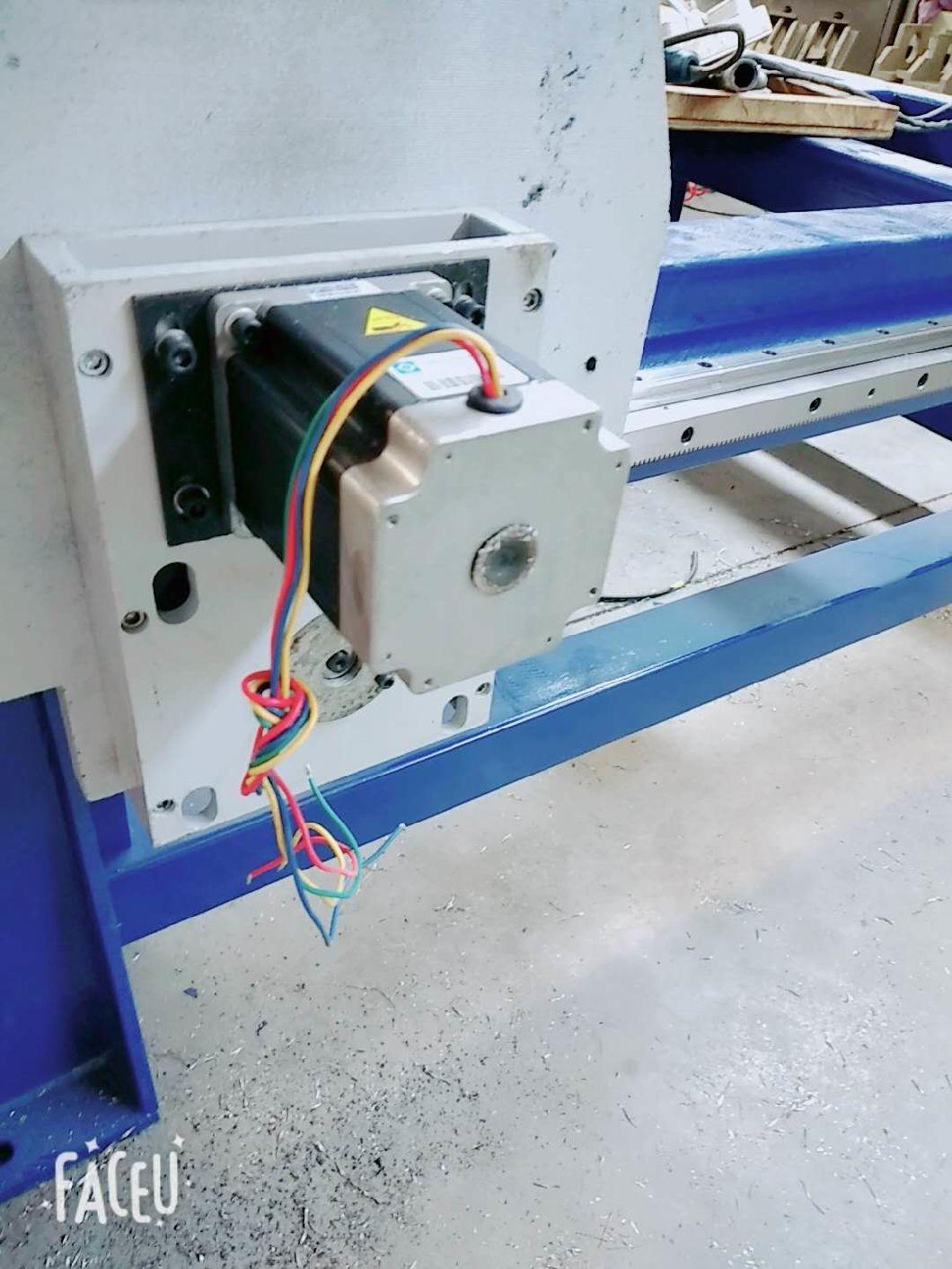

The motor model is 450B

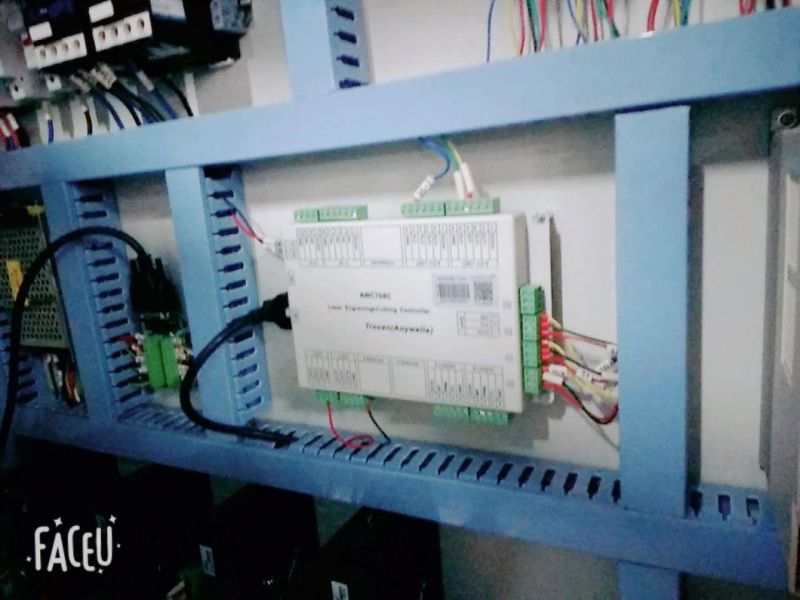

The controller is mainly to control the operating system, the model is Weihong

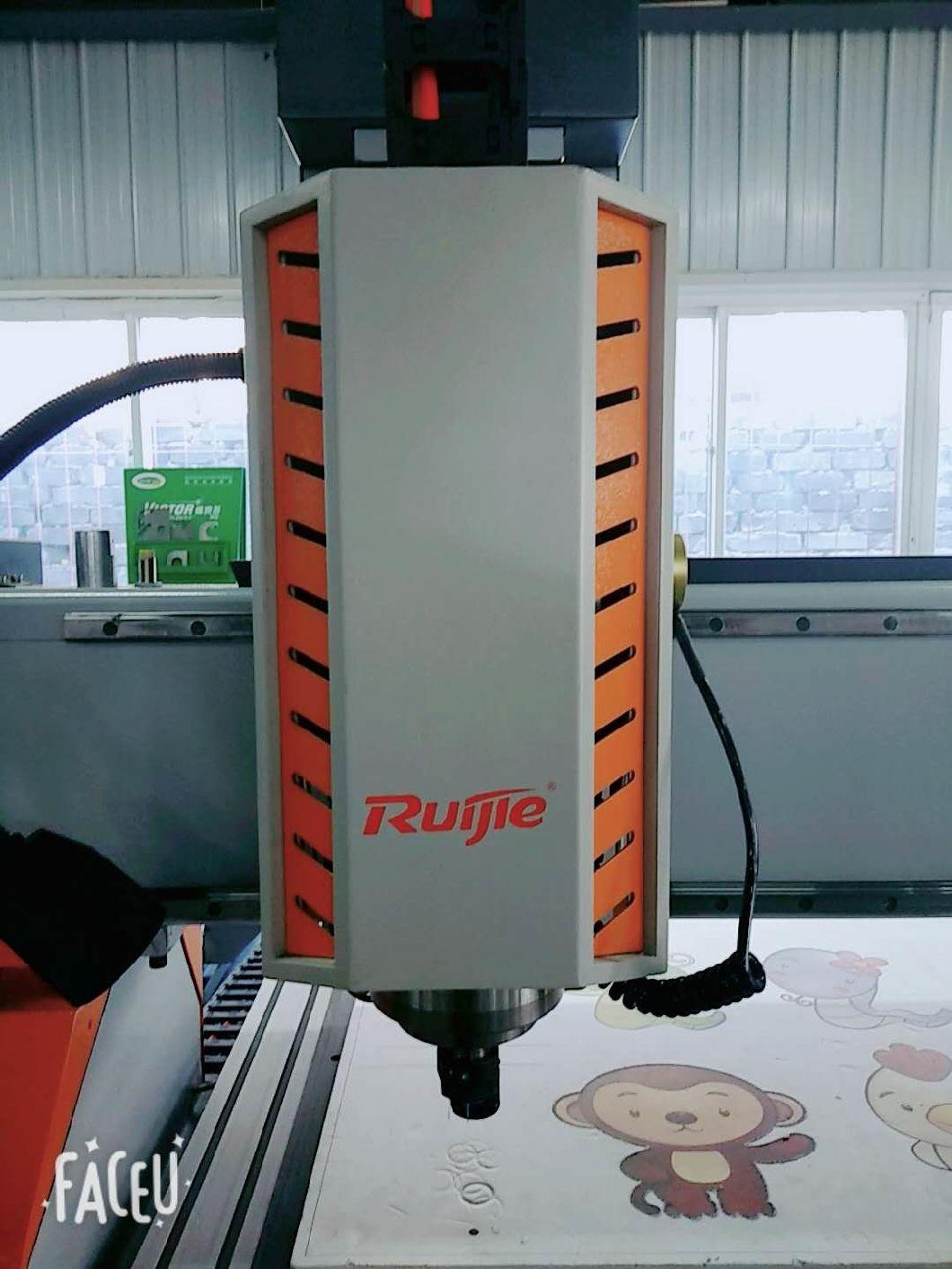

Spindle is air-cooled
