Full Automatic Commercial Edge Banding Machine Mfz518A Woodworking Machine/ Newest Wood Cabinet Door Multi Function Edge Bonder Machine

Qingdao Xinlihui Machinery Co., Ltd.
  • Function：Pre Milling, Gluing, Edge Banding, End Trimming, Rough Trimming, Fine Trimming, Contour Tracking, Scraping, Buffing, Slotting
  • Type：Linear Edge Banding Machine
  • Edging thickness：0.4-3mm
  • Automatic Grade：Automatic
  • Panel Feeding Speed：20m,min
  • Certification：CE, ISO, FDA

Base Info

  • Model NO.：MFZ518A
  • Panel Thinkness：10-60mm
  • Min.length panel：160mm
  • Min.width panel：80mm
  • Manufacturing Principles：Glue Tank Underneath
  • Customized：Customized
  • Machine Item：Automatic Wood Edge Banding Machine
  • About Agent：Look Forward Agent
  • Machine Painting Color：Be Made According to Your Need
  • Price：Our Most Favorable Price for You
  • Air Pressure：0.7MPa
  • Voltage：380V,50Hz 3phase
  • Total Power：10.19kw
  • Weight：2500kg
  • Warranty：1 Year
  • After-Sales Service Provided：Engineers Available to Service Machinery Overseas
  • Transport Package：Standard Package, Be Made According Cutomer Need
  • Specification：5250*1100*1600mm
  • Trademark：XINLIHUI Automatic Wood Edge Banding Machine
  • Origin：Qingdao City
  • HS Code：84659100
  • Production Capacity：100,Week

Description

Panel thickness10-50mmEnging thickness0.4-3mmMin.Width of panel≥80mmMin. Length of panel≥160mmMax.size of tape higher than panel(each side )2mmPanel feeding speed≤15.5mm/min(variable speed)Pneumatic power0.7MpaPower380V 3N/PE 50HzPanel feeding motor1.5KWGlue axis motor0.75kwEdge-cutting motor3kw*2 200Hz  12000r/minRough triming motor1.1kw*2 200Hz 12000r/minFin trimming motor0.5kw*2 200Hz 12000r/minBuffing motor0.25kw*2 50Hz 2800r/minHeating power of gle tank2.5KWSecondary heating power0.12KWLnstalled power9.57KWTotal current19.13AGlue temperature fo readging (reference)180-200ºCOverall dimensions5250*1100*1600mmWeight≈2300kg

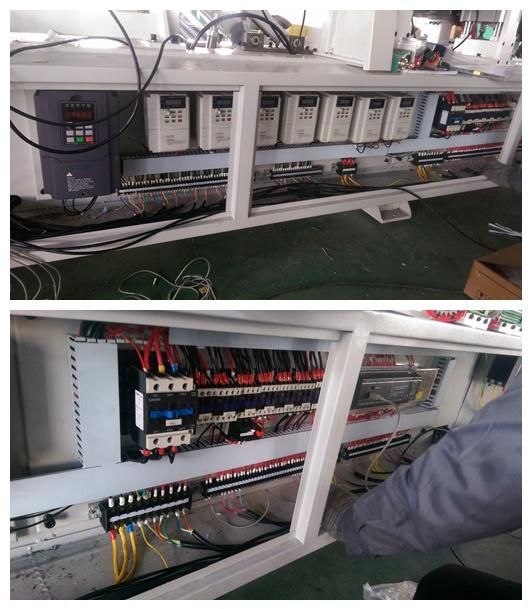

3, Detail machine working process pictures for you

Full Automatic Commercial Edge Banding Machine Mfz518A Woodworking Machine/ Newest Wood Cabinet Door Multi Function Edge Bonder Machine

Full Automatic Commercial Edge Banding Machine Mfz518A Woodworking Machine/ Newest Wood Cabinet Door Multi Function Edge Bonder Machine
Full Automatic Commercial Edge Banding Machine Mfz518A Woodworking Machine/ Newest Wood Cabinet Door Multi Function Edge Bonder Machine
Full Automatic Commercial Edge Banding Machine Mfz518A Woodworking Machine/ Newest Wood Cabinet Door Multi Function Edge Bonder Machine
Full Automatic Commercial Edge Banding Machine Mfz518A Woodworking Machine/ Newest Wood Cabinet Door Multi Function Edge Bonder Machine
