• Model NO.：2.5*10*150mm
• Application：Wood Saw Machine, Wood Lathe
• Co：10%
• Wc：90%
• Hardness：91.5hra
• Density：14.6g,cm3
• T.R.S：2860MPa
• Surface：Only Sintered
• Transport Package：25kg. Carton
• Specification：YL10.2
• Trademark：ZZUP
• Origin：Zhuzhou, Hunan, China
• HS Code：820900100
• Production Capacity：10000000PCS,Month

Basic Info.

Model NO. 2.5*10*150mm Application Wood Saw Machine, Wood Lathe Co 10% Wc 90% Hardness 91.5hra Density 14.6g/cm3 T.R.S 2860MPa Surface Only Sintered Transport Package 25kg. Carton Specification YL10.2 Trademark ZZUP Origin Zhuzhou, Hunan, China HS Code 820900100 Production Capacity 10000000PCS/Month

Product Description

YL10.2 2.5*10*150mm only sintered high resistance tungsten carbide strips
YL10.2 2.5*10*150mm only sintered high resistance tungsten carbide strips

Specifications
The tungsten carbide strip has the characteristics of high red hardness, good weldability, high hardness and high wear resistance. It is mainly used in the production of solid wood, MDF, gray cast iron, non-ferrous materials, chilled cast iron, hardened steel, PCB, brake material. When using, select the appropriate material of the carbide strip according to the purpose.
1. Grade: YL10.2  10% Co,90% WC
2. YG8,YG6,YG10,YG15,YG20,YG25,YL10.2,YS2T,YG6X etc all kinds of grades for your choose.
3. Can product customize sizes and shape.

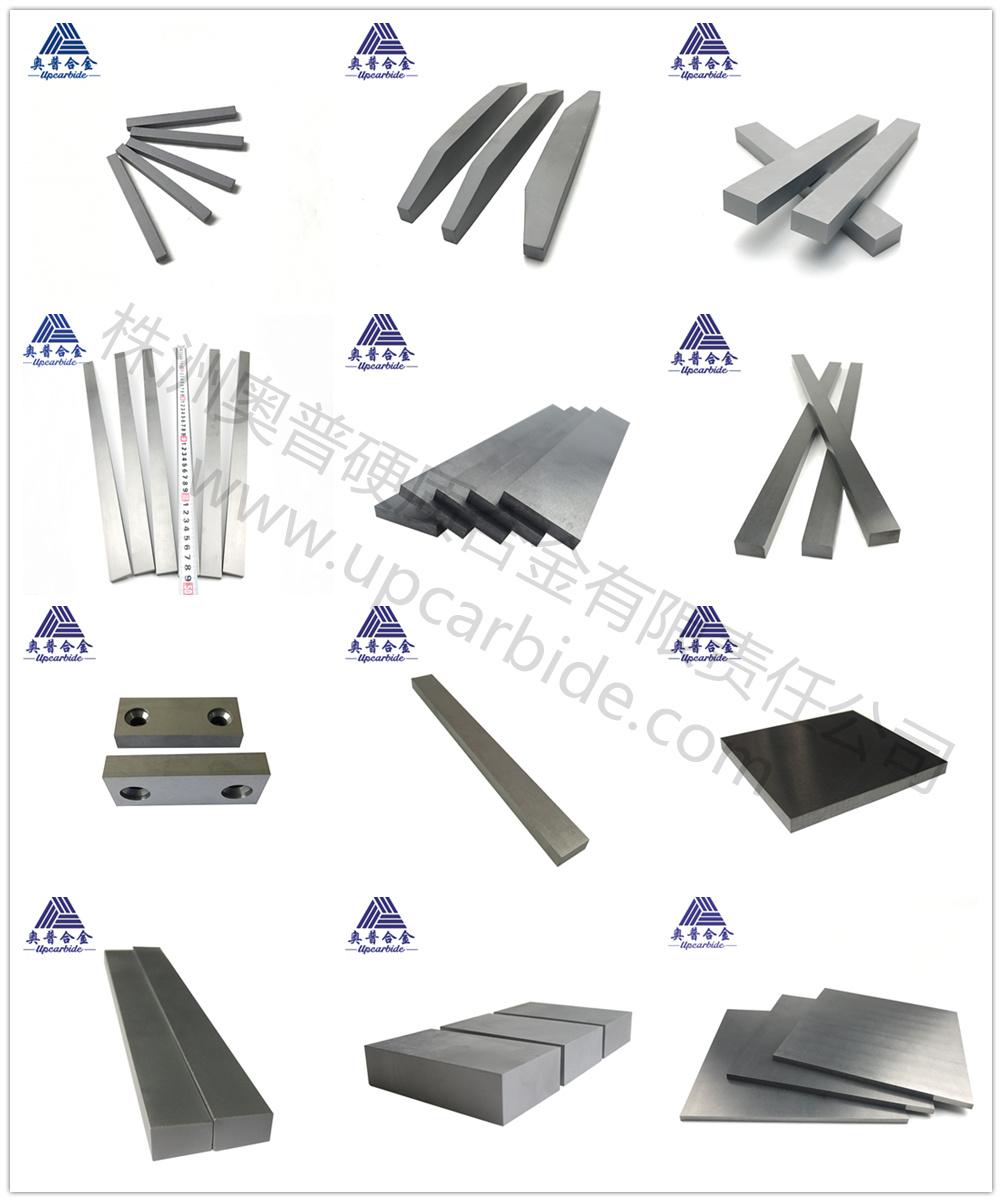

 Products Show






 Grades choosing

Grade	Density g/cm3	Hardnes HRA	T.R.S Mpa	Performance&application recommended
YG6A	14.85	92.5	2000	Fine grain alloy,good wear resistance.it is suitable for manufacturing forming cutter,wear-resistant parts etc.
YG8	14.7	89.8	2800	High bending strength,wear resistance lower than YG6A, suitable for manufacturing cutter ,wear-resistant parts etc.
YG11	14.4	88.5	2900	High bending strength,wear resistance lower than YG6A, suitable for manufacturing cutter ,wear-resistant parts etc.
YG15	14.0	87.0	3000	Suitable for manufacturing punching dies, wear-resistant parts.
YG20	13.5	85.5	2800	High bending strength,suitable for manufacturing progressive dies and other punching dies.
YG25	13.1	81.5	2950	High bending strength,wear resistance lower than YM6A, suitable for manufacturing cutter ,wear-resistant parts etc.
YS2T	14.25	92.0	2500	Fine grain alloy, with high wear resistance, bending strength, bonding resistance and thermal strength. it is suitable for machining refractory alloys,stainless steel, high manganese steel, etc.

Other grades and sizes can be offered as per customers' requirements




Sizes choosing

L(mm)	W(mm)	H(mm)		W(mm)	T(mm)	L(mm)
800	800	10~80		100	100	6~80
600	600	10~80		100	50	6~80
300	200	10~80		100	45	6~80
200	200	10~80		80	55	6~80
200	20	10~80		80	40	6~80
150	150	6~80		70	35	6~80
150	130	6~80		45	25	6~80
150	100	6~80		35	19	6~80
150	80	6~80		20	20	6~80
120	120	6~80		18	12	6~80
105	105	6~80		....	....	....

1. Advising HIP sintered for the plate which the thickness more than 10mm.
2. Before delivery to you,all plates were detected by no damage ultrasonice,Keeping the plates all are no blister,no pore,high density & strength,impact resistance and long working life. 3.We can rough grinding and grinding the board surfaces.

Packing details






Shipping ways

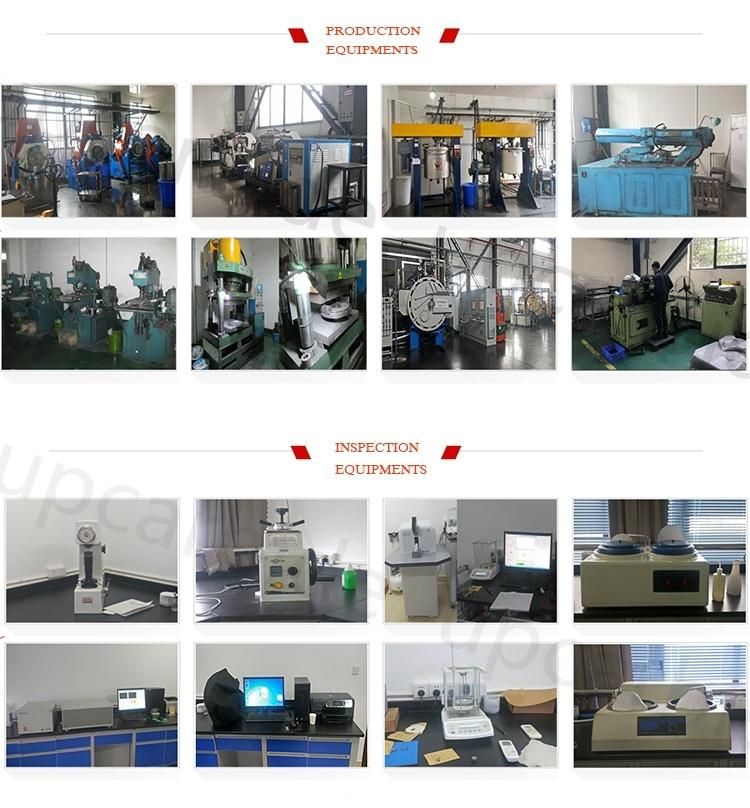

Production process
