• Model NO.：HBQS1815,450AHK
• Veneer Thickness：0.5-7mm
• Peeling Speed：30-120m,Min
• Control：PLC Control
• Color：Customized
• Voltage：380V
• Precision：High Precision
• Setting Mode：Floor-Type
• Transport Package：Container
• Specification：4700*1800*1500mm
• Trademark：METROMACH
• Origin：Linyi, China
• HS Code：8465960000
• Production Capacity：1000sets,Year

Basic Info.

Model NO. HBQS1815/450AHK Veneer Thickness 0.5-7mm Peeling Speed 30-120m/Min Control PLC Control Color Customized Voltage 380V Precision High Precision Setting Mode Floor-Type Transport Package Container Specification 4700*1800*1500mm Trademark METROMACH Origin Linyi, China HS Code 8465960000 Production Capacity 1000sets/Year

Product Description

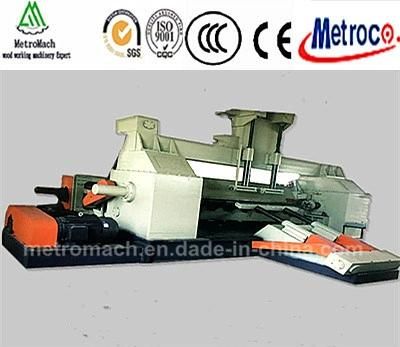

Product DescriptionHard Wood Veneer Peeling Machine1. Features
1.Spindleless veneer peeling machine is used for make veneer .
2.And it is suitable for the eucalyptus, pine, cotton wood and another log.
3.The quality of the veneer determines the quality of the plywood, so controlling the quality of the veneer is the premise and the most important part of producing standard plywood.
4. veneer peeling machine is a very technical equipment in plywood line equipment.
2. Technical Parameters

Max.working length	1400mm
Working diameter range	22~500mm
Max. woring speed	30-120m/min
Veneer thickness	0.5~7mm
Double rollers motor power	7.5kw *2sets
Single roller motor power	5.5kw *2sets
Screw Feeding motor power	11kw
Rotary clipper motor power	1.5kw
Rubber belt conveyor motor	1.5kw
Machine size	4700*1800*1500mm
Machine weight	7000kg
Remarks	1.Maintenance-free oil immersed parallel bars2.Touch screen3.Pneumatic shafting tail plate4.90 thick screw5.Alloy screw nut6.Automatic refueling system7.Single and double roller disconnected structure

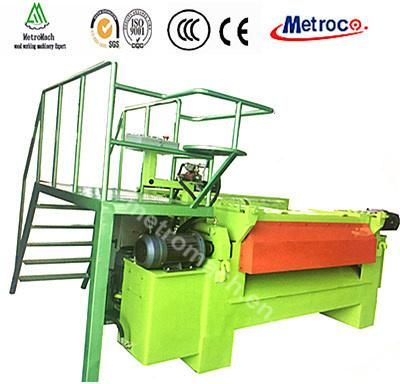

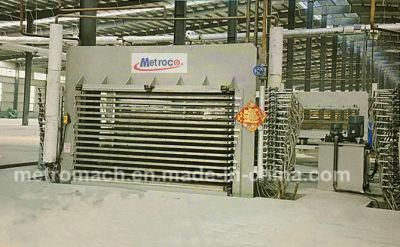

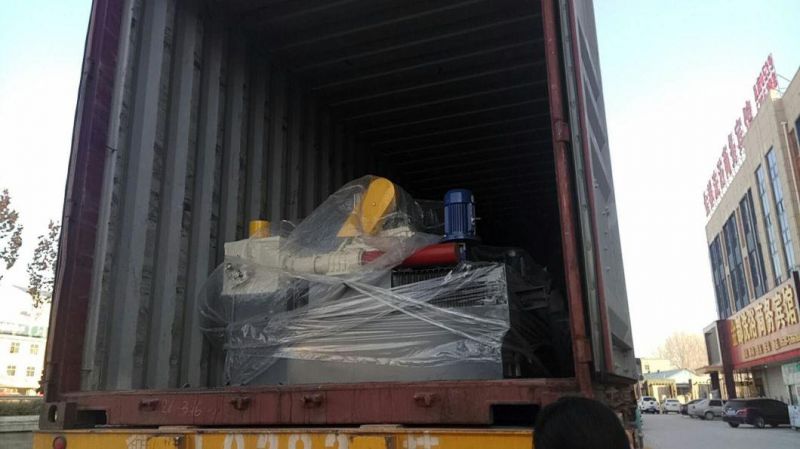

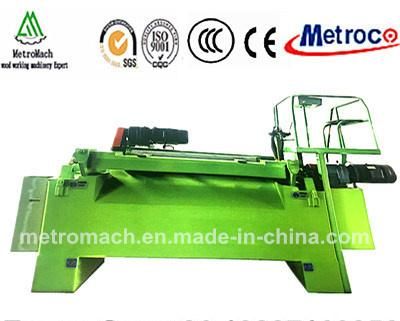

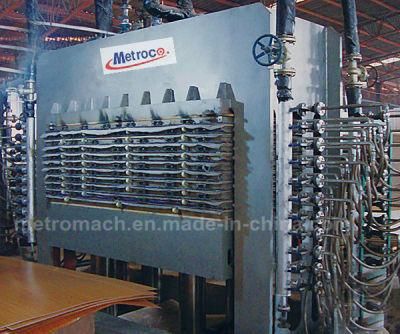

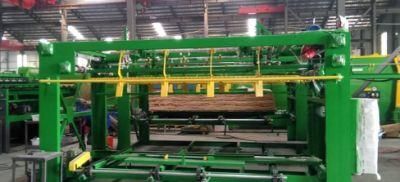

3. More Pictures
