• Model NO.：WSDN
• Specification：BV, CO, CCC
• Trademark：GMEC
• Origin：Zhengzhou
• HS Code：8474900000
• Production Capacity：800000 Pieces Day

Basic Info.

Model NO. WSDN Specification BV, CO, CCC Trademark GMEC Origin Zhengzhou HS Code 8474900000 Production Capacity 800000 PiecesDay

Product Description

Least price Bamboo products Toothpick making toothpick Production Line


Process:
Wood toothpick making machine / Bamboo toothpick make machine
Toothpick making machine./ toothpick processing machine /Toothpick
Manufacturing Machine /Toothpick Sharpening Machine /Toothpick Forming Machine/Clothes Peg Making Machine

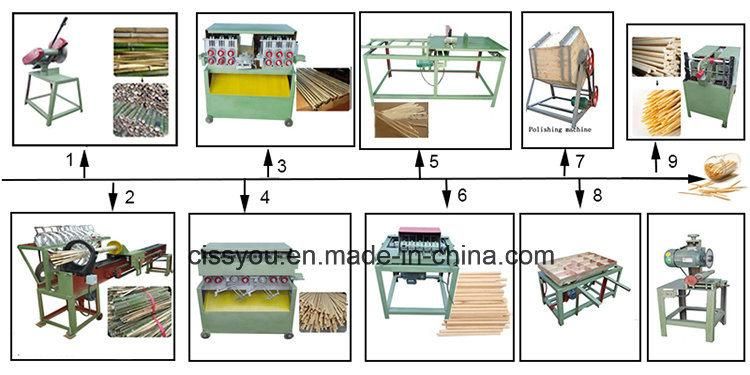

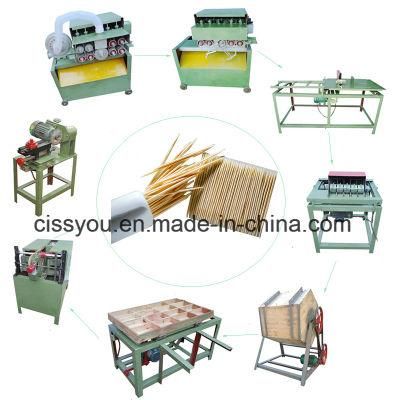

1. The above products with original bamboo - picking sawing - open bamboo - play section wide open piece, wire drawing, bleaching,
drying, cut to length, grinding, sorting, sharpening, packaging.

2. More than 10 sets into a production line, production of two head pointed toothpicks, 8 hours of production in 800000, about 100 kg. Need to manipulate staff 4, 6 people, the use of industrial electricity 380 v. Increasing the 9 machines, production doubled, 1.6 million

3. If users need to produce a head of a carved bamboo toothpicks, then replace the 9 machine (a sharpening machine), the same machine as a set of 10, 8 hours of production in 600000, increased 9 (a head of a sharpening machine), production doubled, 1.2 million.

4. Usually every 100 kilograms of fresh bamboo (wet), can produce 2.0 mm in diameter, 65 mm long toothpick 10-130000, about 13-16 kilograms dry finished toothpicks.


1. Sawing machine (Bamboo)

Model	WSX-791
Motor	2.2 KW
Working data	150mm depth/ time

2. Bamboo dissection machine

Model	WSX-04
Motor	4 KW
Working data	14 times/min

3. Flakers

Model	WSX-036
Motor	5.9 kw
Working data	63-90 m/min

4. Combined flakers

Model	WSX-211
Motor	1.1 kw
Working data	76 m/min

5. Bamboo filament shaping machine

Model	WSX-05 C
Motor	7.1 kw
Working data	55-80 m/min

6. Bamboo filament set-size machine

Model	WSX-741
Motor	0.75 kw
Working data	350 mm

7. Polishing machine

Model	WSX-543
Motor	1.1 kw
Working data	0.25 m³

8. Toothpick set-size machine

Model	WSX-956
Motor	2.75 KW
Working data	60 mm

9. Tooth pick mincing machine (unoccupied or amphibole)

Model	WSX-642
Motor	2.75 KW
Working data	0.12 million/ hour

10. Multi-sharpen machine

Model	WSX-721
Motor	0.37 KW
Working data	Speed of rotator 2800 time/ min

	Name	Model	Power(KW)	Weight (KG)	Size (mm)
1	Wood flaker	WSDN-656	4.55	320	1050*680*1050
2	Wood filament machine	WSDN-652	4.95	320	1050*680*1050
3	Wood strips cutting  machine	WSDN-105	0.75	75	1500*650*990
4	Toothpick cutting machine	WSDN-114	2.75	240	900*700*950
5	Toothpick polishing machine	WSDN-80	1.5	150	1050*1050*1200
6	Toothpick tidying machine	WSDN-113	0.55	65	1050*900*850
7	Toothpick peaking machine	WSDN-268	1.65	260	950*650*1050
8	Knife sharpening machine	WSDN-112	0.55	65	700*500*850
			17.25kw	1495kg	6.14 cubic

If you also want the working video of our machine,contact me without any hesitation.
