• Model NO.：HFEG-2550-CH
• Pressing Layer：Single Layer
• Work Mode：Continuous
• Controlling Mode：Artificial
• Automatic Grade：Automatic
• Certification：CE, ISO
• After-sales Service：Free Service on Internet
• Model：Hfeg-2550-CH
• Control Type：PLC Automatically Control, Fault Checking and Alar
• Hf Power：20kw
• Working Thickness：Less 50mm
• Working Table：2500X1250mm
• Weight：4.5t
• Transport Package：PE Film
• Specification：HFEG-2550-CH
• Trademark：CHANCSMAC
• Origin：China
• Production Capacity：10 Sets, Month

Basic Info.

Model NO. HFEG-2550-CH Pressing Layer Single Layer Work Mode Continuous Controlling Mode Artificial Automatic Grade Automatic Certification CE, ISO After-sales Service Free Service on Internet Model Hfeg-2550-CH Control Type PLC Automatically Control, Fault Checking and Alar Hf Power 20kw Working Thickness Less 50mm Working Table 2500X1250mm Weight 4.5t Transport Package PE Film Specification HFEG-2550-CH Trademark CHANCSMAC Origin China Production Capacity 10 Sets/ Month

Product Description

Conveyor Belt Type High Frequency Edge Glued Panel Press
1.Introduction:
High frequency edge glued panel press is advanced technology for panel making. HF generator generates electromagnetic fields between two electrodes through three phase alternating current. In this field, glue molecules are polarized - rotated - heated by friction.  High frequency heating is not like conductive heating, which heat material step by step, but help object heated themselves by friction. This is called high frequency dielectric heating-quickly, efficiently and evenly. So High frequency edge glued panel joining press only heat glue line but not the whole panel, saving much power and time, improving the efficiency a lot. Tons of vertical pressure assure flatness of panel, even can correct the curved panel slightly. Machine can help customer save a lot of wood material for next sanding procession.

2.Features:
1). High efficiency: HF heating 1-2minutes finish one standard panel(8x4 feet, 20mm thick ).
2).Low power costs: HF power only heat glue line, save the power. (0.6-1 kwh per panel)
3).Labor saving: Automatic control. One button can finish whole cycle.
4).No pollution: HF power only needs electricity, dust free and clean.
5). High yield percentage: Keep panel flat and save sanding material.
6).High performance: OMRON, SCHNEIDER, MOELLER etc international components used inside.
7).Easy to maintain: Machine fault self-checking system and alarm.

3.Parameter:

Model	HFEG-2550-CH	HFEG-2580-CH	HFEG-3260-CH	HFEG-5260-CH	HFEG-6260-CH
HF Power	20KW	20KW	30KW	50KW	50KW
Control Type	PLC	PLC	PLC	PLC	PLC
Feeding Type	Auto	Auto	Auto	Auto	Auto
Working Thickness	≤50mm	≤80mm	≤60mm	≤60mm	≤60mm
Working Table	2500x1250mm	2500x1250mm	3200x1250mm	5300x1250mm	6200x1250mm
Weight	4.5T	5T	6T	8T	9T

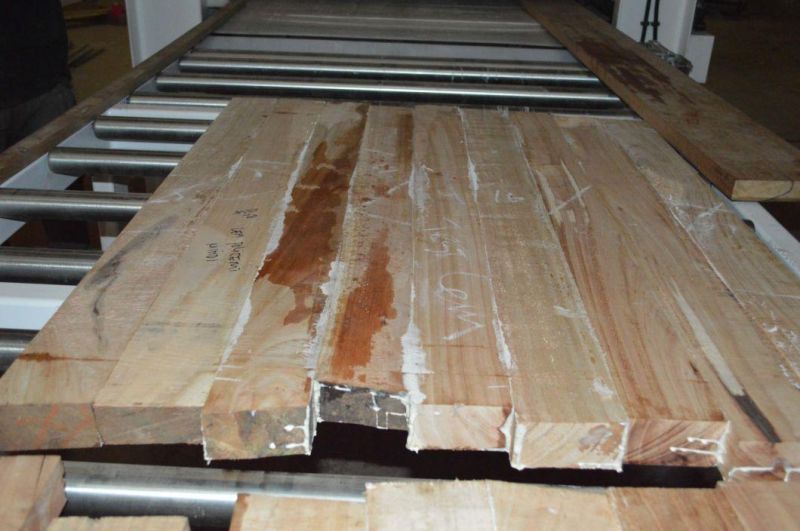

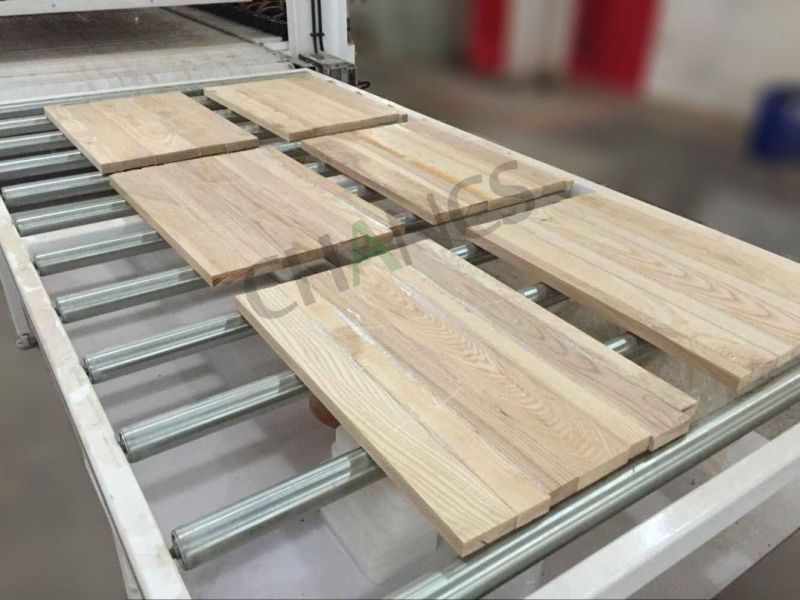

4.Detailed Images:Short Panel Gluing



5.FAQ:
List some questions customers care about, if you have more quotations, please feel free to contact with us
1.  Q: What's the MOQ?
      R:  One set will be ok.
2.  Q: Provide customized machine Yes or NO?
     R: Yes. We have professional designers and engineers to supply customized machines.
3.  Q:What is payment terms?
     R: 30%T/T in advance, the balance paid before shipment after insepction.
4.  Q:What is warranty time?
     R: One year.
