Woodworking Center CNC Drilling Routing Machine
Qingdao High-Class Service Import & Export Co., Ltd.- Type:Engraving Router
- Spindle Layout:Vertical
- Spindle Number:Single-Spindle
- Feed Mode:Mechanical
- Controlling Mode:CNC
- Certification:CE, ISO
Base Info
- Model NO.:CA20-9
- Customized:Customized
- Condition:New
- Color:Customized
- System:Syntec
- Spindle:Air Cooling
- Warranty:1 Year
- Motor:Servo Motor
- Working Area:1220mmx2440mm
- Name:Woodworking CNC Machine
- Application:Wood Working
- Power:9kw
- Table:Vacuum Table
- Product Name:CNC Wood Working Machine
- Transport Package:Wrapping Film
- Specification:3700*2650*2300 mm
- Trademark:Fengkai
- Origin:Shandong of China
- HS Code:8465990000
- Production Capacity:200PCS,Month
Description
Basic Info.
Model NO. CA20-9 Customized Customized Condition New Color Customized System Syntec Spindle Air Cooling Warranty 1 Year Motor Servo Motor Working Area 1220mmx2440mm Name Woodworking CNC Machine Application Wood Working Power 9kw Table Vacuum Table Product Name CNC Wood Working Machine Transport Package Wrapping Film Specification 3700*2650*2300 mm Trademark Fengkai Origin Shandong of China HS Code 8465990000 Production Capacity 200PCS/MonthProduct Description
Woodworking Center CNC Drilling Router MachineApplication:
1) It is economical and efficiency equipment, suitable for small and diversified production.
2) Work table can adsorb the entire board directly, no need any cutting preparation action.
3) It's high precision and efficiency equipment, suitable for the production mode of the milling and drilling compound machining.
4) It can be used in multi process processing, such as cabinet, solid wood door and so on.

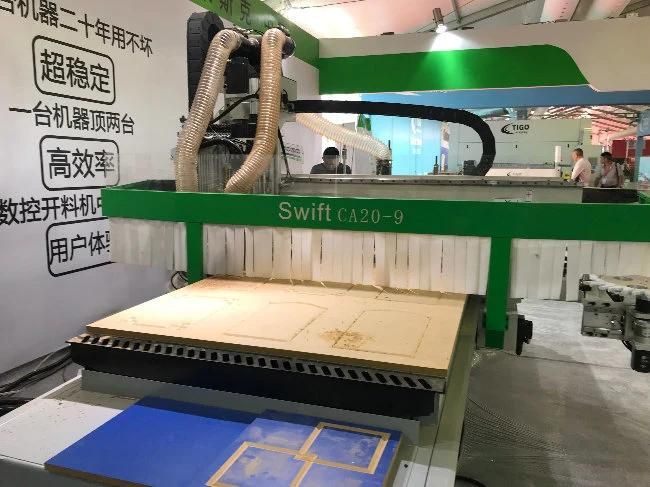

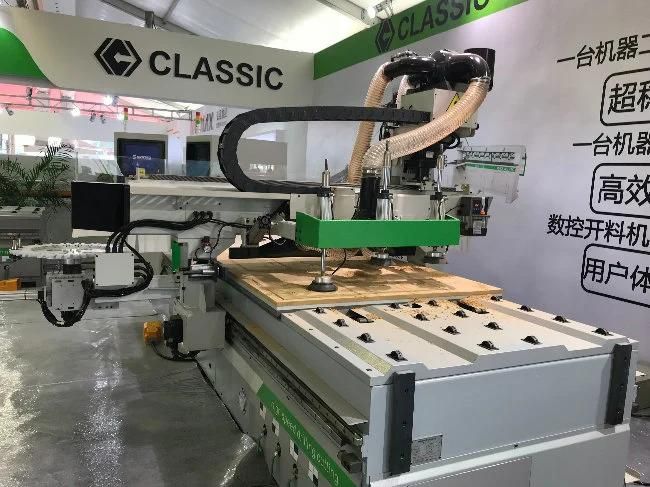

This model equips 20pcs tool and 9v FAM drilling bag, can dilling holes and engrave, very suitable for making cabinet
Model | CA20-9 |
Working Table Dimension | 1220x2440 mm |
X Y Z Working Area | 3150*1780*300 mm |
Workpiece Height | 150 mm |
Max Moving Speed | X axis :60m/min Y axis: 60m/min Z axis: 20m/min |
Spindle Type | Auto changing spindle |
Spindle Speed | 3000 - 24000rpm |
Vacuum Area | four vacuum areas |
Spindle Power | 9KW air cooling automatic tool change spindle |
Vacuum Pumping Power | 10hp(7.5kw)-250m3 /h |
CNC Controller | Syntec |
Servo Motor | Syntec |

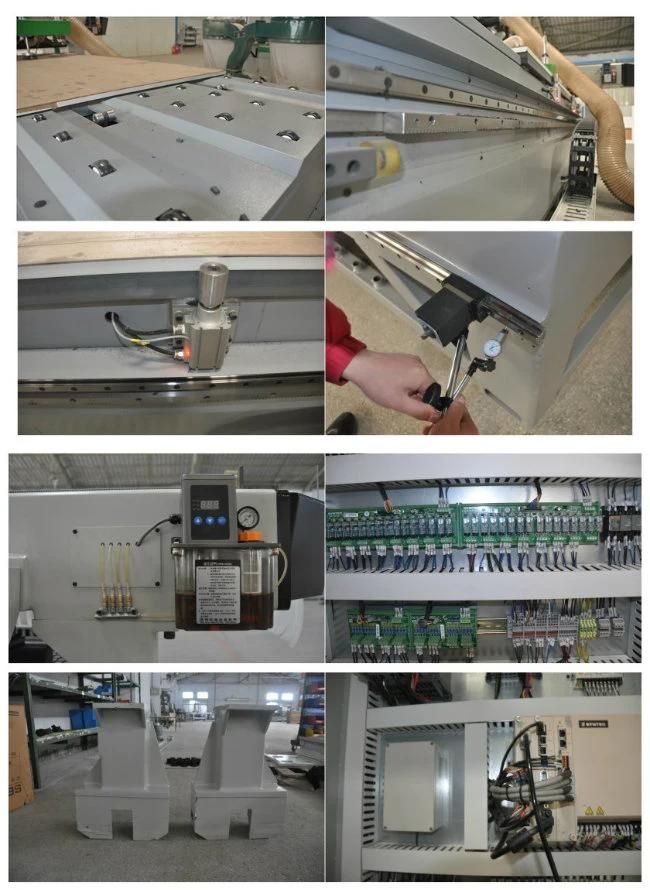

Details
1) Taiwan PMI precision ball screw and linear slide manufacturing, high precision, heavy duty and long service life
2) Germany barnd high-precision rack, with high-speed displacement positioning accuracy, and transmission low noise. Max moving speed up to 60 M / min, and moving smooth and accurate.
3) Movable positioning cylinder, will provide large plates fast refueling and positioning.
4) Most of the pneumatic components used in Taiwan Airtac.
5) All electronic component adopted European standard (CE certified) components, such as South Korea LS, France Schneider.
6) X & Y-axis drive with Japan SHIMPO Reducer
7) With a Syntec control system and the function of synchronous printing and labeling.
About Us
1.15 years experience in chinese woodworking machinery market.
2. 8 years exportation experience, have customers in more than 40 countries.
3.Engineer team with +20 years experience.
4.Diamond supplier in made-in-china.
5.Our products are widely sold in made-in-china.
6.Guarantee and After-sale service:
a. 12 months warranty for the whole machine
b. Technical support by phone, email or WhatsApp/Skype around the clock.
c. Friendly English version manual and operation video CD disk
d. Engineer available to service machinery overseas.

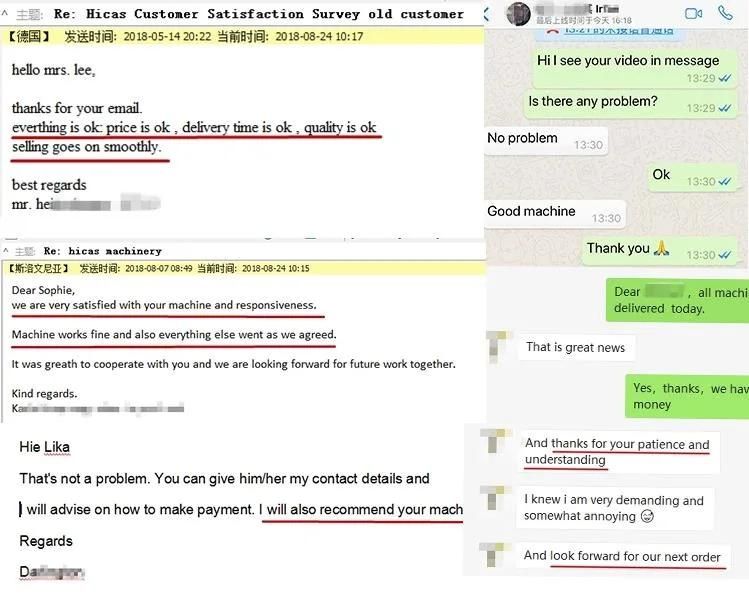

7. Customer feedbacks
8.Our company and products have been verified onsite by SGS Group
We are looking for Good customers like you! and Distributor or Agents Wanted!!!
