• Model NO.：LZLH680
• Warranty：1 Year
• Customized：Customized
• Condition：New
• Color：Multi Color
• After-sales Service：24hours
• Brand Name：Fdsp
• Delivery Detail：45 Days
• After-Sales Service Provided：Engineers Available to Service Machinery Overseas
• Transport Package：Iron Pallet
• Specification：CE, ISO9001, SGS
• Trademark：FDSP
• Origin：China
• HS Code：8436100000
• Production Capacity：2-3t,H

Basic Info.

Model NO. LZLH680 Warranty 1 Year Customized Customized Condition New Color Multi Color After-sales Service 24hours Brand Name Fdsp Delivery Detail 45 Days After-Sales Service Provided Engineers Available to Service Machinery Overseas Transport Package Iron Pallet Specification CE, ISO9001, SGS Trademark FDSP Origin China HS Code 8436100000 Production Capacity 2-3t/H

Product Description

        Vertical ring die pellet mill for wood pellet biomass granualtor producer

Features of wood pellets machine

1. High precision gear-driven transmission system, about 20% higher than belt driving;

2. Siemens motor, imported bearing, Germany oil seal to ensure long service time;

3. Advanced frequency-conversion motor, overload protection device, magnetic

    separating device are designed to ensure safety and long service time;

4. Advanced compensation type serpentine spring coupling to ensure high efficiency,

    low noise and long service time;

5. Gear-box body adopts HT250 material, which makes it much more durable and

    ensure its long service time;

6. Forced feeding system, specially designed for material with low density of 0.3-0.6g/m3

7. Suitable for pelleting various raw materials including woodiness, biomass waste like sawdust, woodchips, straw, stalk, sugar cane, napier grass, etc.



Technical Parameter of wooden pellets mill

Model	LZLH680
Capacity(T/H)	1.5-2
Main motor power(kw)	160
Feeder power(kw)	3
Ring die dia(mm)	700
Pellets dia(mm)	6/8/10

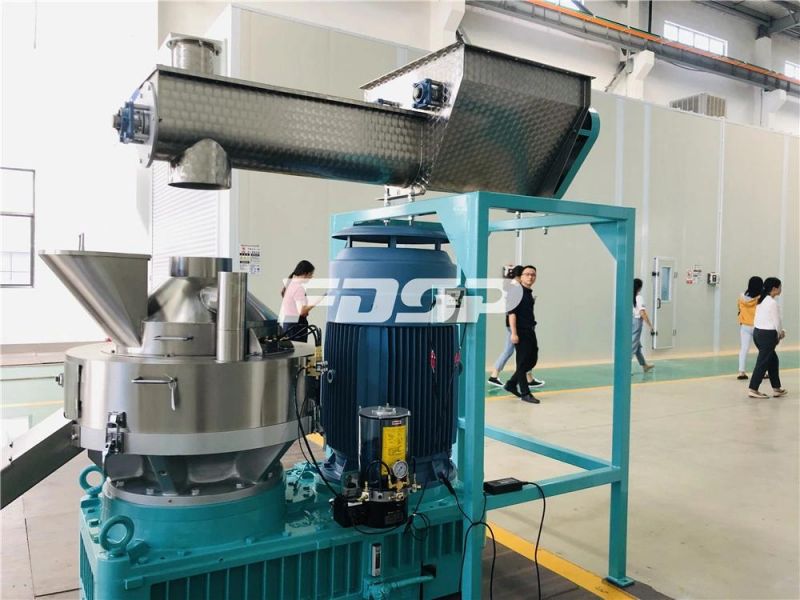

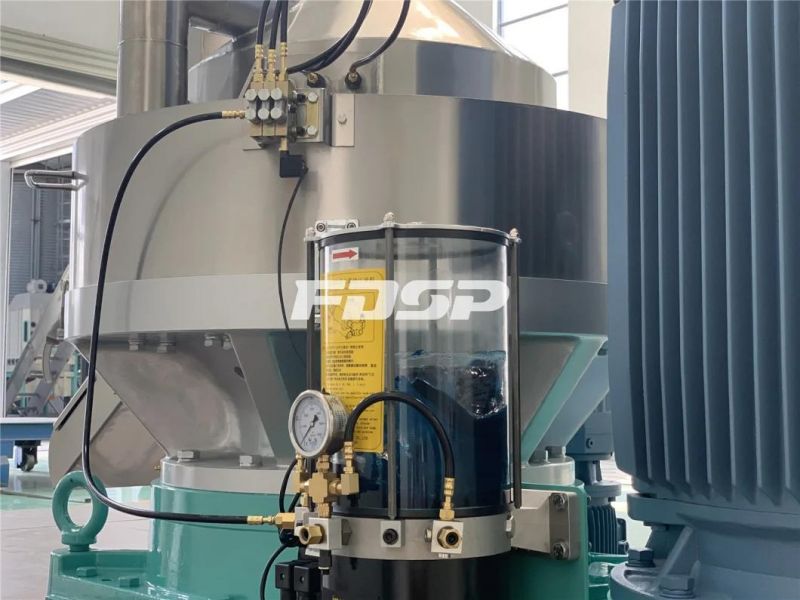

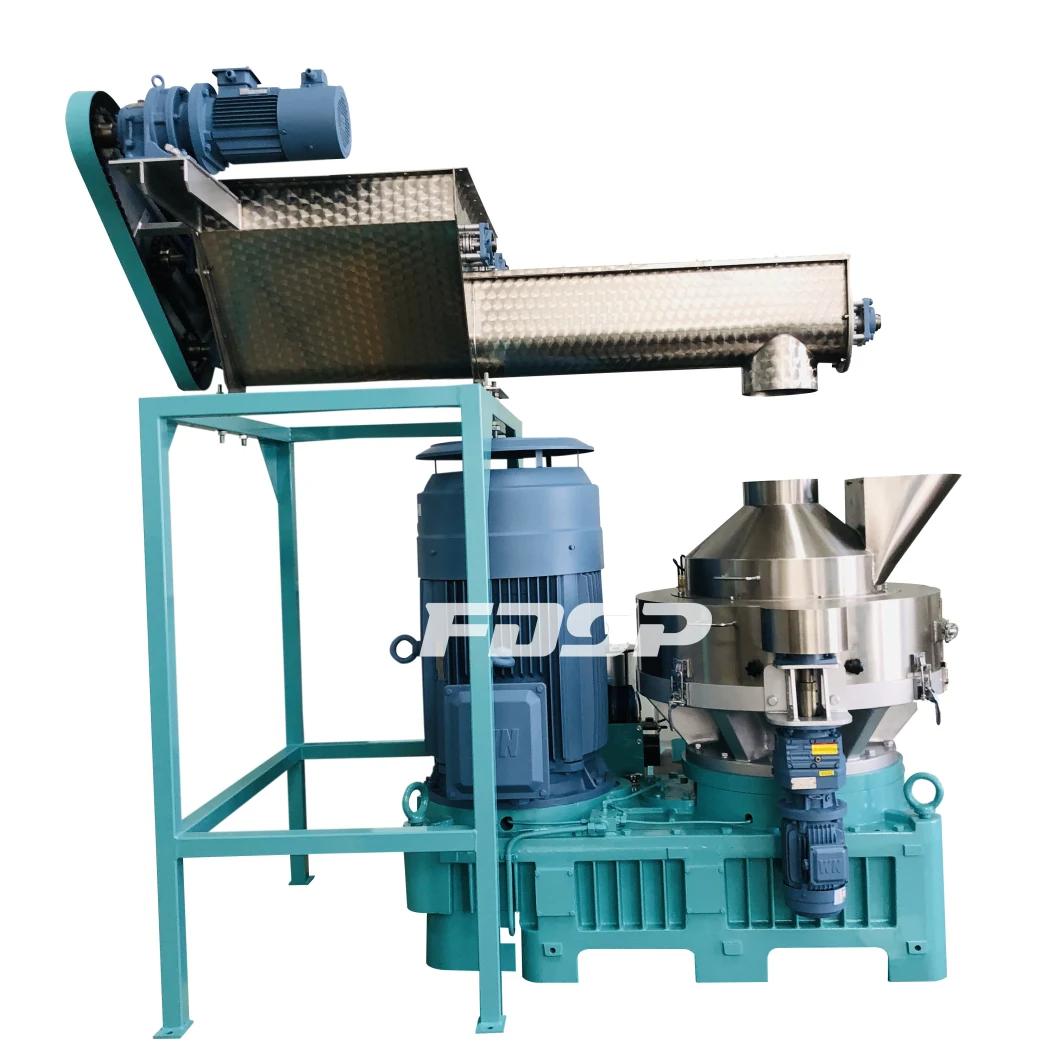

The details of vertical type biomass pellet mill

Verticle ring die pellet mill

Ring die inner diameter:700mm

Ring die working width:55mm

Roller qtty:3

Cutting knife: 1

Motor rotation speed: 1485rpm

Ring die material: alloy steel

High strength gearbox drive

Main: 40 Cr

Spindle bearing: NSK

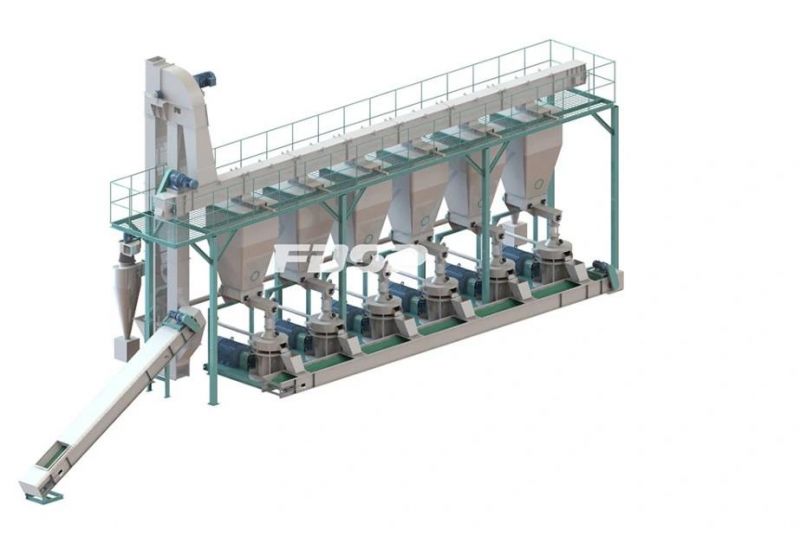

The pelleting process:

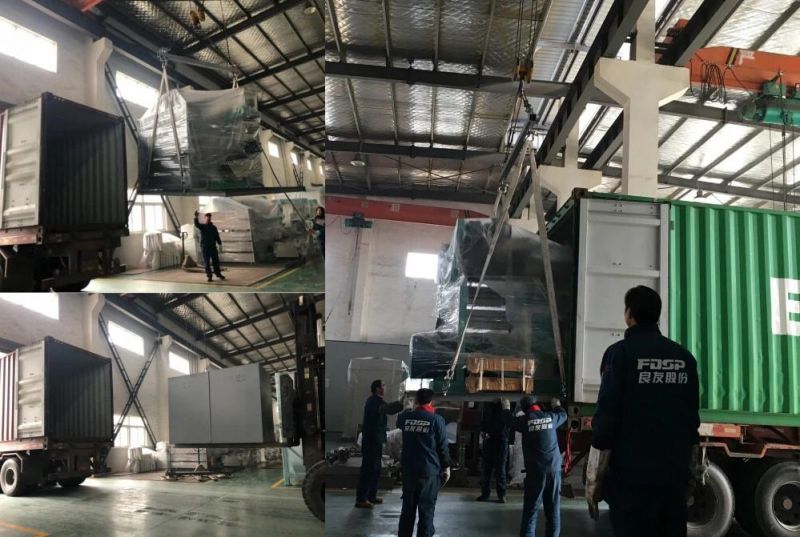

Delivery packing

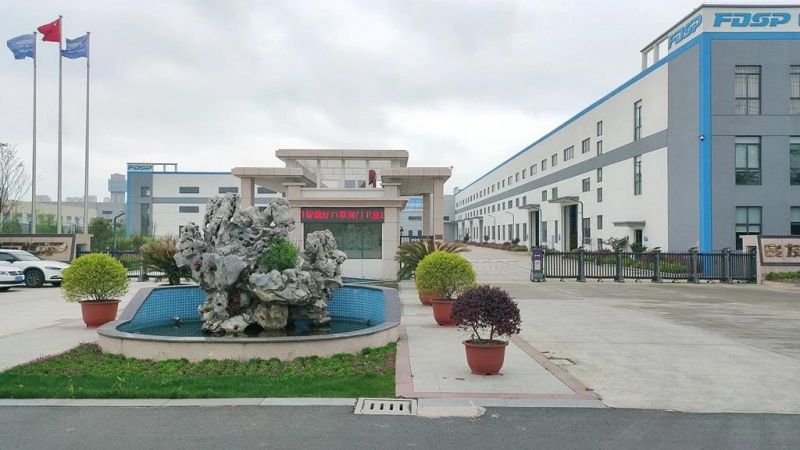

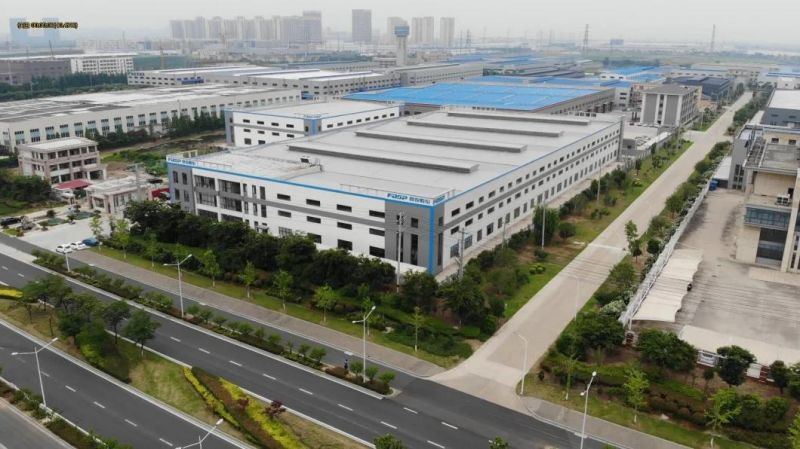

Company View



FDSP has been devoting to feed machinery industry since its establishment in 2003. It covers an area of 30000 square meters, locating in the zhongguancun science&technology industrial park in Liyang City, Jiangu Province, PRC.

FDSP is focusing on profession, keeping innovation and exploration. The core concept in FDSP Company can be generalized into five words: Quality, Sincerity, Perfection, Exploration & Innovation.
