• Model NO.：1530
• Customized：Customized
• Condition：New
• Color：Customized
• Working Area：1500*3000*400mm
• Control System：Syntec 6MB Control System
• Working Voltage：380V, 3pH, 50Hz
• Spindle：2 Sets 3.5kw Hqd Air Cooling Spindle
• Spindle Speed：0-18000rpm
• Inverter：3.7kw Fuling Inverter
• Motor and Driver：850W Yaskawa Servo Motor and 1kw Driver
• Table Surface：Without Working Table(Customer Required)
• Software：Artcam
• Transport Package：Standard Export Wooden Case
• Specification：CE, ISO, SGS
• Trademark：BLUE ELEPHANT
• Origin：Shandong, China
• Production Capacity：200 Sets Per Month

Basic Info.

Model NO. 1530 Customized Customized Condition New Color Customized Working Area 1500*3000*400mm Control System Syntec 6MB Control System Working Voltage 380V, 3pH, 50Hz Spindle 2 Sets 3.5kw Hqd Air Cooling Spindle Spindle Speed 0-18000rpm Inverter 3.7kw Fuling Inverter Motor and Driver 850W Yaskawa Servo Motor and 1kw Driver Table Surface Without Working Table(Customer Required) Software Artcam Transport Package Standard Export Wooden Case Specification CE, ISO, SGS Trademark BLUE ELEPHANT Origin Shandong, China Production Capacity 200 Sets Per Month

Product Description

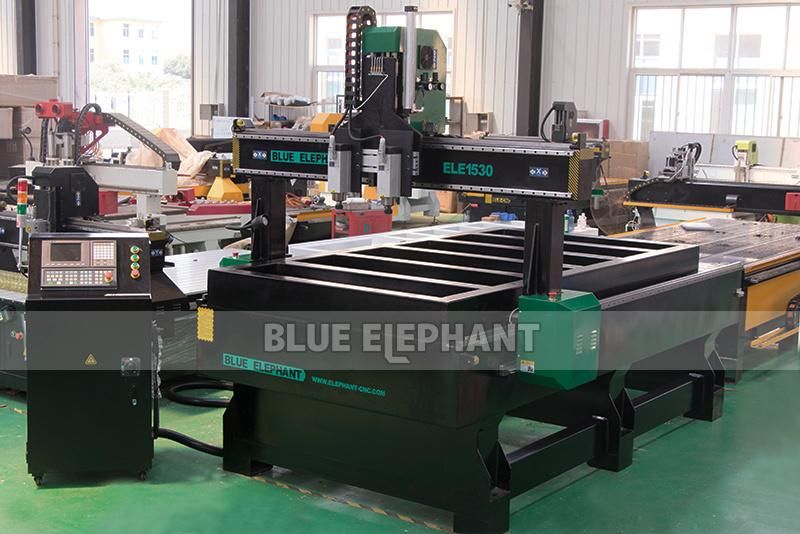

Customized 1530 Multi-head CNC Machines for Wood Carving Mirror Frame

Features:

• Our model is 1.6 meter, but this machine own 1.2 meter high body frame, more heavy, more durable.

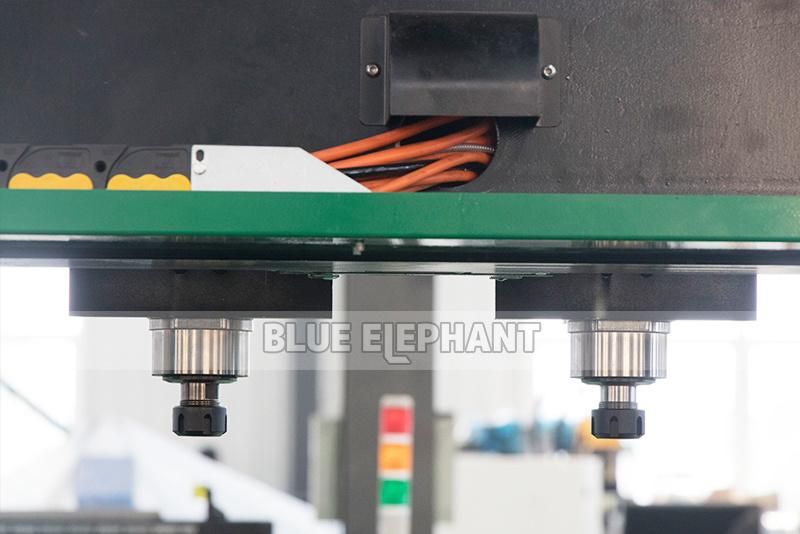

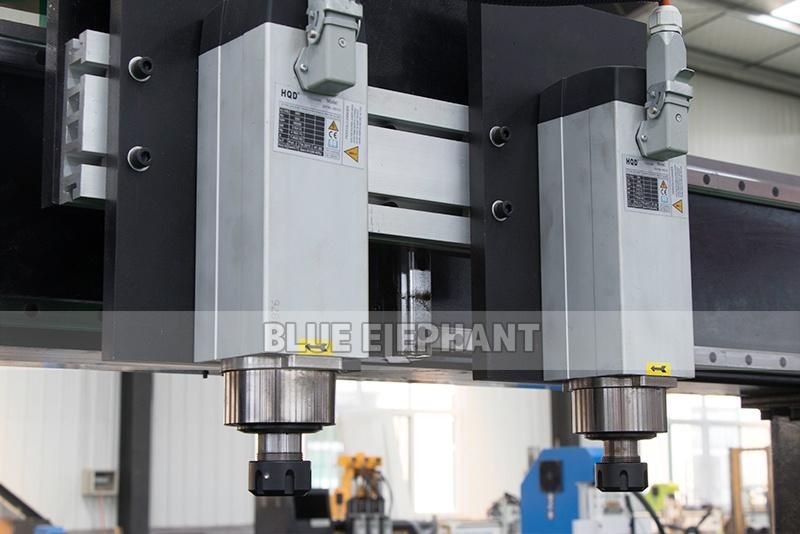

• The machine has two spindles, they do the same works at the same time.
• Fast carving speed: high-speed 850kw YASKAWA servo motor and 1kw driver, high precision helical rack drive, with the high power engraving spindle cutting faster.
• High Z axis, can process more thicker materials.

Parameters:

Descriptions	Parameters
Model	ELECNC1530-2S
Working area	1500*3000*400mm
Control system	SYNTEC 6MB control system
Working Voltage	380V, 3Ph, 50Hz
Spindle	2 sets 3.5kw HQD air cooling spindle
Spindle speed	0-18000rpm
Inverter	3.7kw Fuling inverter
Motor and Driver	850w YASKAWA servo motor and 1kw driver
Table surface	Without working table(customer required)
Structure	New type thicker and bigger heavy duty welded frame and gantry
Lubrication system	Auto lubrication system
Transmission	X,Y axis: rack and pinion drive Z axis: Taiwan TBI ball screw X,Y,Z axis: ABBA
Dust collector	3kw double bag vacuum cleaner (380V, 3PH, 50HZ)
Control box	1.4m SYNTEC control box
Rotary device	Diameters: 400mm,  length: 2000mm
Software	Artcam

PS:All the working area and specifications can be customized according to your requests.

Product details





Application

1. Wood furniture industry

Doors; Cabinets; Tables; Chairs.

Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2. Advertising industry

Signage; Logo; Badges; Display board; Meeting sign board; Billboard

Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.

3. Die industry

A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.

4. Artwork and Decoration

wood crafts; gift box; jewelry box

5. Others

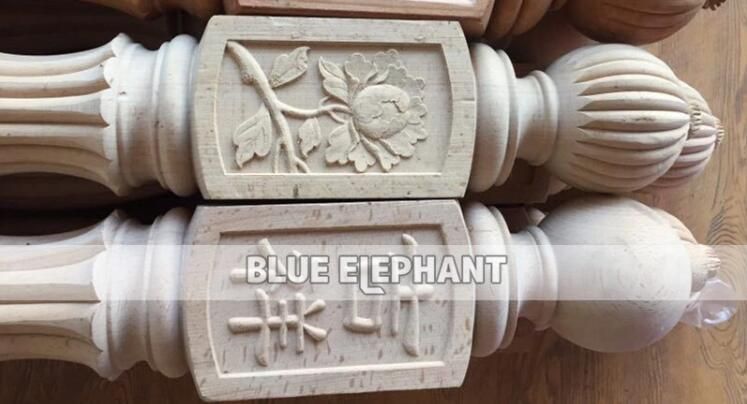

Relief sculpture and 3D engraving and Cylindrical object.


Packaging & Delivery

Packaging Details:
Three layers---
-The innermost layer is EPE pearl cotton film package;
-The middle layer is wrapping up with environmental protection material ;
-And the outermost layer is winding up with PE stretch film.
They're very environmentally friendly.
If you need a wooden box, we will make a wooden box outside the machine.

Delivery Detail: Shipped in 15 working days after payment.

Our Service:

1, Within 7days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered, operation disk/CD was included.


Our Factory

• Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. We have always been developed to the research and manufacturer of CNC router machine and laser cutting engraving machine.
• Our Philosophy: To Be First Brand -- CNC Manufacturer & wholesaler Platform!

• Just looking forward to service every customer, like you.
