Jinan Blue Elephant 1325 CNC Woodworking Machine, Wood CNC Router 3D for Door Making
Jinan Blue Elephant CNC Machinery Co., Ltd.- Type:Engraving Router
- Spindle Layout:Spindle Over
- Spindle Number:Three Spindles
- Feed Mode:Mechanical
- Controlling Mode:CNC
- Certification:CE, ISO, SGS BV TUV
Base Info
- Model NO.:1325-3s
- Customized:Customized
- Condition:New
- Color:Customized
- Working Area:1300*2500*200mm
- Table Surface:T-Slot & Vacuum Work Table
- Spindle Power:3*3.5kw Hqd Air Cooling Spindle
- Spindle Speed:0-18000rpm
- Drive Motors:FL118 Stepper Motor and Yako2811 Bigger and Stro
- Working Voltage:380V, 3 Phase, 50,60Hz(Option)
- Operating System:Ncpm95A-3L Control System with Computer Control Bo
- Inverter:3.7kw Fuling Inverter
- Lubrication System:Auto Lubrication System
- X, Y Structure:Sweden SKF Group Abba #20 Linear Guide for All Axi
- Z Structure:Taiwan Tbi Ball Screw for Z Axis
- Limit Switch:Japan Omron
- Transport Package:Standard Export Wooden Case
- Specification:1300*2500*200mm
- Trademark:BLUE ELEPHANT
- Origin:Shandong, China
- Production Capacity:200 Sets Per Month
Description
Description
Parameter
X,Y,Z Working Area
1300*2500*200mm
Table Surface
T-slot & vacuum work table
X, Y Structure
Sweden SKF Group ABBA #20 linear guide for all axis
Helical rack gear transmission for X,Y axis
Z Structure
Taiwan TBI ball screw for Z axis
Spindle Power
3*3.5kw HQD air cooling spindle
Spindle Speed
0-18000RPM
Drive Motors
FL118 stepper motor and YAKO2811 bigger and stronger driver
Working Voltage
380v, 3 phase, 50/60HZ
Command Language
G Code
Operating System
NCPM95A-3L control system with computer control box
Computer Interface
USB
Collet
ER25
Inverter
3.7kw Fuling inverter
PS:All the working area and specifications can be customized according to your requests.

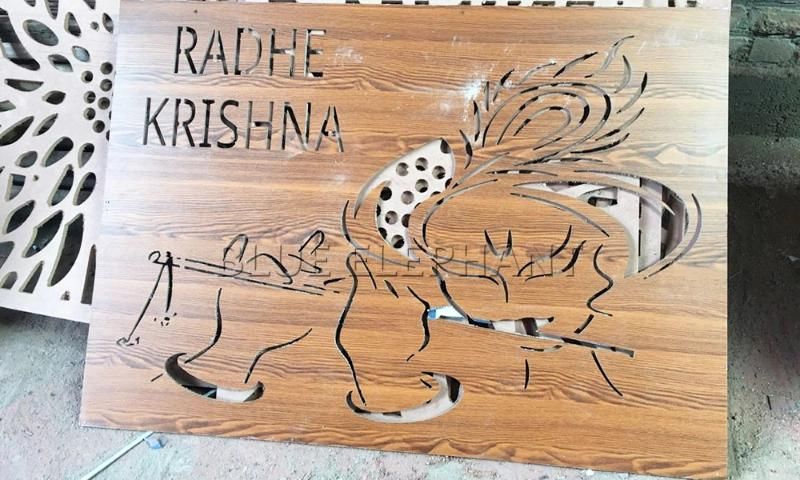

Sample & Application
1. Wood furniture industry
Doors; Cabinets; Tables; Chairs.
Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising industry
Signage; Logo; Badges; Display board; Meeting sign board; Billboard
Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die industry
A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.
4. Artwork and Decoration
wood crafts; gift box; jewelry box
5. Others
Relief sculpture and 3D engraving and Cylindrical object.
Our Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
*More than 95% of the timely response rate, timely response to customer questions
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Use online contact methods such as skype whatsapp facebook to provide online services to customers.

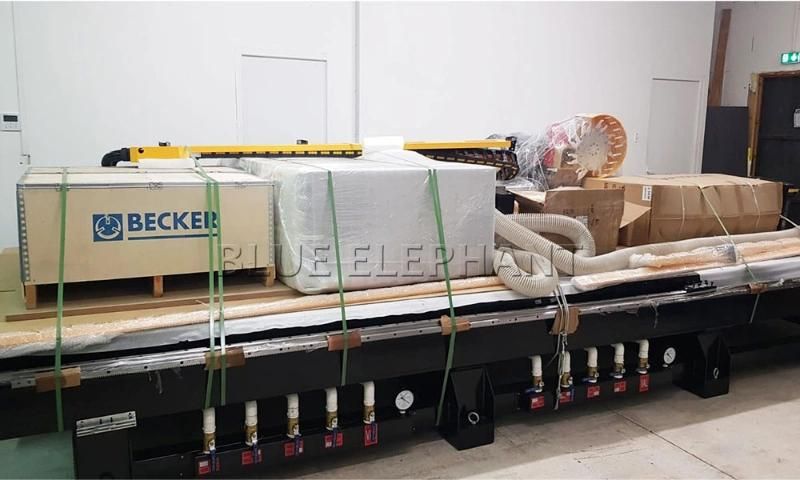

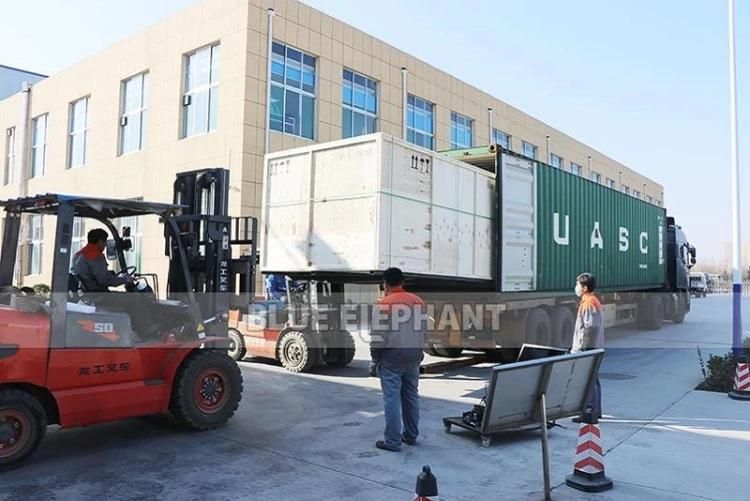

Packaging & Delivery
2.The middle layer is wrapping up with environmental protection material .
3.And the outermost layer is winding up with PE stretch film.
4.They're very environmentally friendly.
5.If you need a wooden box, we will make a wooden box.
Delivery Detail: Shipped in 25-30 working days after payment.

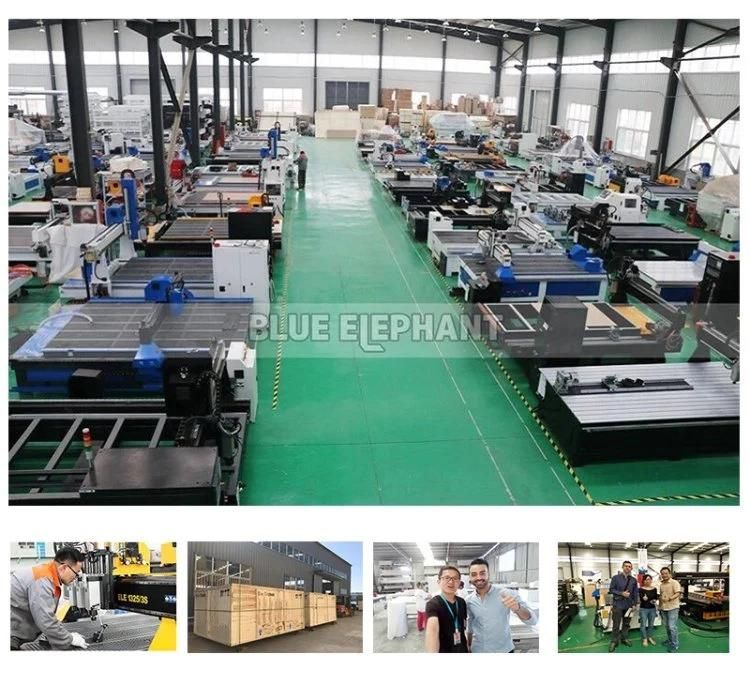

Company Introduction
Jinan Blue Elephant CNC Machinery, the professional cnc router and laser cutting machine manufacturer in China, include ATC CNC router, Wood CNC Router, Stone CNC Router, Metal CNC Router, EPS CNC Router, 4 Axis CNC Router, 5 Axis CNC Router, Plasma Cutting Machine, Laser Cutting and Engraving Machine and so on, which have passed the CE, SGS, ISO9001 etc. Our cnc routers are widely used for advertising, woodworking, mould, stone, metal industry.
