• Model NO.：ZS1325
• HS Code：84659900
• Production Capacity：300 Sets,Month

Basic Info.

Model NO. ZS1325 HS Code 84659900 Production Capacity 300 Sets/Month

Product Description

Why Choose Us :
1.15 years experience of production
2. ISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
3.Three Brands: Mars, Boiro, Golden Eagle.
4.Techniscit who go broad to offer after-sale service


CNC Router Machine/CNC Atc Engraver/Cutting Engraving Router Machine

  Feature1.Equipped with world famous control system, with powerful functions, high precision, fast speed.2.All components are of world top-class brand to ensure high quality.3.CNC machining center with 5 synchronizing interpolated axes, is well suited for 3D curved surface processing.4.Working speed/ traveling speed/ cutting speed can all be controlled separately, which dramatically improve  productivity and finish quality.5.Any machine size can be customized as per your special request.
Optional Accessories

Aquila Co.devotes to design all products and accessories,can maximize meeting customers demands.According to the market's different demands, its provides various accessory spareparts for kinds of requirements. The production mode of Aquila is to Act according to actual circumstances, which won the customer's trust and favour.

Parameters


Model	4 Axis CNC Machining Center
X/Y/Z axis working stroke	1300*3000*400mm
The 4th axis working stroke	Can rotate ± 90° left and right
Table surface	T-slot vacuum Table
Frame machine	Thick steel tube welded structure, w/ aging treatment
Spindle power	9KW Italy HSD ATC air cooling spindle
Spindle speed	0-24000 rpm
Automaitc tool change	Carousel, 8pcs
Control system	Taiwan Syntec 4 axis control System
Drive sytem	Japan Yaskawa servo motor & driver
Transmission	X/Y axis helical rack & pinion, Z axis ball screw
Gue rail	Taiwan imported linear guide rail
Vacuum pump	7.5kw vacuum pump
Inverter	Fuling or Zoncn
Oil lubrication	Automatic
Positioning Accuracy	± 0.03mm
Repositioning Accuracy	± 0.03mm
Max. Rapid Travel Rate	40 m/min
Max. Working Speed	30 m/min
Command language	G code/ HPGL
Working voltage	AC380V 3PH 50HZ
Software Compatibility	Type3/ Ucancam / Artcam
Running Environment Temperature	0 - 45 Centigrade
Relative Humidity	30% - 75%

 Note
 1). Spindle motor can be 800W/1.5KW/2.2KW. 2). Option: Italy HSD spindle, DSP controller servo motor etc..3). Any machine size can be customized as per request.

Application
 1. Mold industry: casting mold, automobile, sanitary ware mold, ship, yacht, aviation industry, etc.2.3D processing: chairs, fiberglass trimming, resin and other non-metal carbon-mixed work pieces processing.3.Suitable materials: wood, styrofoam (EPS), resin, plaster, clay and non-metallic carbide composite material.
Sample

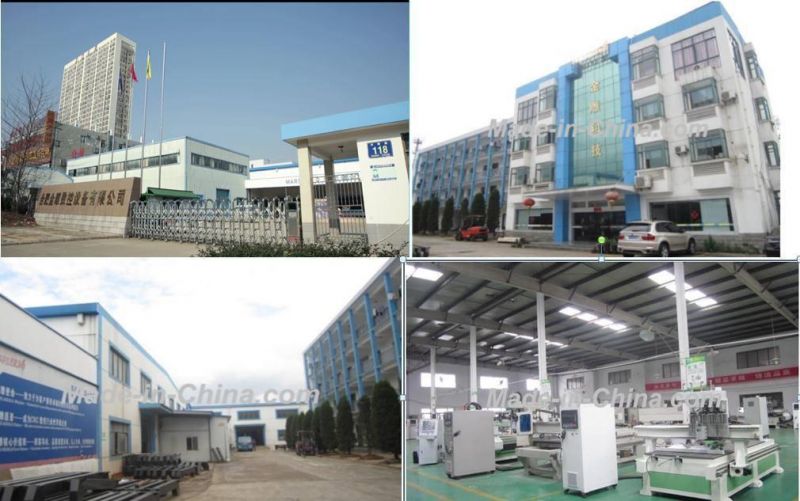

Company show
Our Company ( With 15 years experience of production)
Hefei Aquila CNC Equipment Co., Ltd locat in the beautiful hometown of Lord Bao- Hefei, Anhui Province. Covering an area of 20,000 square meters, we specialize in the innovation, manufacturing and trading of Panel Furniture Production Line Equipment, Nesting CNC Machining Center, ATC CNC Machining Center, Woodworking CNC Router, Stone CNC Router, Jade CNC Router, 4- AXIS Rotary CNC Router, Mold-making CNC Router etc. numerical control technology.

With over 15 years experience and dozens of national patents, our company has passed the ISO9001:2008 Quality Management System and CE Certificate, and is also entitled as the AAA Level Enterprise which Honors Contract and Keeps Promise. Our sales& service network has covered all dometic major cities and overseas markets, such as the USA, European, Southeast Asia, Middle East etc.

Our company adheres to the principle of "Customer First" and "Win- win Cooperation". Pursuing excellence and keeping making progress, we devote to developing the landmark brand in the CNC industry.

We are searching distributors all over the world. If you have any demands, welcome to contact us.



 Certificate


FAQ
Q1. how to get the most suitable machine and best price?
A1.Please tell me what's material you want to cutting or engraving ?
what's MAX size of carved material ?
Then I will recommend the most suitable model and the best price for you.
Q2. In case of failure,how to do?
A2. Call us----our engineers are online for 24-hours,and ready to serve you.
Replacement of damaged parts for free---For more information,please contact us
The CD and operation manual----It show the most common failure in working processing and how to solve this problems.
Q3. What is the type of shipping and producting time?
A3. we offer EXW, FOB and CIF which you can choose as you like.
when you pay for the pre-payment, we will arrange producting which about 7--15 days.
If you have any doubt, ples contact with me, l will reply for you in time.
