E300 CNC Machine/Panel Furniture Nesting CNC Router Machine/Gang Drill CNC Cutting Machine
Hefei Aquila CNC Equipment Co., Ltd.- Condition：New
- Certification：ISO, CE
- CNC or Not：CNC
- Voltage：380V
- Control System：Syntec, Osai
- Vacuum Pump：5.5kw
Base Info
- Model NO.：E300
- Lubrication System：Automatic
- Transport Package：Plywood Case Package
- Trademark：Mars
- Origin：China
- HS Code：84659900
- Production Capacity：300sets,Month
Description
Basic Info.
Model NO. E300 Lubrication System Automatic Transport Package Plywood Case Package Trademark Mars Origin China HS Code 84659900 Production Capacity 300sets/MonthProduct Description

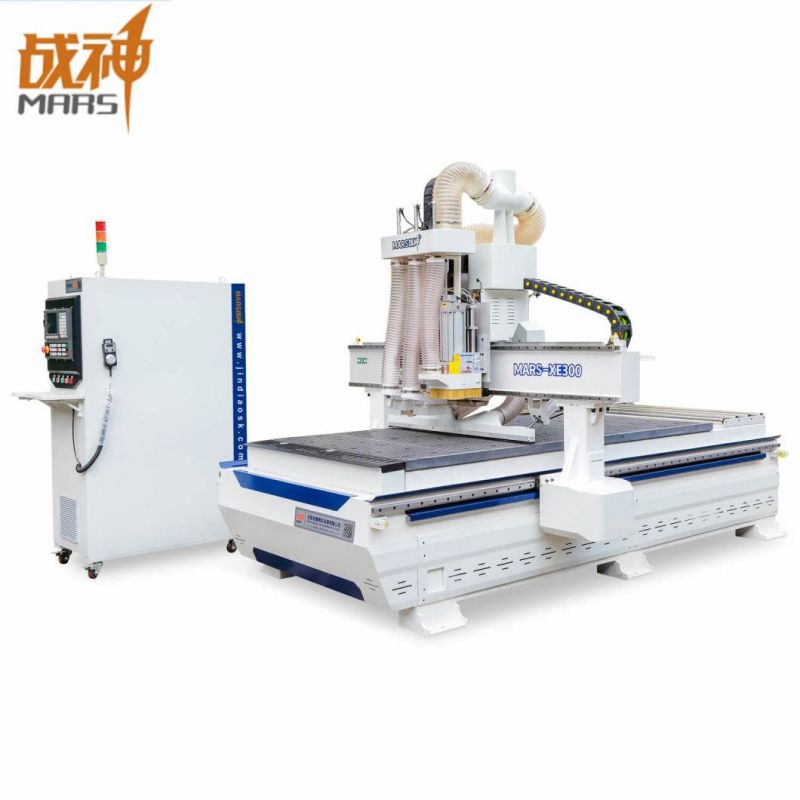

Panel Furniture Nesting CNC Router Machine/Gang Drill
CNC Cutting Machine
Keywords: 15 years experience of production
ISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
Three Brands: Mars, Golden Eagle, Boiro
Technicist who go abroad to offer after-sale service
| Model | E300 Gang Drill CNC Cutting Center |
| Working Stoke | 1230*2440*50mm |
| Body Structure | Heavy-duty thicken steel structure, w/ tempering |
| Spindle Power | HQD 6KW+4.5KW air cooling spindle |
| Spindle Speed | 0 ~ 24000 rpm/min |
| Drilling Bank | Italy HSD 5+4 gang drill |
| Control System | Syntec/ Osai |
| Drive System | Yaskawa/ Delta servo motor |
| Lubrication System | Automatic |
| Transmission | XY axis rack and pinion, Z axis ball screw |
| Guide Rail | Taiwan Hiwin rectangular linear rail |
| Vacuum Pump | 5.5KW |
| Max Travelling Speed | 50m/min |
| Max Processing Speed | 30m/min |
| Dictate Format | G code/ HPGL |
| Working Accuracy | ±0.02mm |
| Re-positioning Accuracy | ±0.05mm |
| Support Software | Professional cutting optimization software |
| Working Voltage | AC380/ 3PH/ 50HZ |
| Net Weight | 3000KG |
| Machine Size | 3700*3100*1900mm |

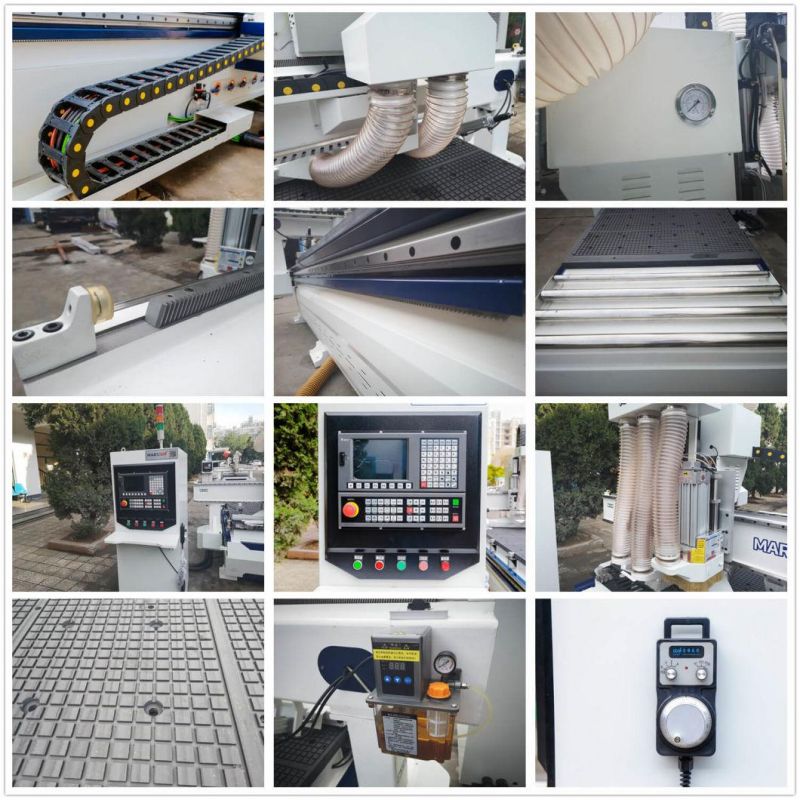

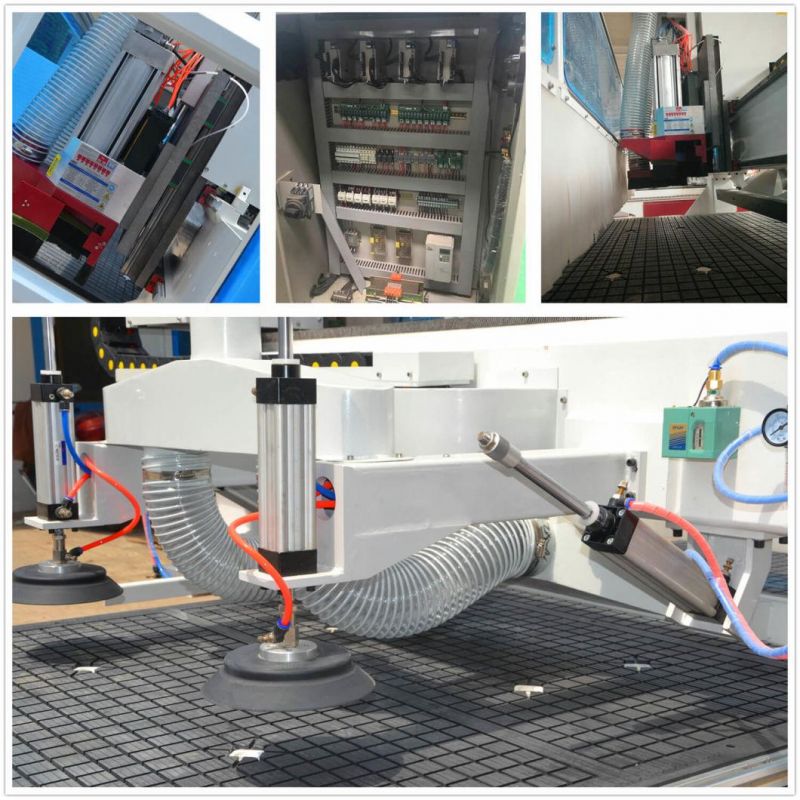

Machine Main Parts:
Performance Features:
1. Equipped with all the leading international brand components.
2. High-power Italy HSD air-cooling spindle, Japan YASKAWA servo motor and driver.
3. Vacuum table, high adsorption capacity, able to adsorb materials of different sizes.
4. Intelligent protection work table can prevent table damages caused by misuse or software errors. Intelligent processing cross-border protection can prevent mechanical collisions while design layout exceeds processing area.
5. Syntec CNC control system can automatically accomplish multi-layer 3D job, cutting, engraving, milling, all at ease. Offline operation can be realized.

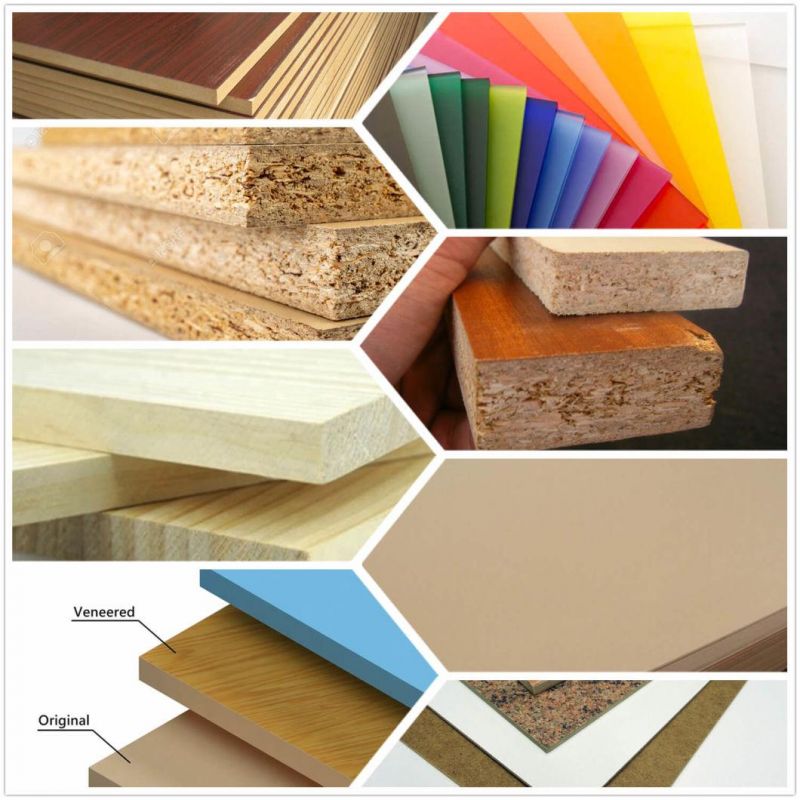

Available Materials:
Samples:

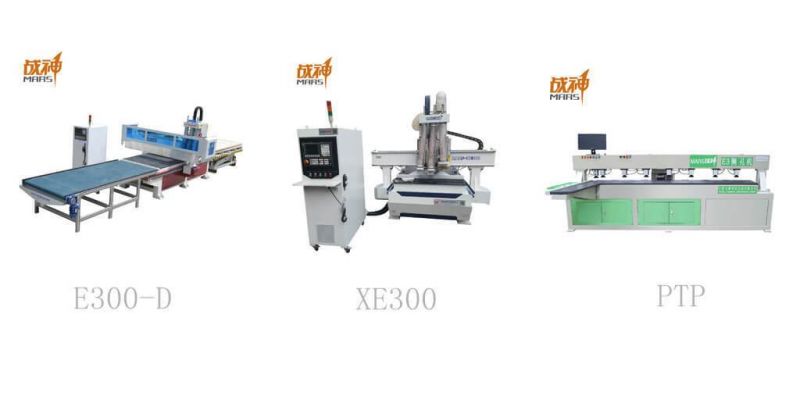

Related Machines
