3t/H Wood Chips Making Machine for Wood Plant

Zhengzhou Invech Machinery Co., Limited
  • Capacity:3t-30t
  • Feeding Port:Customized
  • Wood Chips Size:30-50mm
  • Certification:CE
  • Transport Package:Wooden Case
  • Specification:20FT,40FT Container

Base Info

  • Trademark:INVECH MACHINERY
  • Origin:China
  • Production Capacity:200PCS,Year

Description

Basic Info.

Trademark INVECH MACHINERY Origin China Production Capacity 200PCS/Year

Product Description

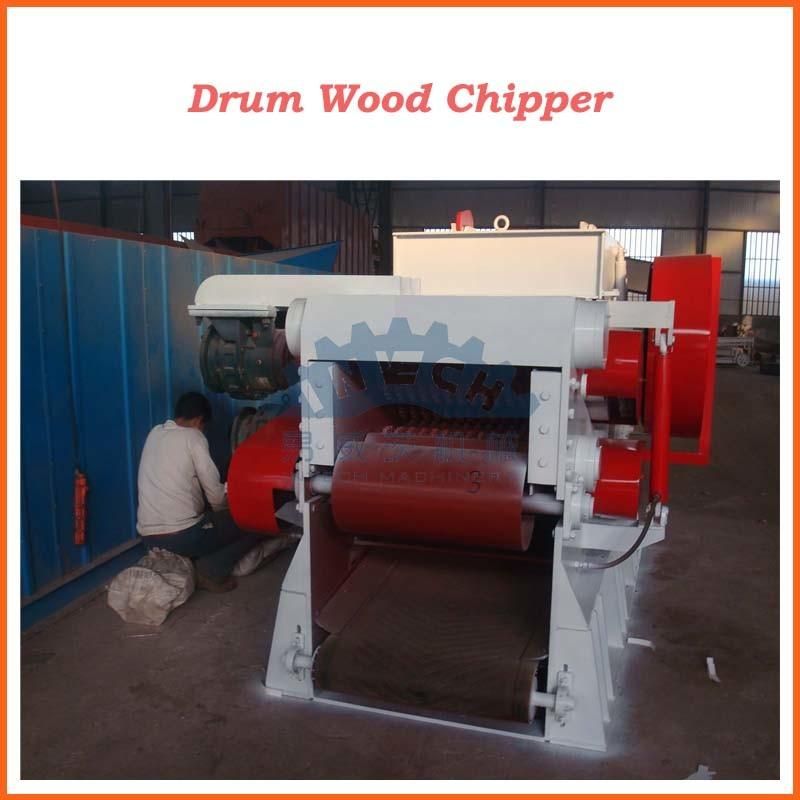

Drum Wood Chipper

Brife Introduction


Drum chipper is widely used in particleboard plant,medium/high density fiberboard plant,straw plant,biomass plant and wood products plant.
It can be used to chip wood material such as branches,logs,slab,veneer etc.And it also can be used for cutting non-wood material such as sugar cane,reed,bamboo and so on.

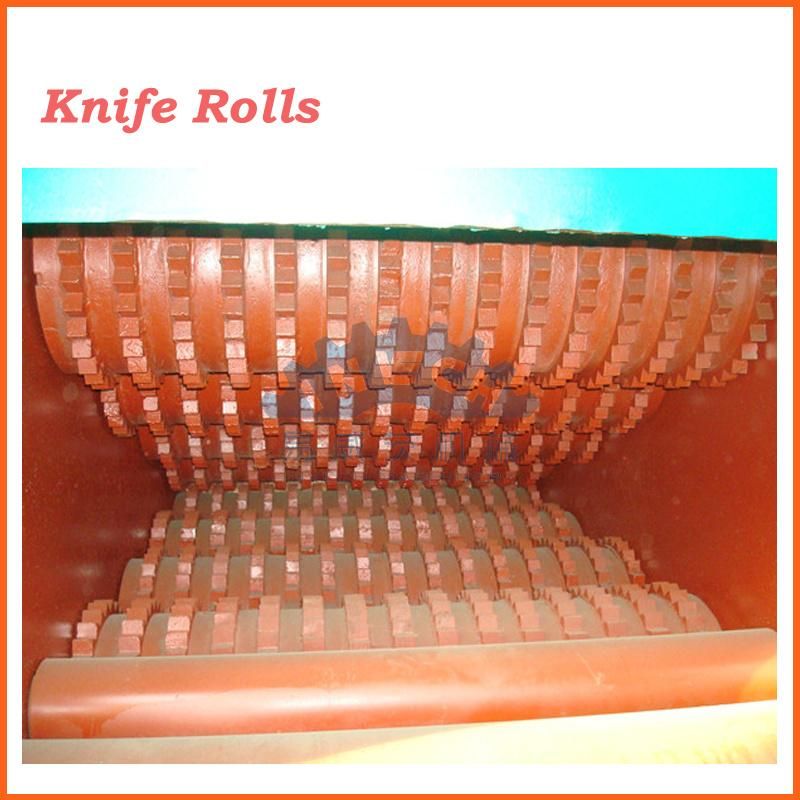

The drum chipper is consist of a machine body,a knife roller,upper and lower feeding roller,conveyor belts and hydraulic system components.

Technicals



ModelBX215BX216BX218BX2113
Feeding Port160mm*400mm230mm*600mm300mm*680mm450mm*700mm
Number of Flying Cutter2222
Rotate Speed of Cutter Roller592r/min590r/min650r/min520r/min
Max Diameter of Raw Material160mm230mm300mm450mm
Output Size of Wood Chips30mm30mm30mm38mm
Production Capacity3-4t/h7-8t/h12-15t/h15-30t/h
Main Motor Power45kw55kw110kw200-250kw
Feed Roller Motor Power2.2-3kw3-4kw4-5kw7.5kw
Oil Pump Motor Power1.5 x 1 kw1.5 x 1 kw1.5 x 1 kw1.5 x 1 kw
Weight2990kg4070kg7000kg11840kg
Overall Size3421mm*1790mm* 1060mm4348mm*1730mm *1258mm4670mm*2150mm*1500mm3670mm*2517mm* 2050mm
Conveyor Motor Power3kw3kw3kw3kw
