• Model NO.：HGJ - 300A
• Warranty：1 Year
• Customized：Customized
• Condition：New
• Color：Multi Color
• Main Motor：7.5kw
• Input Material Size：3-5mm
• Input Moisture：20-35%
• Output Moisture：10-15%
• Capacity：300-400 Kg,H
• Fuel Consumption：60-80kg,H
• Pipe Diameter：300mm
• Cyclone Diameter：900mm
• Keyword 1：Sawdust Dryer
• Keyword 2：Biomass Dryer
• Transport Package：Wooden Case
• Specification：6.5 CBM
• Trademark：AG
• Origin：Zhengzhou, China
• HS Code：84193200
• Production Capacity：10 Sets Per Month

Basic Info.

Model NO. HGJ - 300A Warranty 1 Year Customized Customized Condition New Color Multi Color Main Motor 7.5kw Input Material Size 3-5mm Input Moisture 20-35% Output Moisture 10-15% Capacity 300-400 Kg/H Fuel Consumption 60-80kg/H Pipe Diameter 300mm Cyclone Diameter 900mm Keyword 1 Sawdust Dryer Keyword 2 Biomass Dryer Transport Package Wooden Case Specification 6.5 CBM Trademark AG Origin Zhengzhou, China HS Code 84193200 Production Capacity 10 Sets Per Month

Product Description

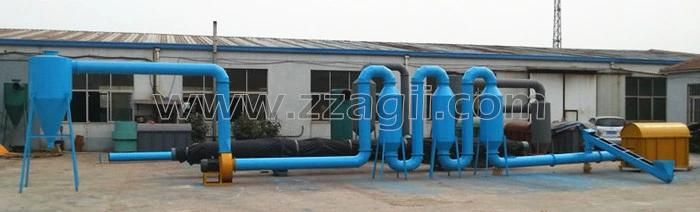

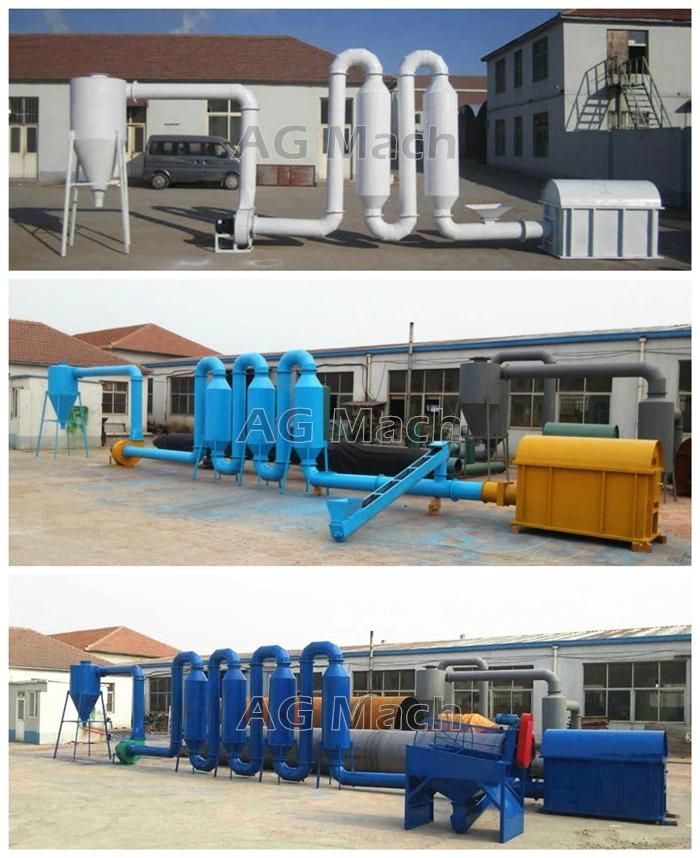

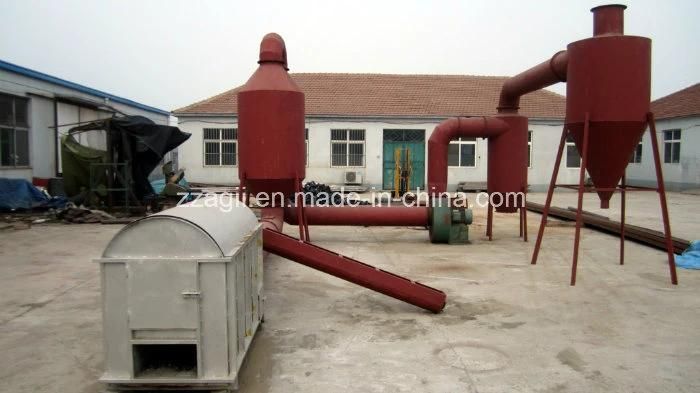

  Pipelined Sawdust Drier,  Hot Air Biomass Sawdust Drying Machine


Introduction:

Hot airflow type sawdust dryer is advanced drying equipment which also called pipeline dryer. This type of dryer is suitable for drying materials like sawdust, rice hull, milling wheat straw, corn stalks and so on. It's suitable for home use, farm use and small factory; It's mostly used for further pellet and briquette processing project.

Technical Data:

Model	HGJ- 260A	HGJ - 300A	HGJ - 350A	HGJ - 400A
Initial Moisture	25%-30%	25%-30%	20%-30%	20%-30%
Final Moisture	10%-15%	10%-15%	10%-15%	10%-15%
Drying Speed	200~250 kg/h	300~400 kg/h	600~800 kg/h	800~1000kg/h
Main Power	4 kw	7.5 kw	11 kw	15 kw
Pipe Diameter	260mm	300mm	350mm	400mm
Cyclone Diameter	780mm	900mm	1050mm	1200mm
Fuel Consumption	40-50kg/h	60-80kg/h	80-100kg/h	100-150kg/h
Dimension	9*2.5*3.1 m	16*2.5*3.2 m	18*3*3.3 m	20*3*3.5 m
Weight	1760 kg	2660 kg	3200 kg	4000 kg

Working principle of sawdust pipe dryer:

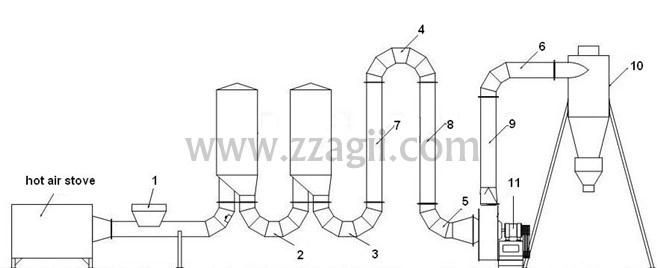

Wet material is input into the hopper. The stove (boiler) generates hot air which mixes with wet materials and then is sucked into the pipes by exhaust blower (fan) quickly. And then hot air are flowing and going through the curving pipes and buffer(drying chamber) of dryer, thus wet materials is finished to dry, and the dried materials are discharged from the outlet with air lock.



Features of Airflow dryer:

1) Raw materials should be sawdust, suitable for drying the moisture 20-40%; Final moisture 8-12%.

2) Diameter of raw materials: (3- 5mm)

3) Temperature of Hot Air: 180-250 Celsius degree.

4) This sawdust dryer reduces moisture to 8-12% with lower cost consumption and high efficiency.

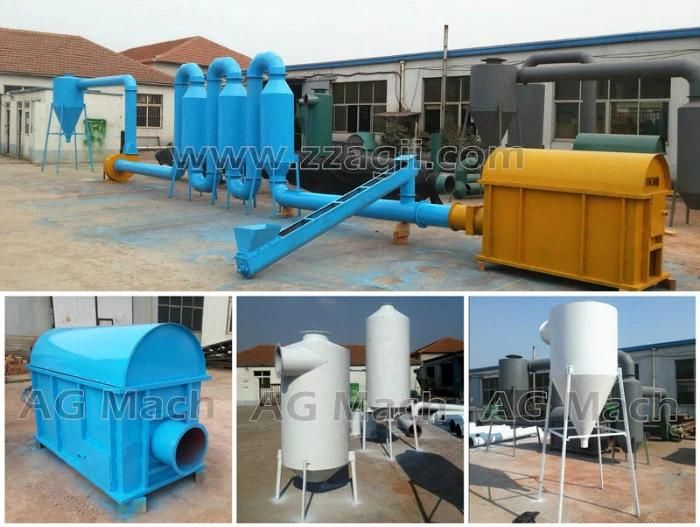

5) The biomass sawdust dryer is equipped one fuel boiler, inlet, steel pipe, exhaust blower (fan), cyclone. Wet materials are input into the hopper. The fuel boiler generates hot air which mixes with wet materials and then is sucked into the pipes by the exhaust blower (fan) quickly. And then hot air is flowing and going though the curving pipes and buffer (drying chamber) of dryer, thus wet materials is finished to dry, and the dried materials are expelled out by the exhaust blower (fan).



Operating Guide:

1). After installation, start the blower, check the running direction and see if the suction at the material inlet is normal.

2). Tie up a bag whose both ends are open around the outlet of the dust catcher.

3). Feed the raw material to the hopper. Remove or screen out large particles mixed in the material before drying, which will benefit drying speed.

4). Put fuel into the furnace and light it, start the blower. When the air temperature at the outlet of blower gets to 100°C, begin material feeding and drying process.

5). Large piece of the material at dregs-outlet must be removed, which is favorable to feeding.
