Heavy Duty Stone, Wood CNC Router Engraving Machine, Stone CNC Router
Jinan Guanjiahong CNC Machinery Co., Ltd.- Type：Engraving Router
- Spindle Layout：Spindle Over
- Spindle Number：as Your Require
- Feed Mode：Mechanical
- Controlling Mode：CNC
- Certification：CE
Base Info
- Model NO.：1825-2-2
- Customized：Customized
- Condition：New
- Color：Customized
- Control System：Nc Studio, Shanghai
- Guild Rail：PMI , Hiwin Square Rail
- Ball Screw：PMI, Taiwan
- Derive Motor：Yaskawa Servo
- Transport Package：Plywood Case
- Specification：SGS
- Trademark：DONGTONG
- Origin：Shandong China
- HS Code：84609090
- Production Capacity：50 Sets Per Month
Description
Basic Info.
Model NO. 1825-2-2 Customized Customized Condition New Color Customized Control System Nc Studio, Shanghai Guild Rail PMI / Hiwin Square Rail Ball Screw PMI, Taiwan Derive Motor Yaskawa Servo Transport Package Plywood Case Specification SGS Trademark DONGTONG Origin Shandong China HS Code 84609090 Production Capacity 50 Sets Per MonthProduct Description

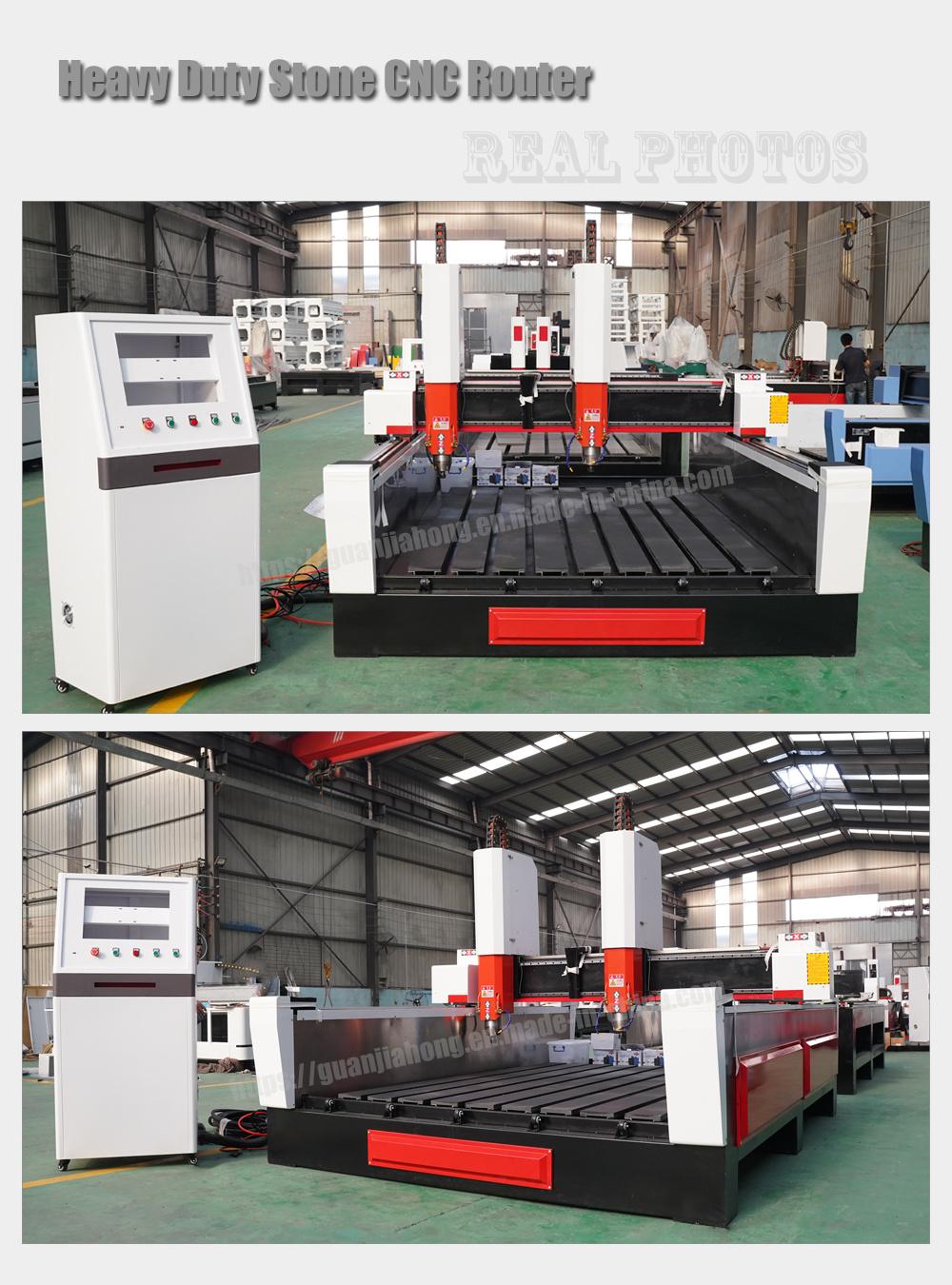

Two spindle Heavy duty stone Cnc Router machine from professional cnc router machine manufacturer.

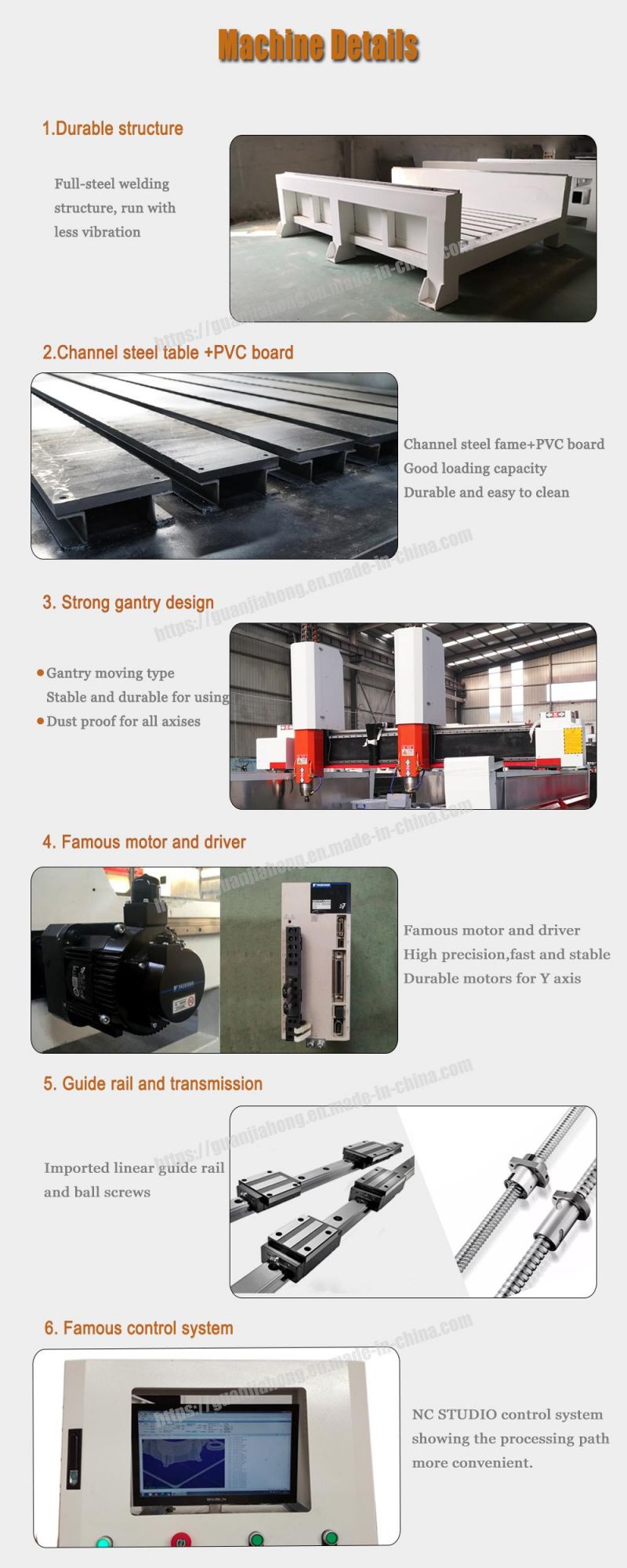

1. Model 1825-2-22. Advanced control system has memory of break point, functions of power-off recovery, continuation on break point, time anticipation.3. Imported servo motor and driver, easy to handle, easy to learn.4. Thick-walled steel welded structure, strong load capacity,
5. Heavy weight makes machine runs without jitter
6. Imported ball screws and linear guide rail, high accuracy, move faster..

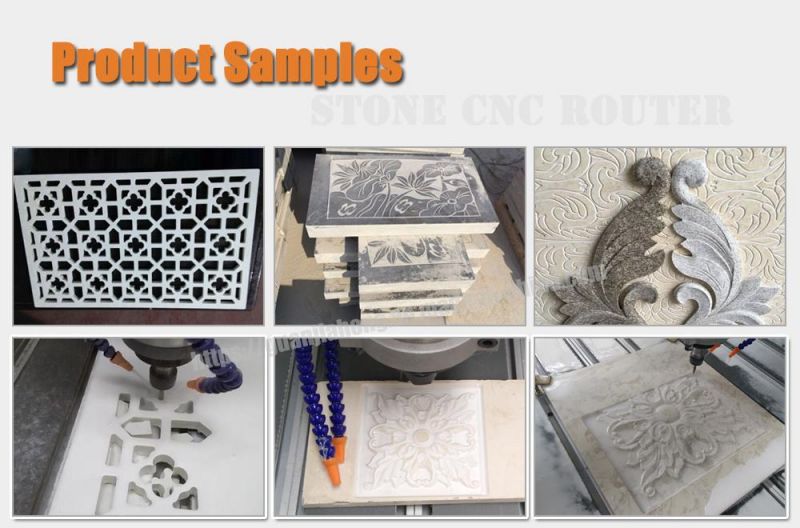

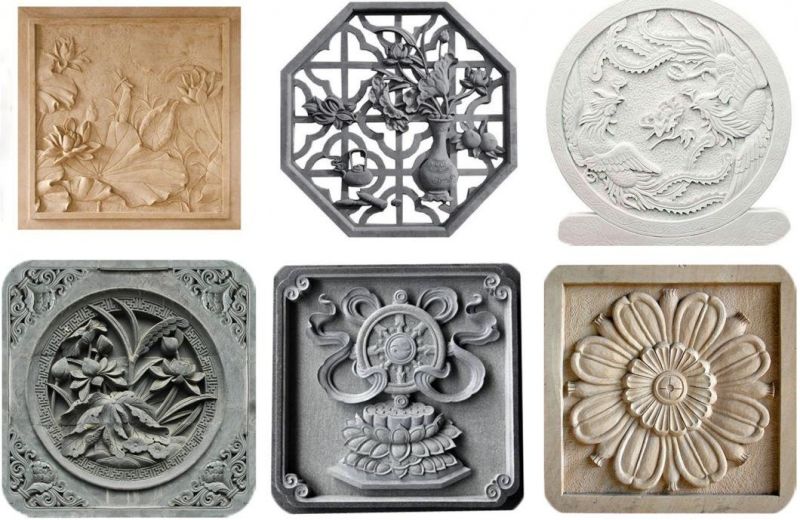

1. Materials: wood, acrylic, MDF, soft metal, PVC,stone.....2. Industry: woodworking,advertisement, artwork industry, exhibition, decoration .
| NO | Performance index | Performance index | Parameter |
| 1 | Working area | X area | 1800mm |
| Y area | 2500mm | ||
| Z area | 300mm | ||
| 2 | Table size | 1300mm*2500mm | |
| 3 | Accuracy | Working precision | 0.05mm |
| Repositioning precision | 0.05mm | ||
| 4 | Drive mode | X axis | Helical rack and pinion gear |
| Y axis | Helical rack and pinion gear | ||
| Z axis | Ball screw | ||
| 5 | Speed | Max traverse speed | 30000mm/min |
| Max engraving speed | 8000mm/min | ||
| 6 | Spindle (water-cooling) | Spindle power | 5.5KW |
| Spindle speed | 0_24000r/min | ||
| 7 | Working mode | Stepper | |
| 8 | Operating voltage | AC220V/50HZ | |
| 9 | Command code | G code | |
| 10 | Operating system | NC Studio | |
| 11 | Net weight | 2520KG |
1. Technical support by phone, email or MSN/ Skype around the clock2. Friendly English version manual.
3. Engineer available to service machinery overseas. but the buyer should pay the fee.
4. Under normal usage, 1 year for the whole machine and 6 months for spindle
5. Normal machine is properly adjusted before dispatch.
6. Free training advice towards our machine in ourfactory.
7. Free suggestion and consulting, technical support and service by email/fax/tel and tel and lifetime technical support.
If you have specific requirement for two spindles heavy duty stone cnc router, please contact with us
Customization is available.
