Big Size 4 Axis Statue Making Machine
Linyi Chaoda International CNC Technology Co., Ltd.- Type：Engraving Router
- Spindle Layout：Horizontal
- Spindle Number：Single-Spindle
- Feed Mode：Mechanical
- Controlling Mode：CNC
- Certification：CE, ISO
Base Info
- Model NO.：JCT1530L
- Customized：Customized
- Condition：New
- Color：Customized
- Machine Type：Big Size 4 Axis Statue Making Machine
- Spindle：9kw Water Cooled*10PCS
- Spindle Speed：0-24000rpm,Min
- Motor：Japan Yaskawa Servo Motor and Driver
- Control System：4 Axis Taiwan Syntec Control System
- Program Software：Powermill
- Max.Working Size：1000mm Diameter, 2500mm Length
- Table Working Size：1500*3000*500mm
- Wrranty：12 Months, Lifetime After Sale Service
- Axis：X, Y, Z,a Axis
- Transport Package：Standard Export Packing
- Specification：3d foam cnc machinery
- Trademark：CHAODA
- Origin：China
- HS Code：8464909000
- Production Capacity：100sets,Month
Description
X,Y,Z,working space
1500*3000*500mm
Rotary working space
0mm-1000mm diameter/ 2500mm length
Lathe bed structure
T-extrusion,Thick Steel frame
Table surface
Aluminium T-slot with clamps
X structure
Rack and pinion, HIWIN linear square rail
Y structure
Rack and pinion, HIWIN linear square rail
Z structure
Ball screw, HIWIN linear square rail
Resolution
±0.02mm
Reposition accuracy
±0.05mm
Max. rapid
0-60000mm/min
Max. working speed
0-30000mm/min
Spindle power
9kw italy HSD air cooling ATC spindle
Tool magazine
Linear type auto tool changer system,8 tools
Spindle speed
0-24000RPM
Working mode
Japan YASKAWA Servo motor and driver
Working voltage
AC380V ,3Ph,50HZ/60Hz
Command code
G code(*uoo,*nc,*mmg, *plt)
Operating system
4 axis WEIHONG control system
Collet
ER32

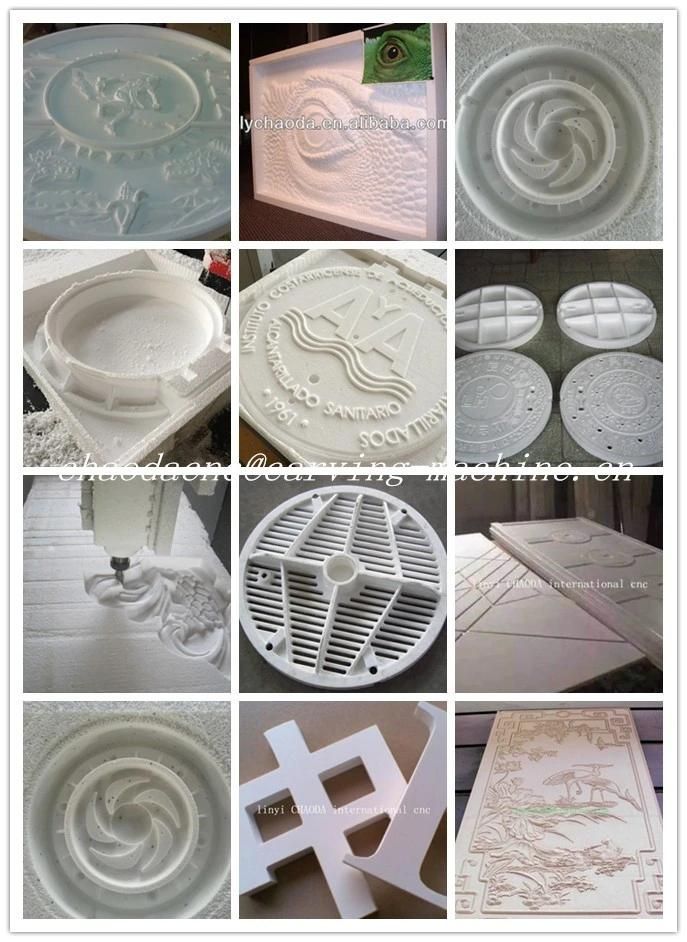

Sample pictures
This machine with multifunctions. with flat table can carve panel products. with big rotary device can carve big size 3d sculptures statues human bodies.
Flat sample pictures
Rotary device sample pictures
Certifications
Our Service

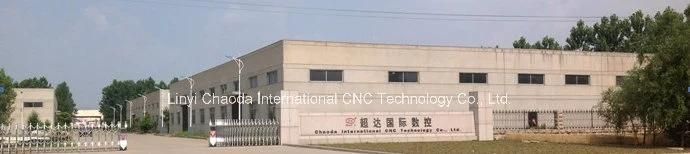

Factory
