• Customized：Customized
• Condition：New
• Color：Customized
• Spindle Power：Italy Air Cooling Spindle
• Bed Structure：Welded Bed Structure
• Inverter：Fuling Inverter
• Control System：Taiwan Syntec Control System
• Motor：Japan Yaskawa Servo Motor
• Transmission：Helical Rack
• Application：Wooden Industry
• Guide Rail：Taiwan Hiwin Square Guide Rail
• Spindle Speed：6000-24000
• Power：14kw
• Transport Package：Plywood Package
• Specification：1300*2500*300mm
• Trademark：ZHONGKE
• Origin：Jinan Shandong
• HS Code：8465990000
• Production Capacity：100

Basic Info.

Customized Customized Condition New Color Customized Spindle Power Italy Air Cooling Spindle Bed Structure Welded Bed Structure Inverter Fuling Inverter Control System Taiwan Syntec Control System Motor Japan Yaskawa Servo Motor Transmission Helical Rack Application Wooden Industry Guide Rail Taiwan Hiwin Square Guide Rail Spindle Speed 6000-24000 Power 14kw Transport Package Plywood Package Specification 1300*2500*300mm Trademark ZHONGKE Origin Jinan Shandong HS Code 8465990000 Production Capacity 100

Product Description


1.Has the function of re-carving after break point and power failure

2.Equipped with professional vaccum system ,adopt integral adsorption base with the high strength engineering plastics surface

3.Imported high power air cooling spindle from Italy,low sway in axial,strong cutting force,long lifetime,low noise

4.Large compatibility of software such as type3,artcam,CAD or CAM etc.

5.Advanced cnc processing system has powerful functions and humanized operation,as well as can receive date through U disk or network

6.The lathe is founded by welded steel that ensures the high stability

7.Strong dust collector ensures site cleanliness during the machine operate

8.Auto oil lubricating system is very convenient

9.Taiwan SYNTEC control system has powerful function and humanized

10.Taiwan HIWIN square guide rail with high precision and can bear large load when it's running

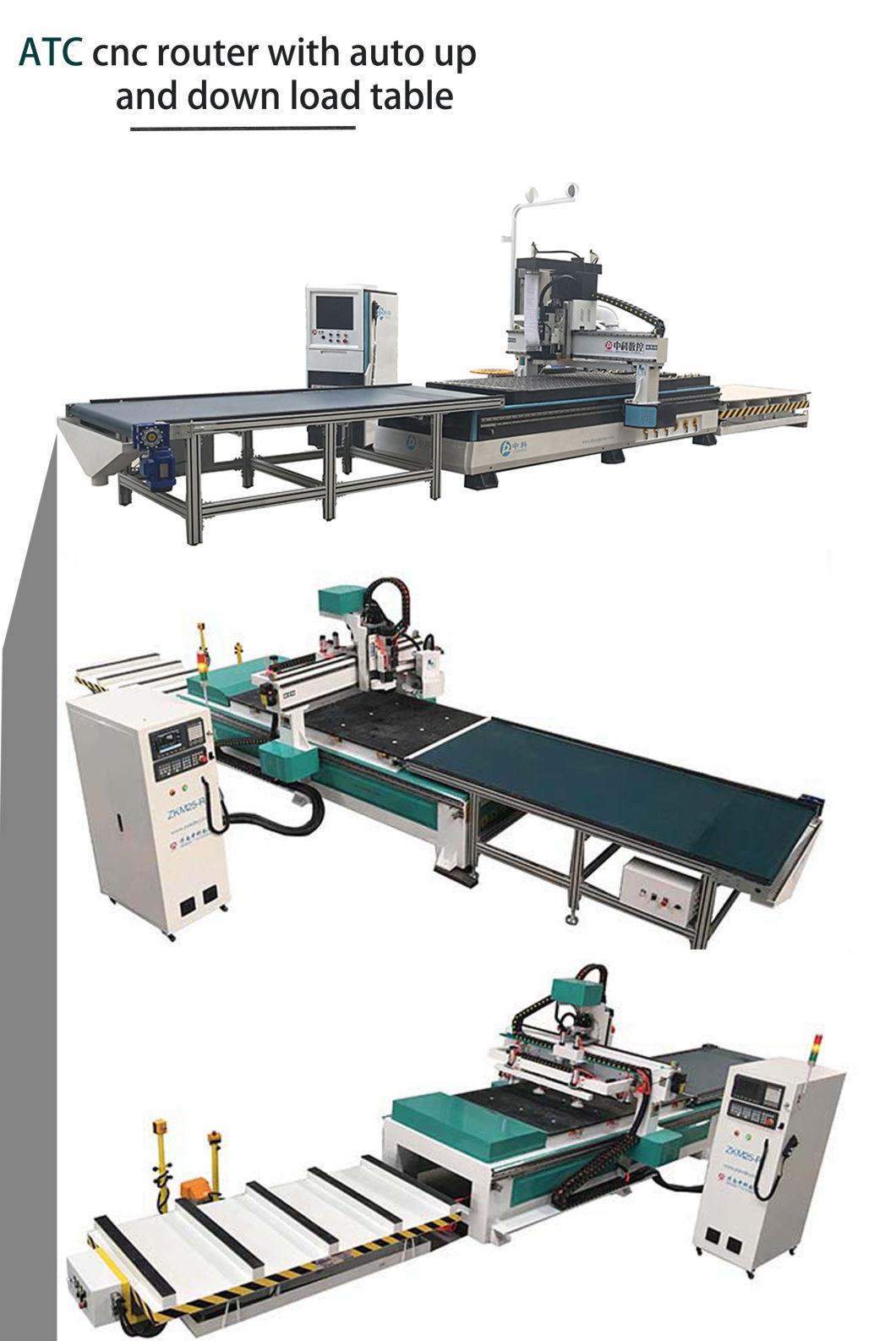

11.Auto unloading table and auto loading table make the machine extreamly convenient and humanized when it's working

12.Japan YASKAWA servo motor and driver with high speed and high accuracy enhance work efficiency.


Specification:

Model	M-25H
X,Y,Z axis working area	1300*2500*300mm
Whole structure	Welded Steel gantry structure
Table surface	vacuum adsorption table with 5.5KW vacuum pump
X,Y,Z structure	Taiwan HIWIN Square linear guide rail with 30mm diameter
X,Y structure	Rack and pinion transmission, high speed and more stable; Y -double motor drive
Z structure	Imported ball screw, high precision
Max. idling speed	60m/min
Max. working speed	30m/min
Repositioning Accuracy	±0.05mm
X Y Z working Accuracy	< 0.02mm
Spindle	Italy HSD air cooling spindle 9KW
Spindle rotating speed	6000-24000rpm/min
Diameter of tools	Φ3.175 -Φ20
Collect size	ER 32
Operation language	G code (plt, mmg, uoo, bmp)
Driving system	Japanese YASKAWA servomotor
Operating system	Taiwan SYNTEC control system
Working voltage	AC380V, 3ph, 50-60Hz
Software	Type3, Wentai, Artcam (optional)

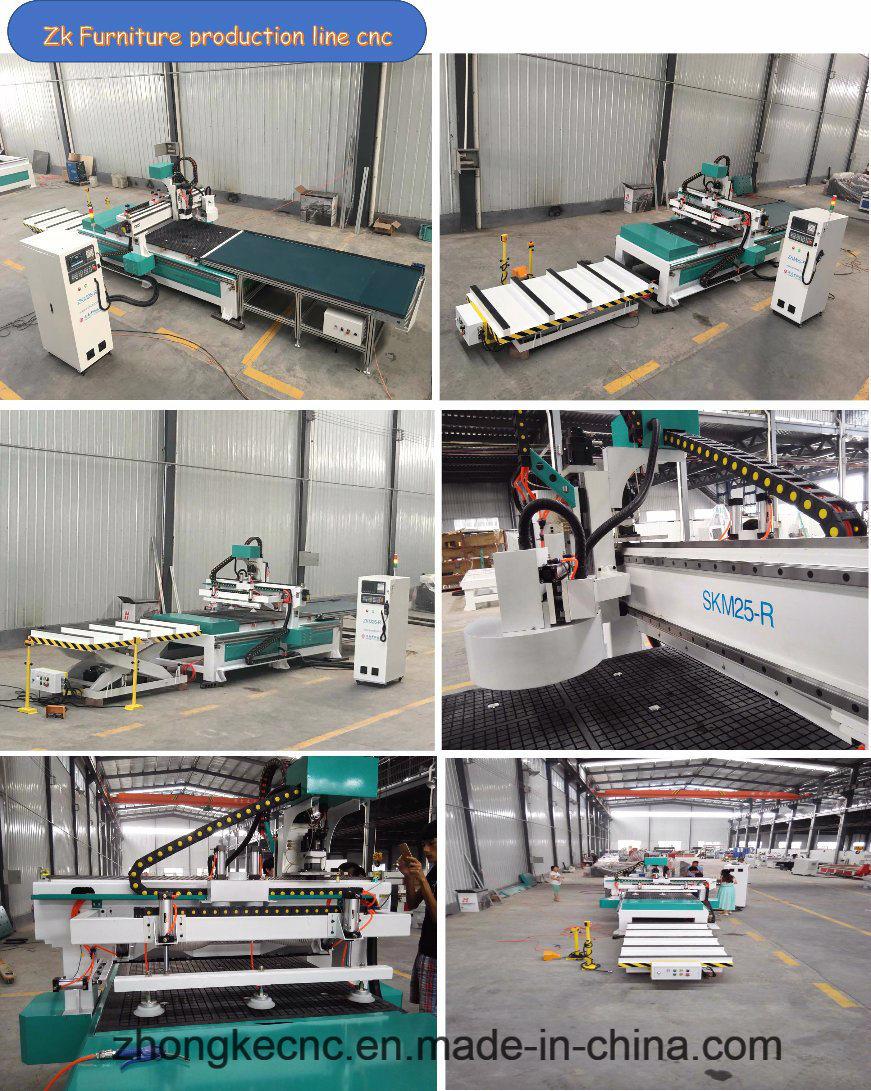

Configuration:


Samples:

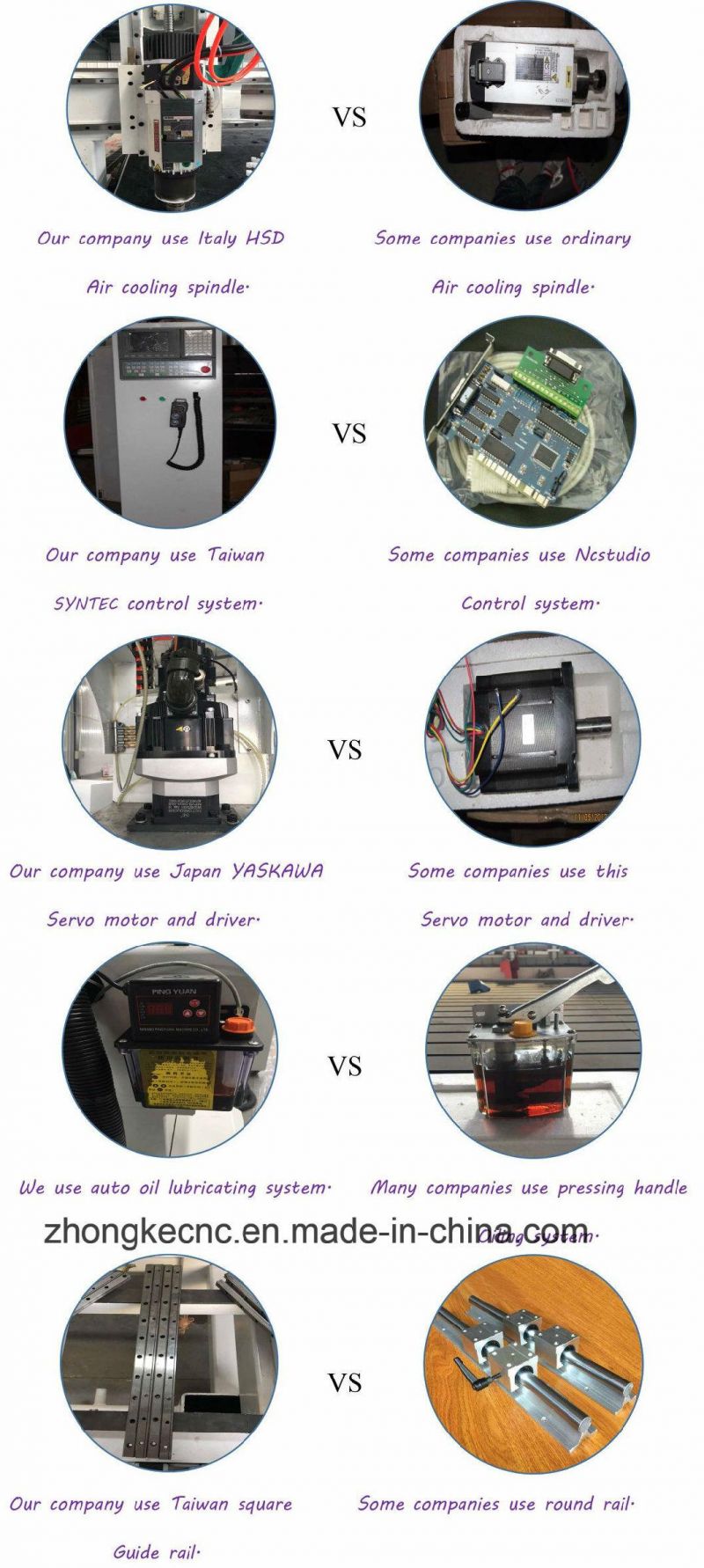

Our advantage:
