Automatic Wood Veneer Rotary Clipper Machine/Wood Veneer Cutting Machine

Linyi Sin San Lin Smart Machinery Co., Ltd.
  • Certification：CE, ISO, FDA
  • Type：Floor Lathe
  • Power Source：Electric
  • Transport Package：Container
  • Specification：5280x2350x1135mm
  • Trademark：METROMACH

Base Info

  • Model NO.：SL1350
  • Origin：China
  • Production Capacity：10 Sets, Month

Description

Basic Info.

Model NO. SL1350 Origin China Production Capacity 10 Sets/ Month

Product Description

Product DescriptionCNC Wood Veneer Rotary Clipper Cutting Machine1. Product Features:
CNC rotary clipper machine is mainly used together with the peeling machine, continuous mesh dryer and so on.

1.High automatic degree, knife shaft and veneer transmission adopt the servo motor control system, can cut the both ends of the veneer automatically.
2.High production efficiency, reduce the production cost, the maximum clipping and transmission speed can up to 100 m/min.
3. Easy to operate, after setting the program it can finish the clipping work easily.
4. The main frame of the machine is welded by best quality no.1 carbon steel plate, it is connected together by two uprights and upper and lower two crossbeams which have high rigidity. The main spindle motor is installed on the upper crossbeam, it drives the knife spindle through the synchronous belt, view the transmission principle diagram

2 Technical Parameters:

  ModelSL1350/3
Max cutting width(mm)1400
Knife length(mm)1500
Max speed (m/min)42
Knife Qty1pc
Power2.95kw
Overall size5280x2350x1135
weight1400kg

3. More Pictures

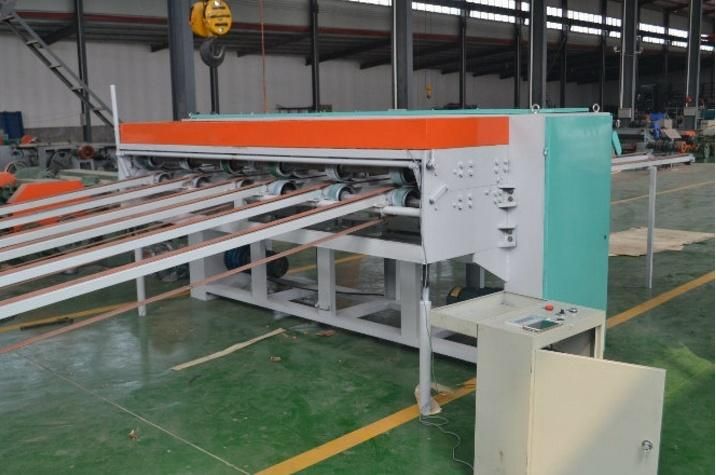

Automatic Wood Veneer Rotary Clipper Machine/Wood Veneer Cutting Machine

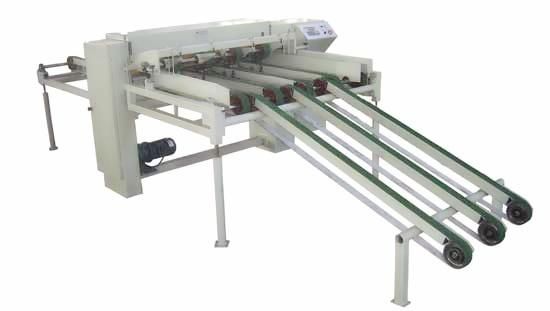

Automatic Wood Veneer Rotary Clipper Machine/Wood Veneer Cutting Machine
Automatic Wood Veneer Rotary Clipper Machine/Wood Veneer Cutting Machine
