Solid Wood 4 Side Planer Moulder Four-Side Moulder Woodworking Machinery with 4 Spindles
Qingdao Zhongding Machinery Co., Ltd.- Warranty：1 Year
- Type：Four-Side Planer
- Working Depth：100-200mm
- Working Width：200-400mm
- Drivetrain：Feed Drivetrain
- Enter Method：Mechanical
Base Info
- Model NO.：MB4023
- Motor Power：＞10Kw
- Cutter Shaft：4
- Spindle Speed：＞5000rpm
- Process Type：Heavy Processing
- Certification：CE, ISO
- After-sales Service：Video Technical Support
- Transport Package：Plywood Case
- Specification：3100*1600*1600mm
- Trademark：QDZD
- Origin：China
- HS Code：84659200
- Production Capacity：200 Set, Month
Description
Basic Info.
Model NO. MB4023 Motor Power ＞10Kw Cutter Shaft 4 Spindle Speed ＞5000rpm Process Type Heavy Processing Certification CE, ISO After-sales Service Video Technical Support Transport Package Plywood Case Specification 3100*1600*1600mm Trademark QDZD Origin China HS Code 84659200 Production Capacity 200 Set/ MonthProduct Description

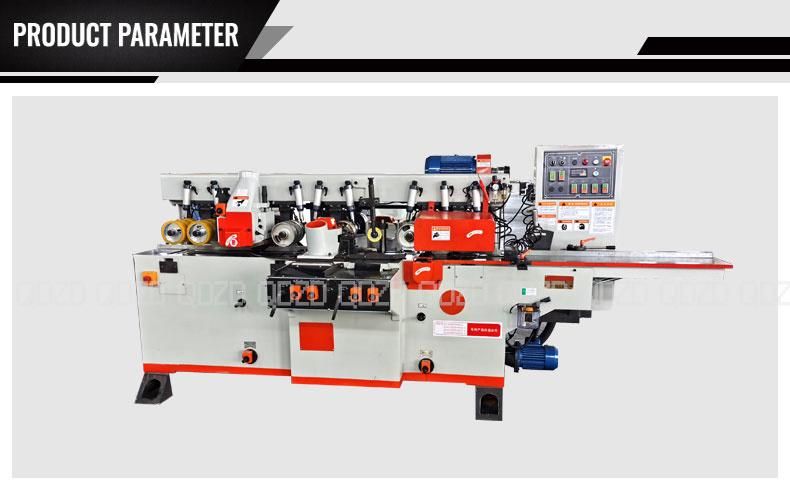

Solid Wood 4 Side Planer Moulder Four-side Moulder Woodworking Machinery With 4 Spindles
Technical Specification:
| Model | MB4023 |
| Working width | 20-230mm |
| Working thickness | 8-125mm |
| Feeding speed | 5-20m/min |
| Feeding power | 2.2kw |
| Lower horizontal shaft power | 4kw |
| Upper horizontal shaft power | 7.5kw |
| Max. Blade mounting dia. | 120mm bottom 1, 140/rest, 140/base 1, 140/base 2, 140/rest |
| Left and right vertical shafts power | 5.5~5.5kw |
| Beam lifting power | 0.75kw |
| Air pressure | 0.3-0.4Mpa |
| Total power | 25.45kw |
| Overall dimension | 3100*1600*1600mm |
| Weight | 2500kgs |
Advantages:
1. 3 sets of upper and lower driving wheels are added in front of the upper knife, so that the feeding is smoother.2. The bearing at the feeding part has good installation stability and high precision.3. The center console is a whole with high precision.
