Two Side Thickness Planner Machine for Sale

Qingdao Zhongding Machinery Co., Ltd.
  • Warranty:1 Year Since Received Machine
  • Type:Double-sided Pressure Planer
  • Working Depth:100-200mm
  • Working Width:500-700mm
  • Drivetrain:Worktable Elevating Drivetrain
  • Enter Method:Mechanical

Base Info

  • Model NO.:MB206H
  • Motor Power:>10Kw
  • Cutter Shaft:Customized
  • Spindle Speed:<5000rpm
  • Process Type:Heavy Processing
  • Certification:CE, ISO
  • After-sales Service:Video Technical Support, Online Support
  • Transport Package:Plywood Box
  • Specification:2250*1000*1700 mm
  • Trademark:QDZD
  • Origin:China
  • HS Code:8465920000
  • Production Capacity:40 Sets,Month

Description

Basic Info.

Model NO. MB206H Motor Power >10Kw Cutter Shaft Customized Spindle Speed <5000rpm Process Type Heavy Processing Certification CE, ISO After-sales Service Video Technical Support, Online Support Transport Package Plywood Box Specification 2250*1000*1700 mm Trademark QDZD Origin China HS Code 8465920000 Production Capacity 40 Sets/Month

Product Description


Qingdao zhongding machinery which is a factory and company specializing of manufacture and exportation, has more than 15 years experience in woodworking machines.  Welcome to visit our factory in Qingdao.
Two Side Thickness Planner Machine for Sale
Two Side Thickness Planner Machine for SaleTwo Side Thickness Planner Machine for SaleTwo Side Thickness Planner Machine for Sale

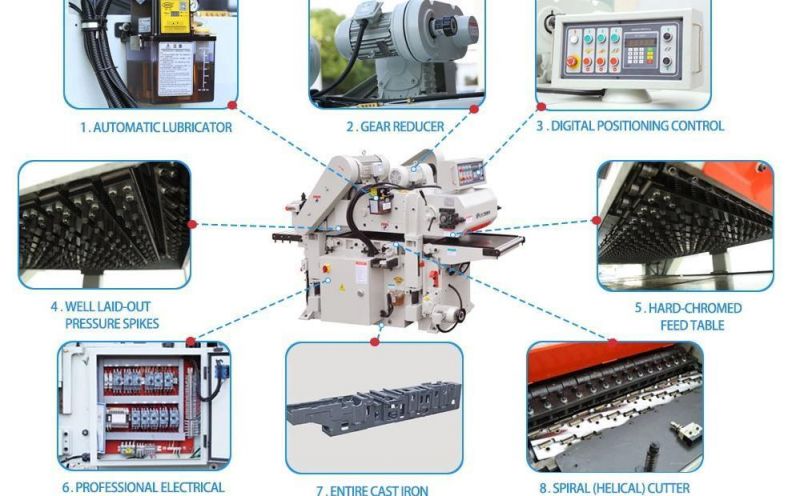

Two Side Thickness Planner Machine for SaleTwo Side Thickness Planner Machine for Sale1. This machine adopts integral casting body with stable performance, good precision and good rigidity.

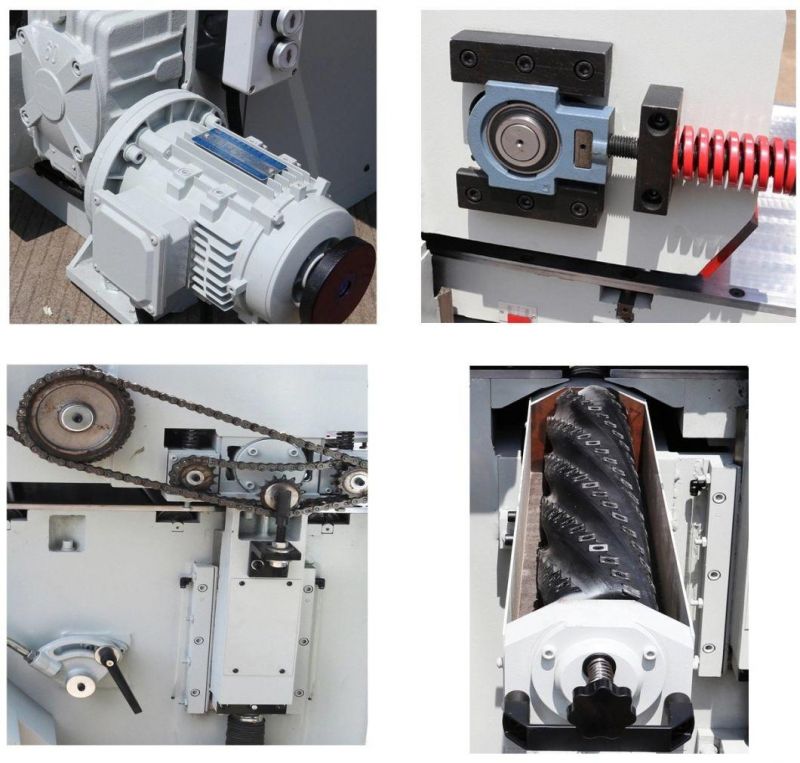

2. The entire Cast Iron - Chromed In-feed table is normalization heat treated for maximum stability. In-feed Table & Fence adjustment is quickly accomplished by means of a quick-setting levers.

3. The upper and bottom cutter head are equipped with imported heavy-cutting spiral cutter, which have been dynamically balanced and equipped with ternational brand SKF bearings for precision assembly, with stable performance, good accuracy and good durability.

4. The pressure spikes are in an overlapped layout with a minimum of gaps that hold the workpiece firmly and evening ensuring shake-free feeding, even for short workpiece.

5. The thickness of cut can be controlled by a digital positioning control. Once the preset position is reached, the table elevation stops automatically.

6. The automatic lubricator delivers frequent lubrication oil to the chain.

7. Reduce wear caused by temperature rise and improve efficiency of power transmission.

8. High Quality electrical products and appliances insure the whole machine run well with a stable performance.
