• Model NO.：GD2400
• Panel Thinkness：10-60mm
• Min.length panel：120mm
• Min.width panel：80mm
• Manufacturing Principles：Glue Tank Overhead
• Customized：Customized
• Edge Banding Thickness：0.4-3mm
• Banding Tape Width：10-50mm
• Mini Width of Wood：>=80mm
• Work Piece Length：>=120mm
• Heating Power：0.75kw
• Feeding Motor Power：0.75kw
• Glue Spreading Motor Power：0.37kw
• Polishing Motor Power：0.18kw*2
• Fine Trimming Motor Power：0.75kw*2
• Feeding Speed：13m,Min
• Air Pressure：0.7MPa
• Machine Size：4500*900*1500mm
• Gw：2200kg
• Transport Package：Plywood Packing
• Specification：4500*900*1500mm
• Trademark：Guandiao
• Origin：Jinan
• Production Capacity：10000 Sets,Year

Basic Info.

Model NO. GD2400 Panel Thinkness 10-60mm Min.length panel 120mm Min.width panel 80mm Manufacturing Principles Glue Tank Overhead Customized Customized Edge Banding Thickness 0.4-3mm Banding Tape Width 10-50mm Mini Width of Wood >=80mm Work Piece Length >=120mm Heating Power 0.75kw Feeding Motor Power 0.75kw Glue Spreading Motor Power 0.37kw Polishing Motor Power 0.18kw*2 Fine Trimming Motor Power 0.75kw*2 Feeding Speed 13m/Min Air Pressure 0.7MPa Machine Size 4500*900*1500mm Gw 2200kg Transport Package Plywood Packing Specification 4500*900*1500mm Trademark Guandiao Origin Jinan Production Capacity 10000 Sets/Year

Product Description

Product Description

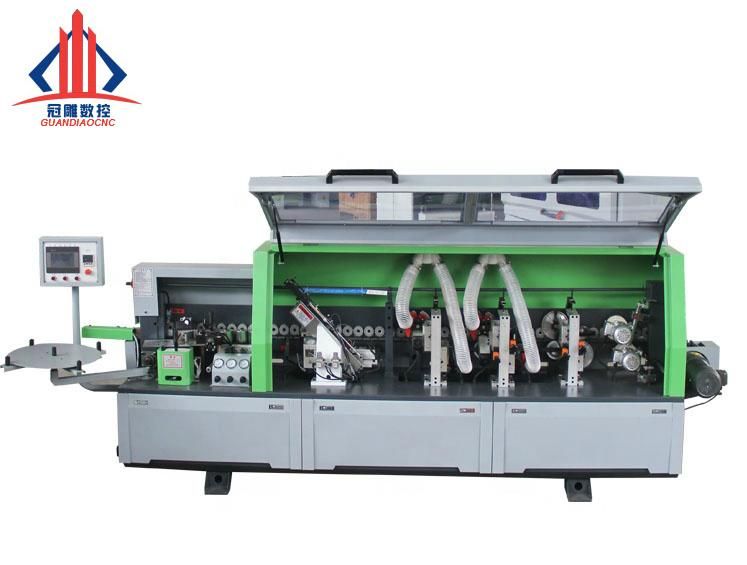

Wood Edge Banding Machine



Brief introduction
1.End triming and triming unit adopt imported high-motor, it is high precision, lower noise,long life, processing stability.
2.Adopt imported frequency converter,action is sensitive and reliable and with good stability.
3.The function is gluing-end trimming-fine finishing-scraping-buffing. it is aluminum beam.

Wood Edge Banding Machine technical parameters

Model	GD-2400
Edge banding thickness	0.4-3mm
Banding tape width	10-50mm
Mini width of wood	>=80mm
Work piece length	>=120mm
Heating power	0.75kw
Feeding motor power	0.75kw
Glue spreading motor power	0.37kw
Polishing motor power	0.18kw*2
Fine trimming motor power	0.75kw*2
Feeding speed	13m/min
Air pressure	0.7MPA
Machine size	4500*900*1500mm
GW	2200KG

Wood Edge Banding Machine details

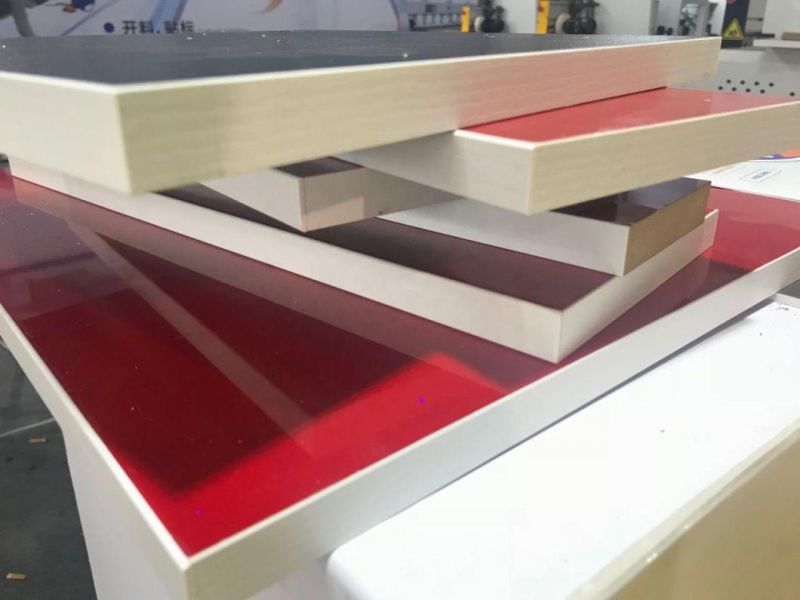

Wood Edge Banding Machine samples



Our Services
1. Delivery and Lead time
Machine will be proper packed and loaded in container, as multiple loaded to save space or wooden carton sealed for better transportation.
Machine will be tidy and clean , with anti rusty oil brushed on mechanical parts to prevent rusty on sea transportation.
A series pictures and videos will provided as machine finished for help customer understand the performance of the machine.
2.Warranty:
Machine warranty is 12 months.  Machine as normal using and maintenance condition, if get any problem, will provide spare parts for free.  Out of warranty, will collect the accessories cost.  Technical support for maintenance or fix on time and all the time.
3. Technical support:
Manual and video illustration of the machine will be provided
24 hours online by Ali Trademanager, Skype, Email, QQ, or telephone
Technical support by email, whatsapp, wechat,imo and skype available on time.4.After sale service:Normally the machine will sent on whole except the machine is over size to load container.  so the machine arrange in production immediately after get electricity (air and water some model needed).
The video for operation will provide.
Training at our workshop or on site is available.After sale-service5.We accept the ODM,OEM If you have other needs, please let me know

Packaging & Shipping




Company Information
Jinan Guandiao CNC Equipment Co., Ltd is an innovative enterprise engaged in research and development,production, sales and good after- sales service. The company's main products include Panel furniture CNC cutting machine, Woodworking CNC Machining Center, CNC router , Multi-head cylinder CNC engraving machine, Styrofoam CNC router, 3D scanner, Vacuum membrane press machine, Vacuum forming machine, Laser engraving and cutting machine, etc. Products applied to the panel furniture, European furniture, solid wood furniture, advertising, stone, building decoration, handicrafts, mold making, staircases column, PCB printing, automotive industry, packaging industry, shipbuilding, wood manufacturing, watches and clocks, accessories, seals and other industries.
After nearly 10 years of development, the company has a perfect technical team, clear labor division, ensuring the high quality products sent to the whole country, to the world.
We offer our customers best solutions, including product design, installation, training, aftersales service, etc. With the market development demand as the orientation, we stick to innovate and improve technology continuously, to the peak of CNC industry is our relentless drive.
At present, the company's products are sold to major and small cities and regions in China.
The company has independent import and export right, products are exported to southeast Asia, the Middle East, Africa, Europe and the United States and other places, and with its excellent quality, excellent performance and perfect after -sales serves won the customer the consistent approval.
