Long Service Life 4 Side Moulder with Horizontal Saw Blade Machine
Shandong STX Machinery Trade Co., Ltd.- Warranty：18 Months
- Type：Four-Side Planer
- Working Depth：100-200mm
- Working Width：160mm
- Drivetrain：Feed Drivetrain
- Enter Method：Mechanical
Base Info
- Model NO.：M616HS
- Motor Power：＞10Kw
- Cutter Shaft：6
- Spindle Speed：＞5000rpm
- Process Type：Heavy Processing
- Certification：CE
- After-sales Service：Online Service
- Color：Standard
- Advantage：Long Service Life
- Application：Woodworking Factory
- Function：Planer and Moulder
- Extra Support：Roller Conveyor
- Working Thickness：8-120mm
- Max. Working Width：160mm
- Spindle Qty.：6
- Transport Package：Steel Pallet
- Origin：China
- HS Code：846592
- Production Capacity：2000 Sets,Year
Description

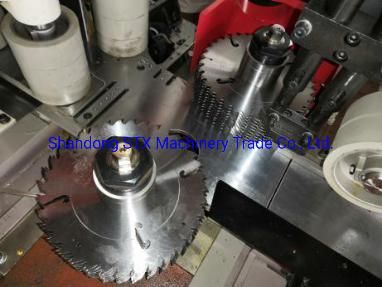

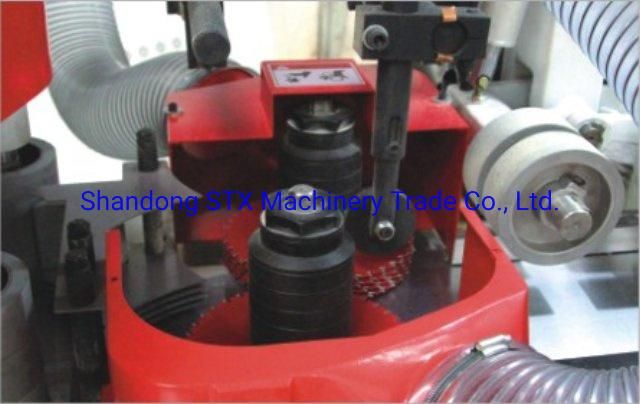

Tool diameter 125mm The 1st upper shaft 125-160mm Right saw shaft 180-250mm Left saw shaft 180-250mm Saw shaft speed 4500r/min Saw shaft diameter 50mm Vacuum tube diameter Outside dimension L*W*H 4450*1800*1720mm Left and right sawing front and back The four-sided planer combined with the left and right multi-blade saw functions can use thinner saw blades for processing, the sawing path is reduced, material saving, multi-blade processing at one time, and high efficiency Package & Delivery Since established in 1990s years, we keep our attention on Four side moulder, Double Side Moulde, Rip saw,Optimizing cross cut saw and double end tenon machine. Depand on powerful R&D capability, strong machining capacity and high quality products and service, we have becoming a leader manufacturer in China The 1st lower shaft The right vertical shaft 125-160mm The left vertical shaft 125-160mm Feeding roller diamter 140mm 140mm Weight 3500kg
Detailed Images
Rapidly flip-short feeding device This mechanism effectively menhance the smooth feeding of short material, auxiliary feed wheel has a drive power to make feeding more brisk. Feeding off the wheel, easy to replace the tool and calibrated

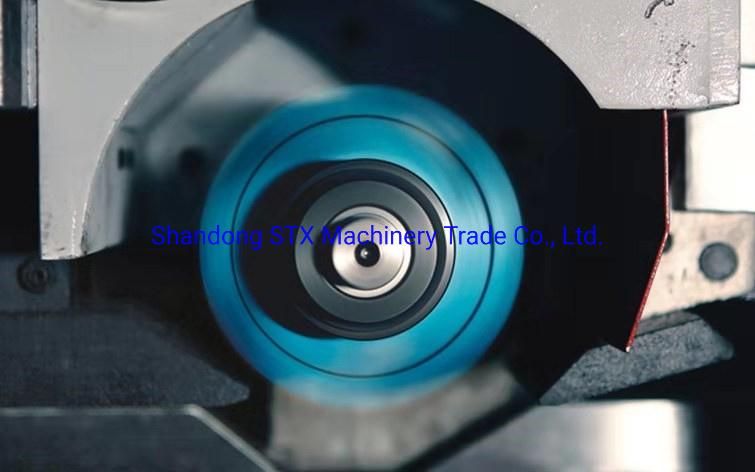

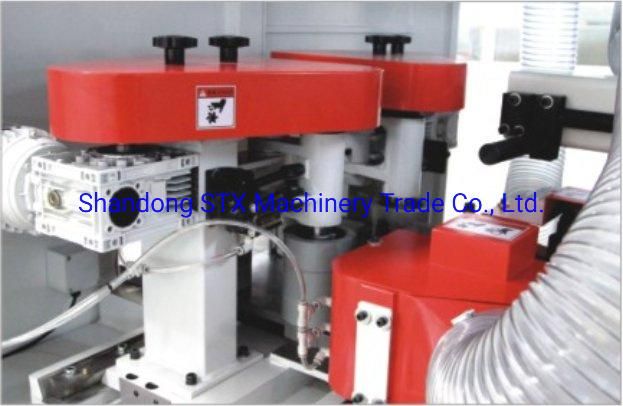

Heavy cutting gear box Nourishment wheel via a universal joint and the gearbox, ensure no power loss. Feeding extremely smooth, powerful driving force, high feedind accuracy Euipped with shaft cooling and cleaning function, it can inrease the lift of saw blades and ensure the precision of cutting

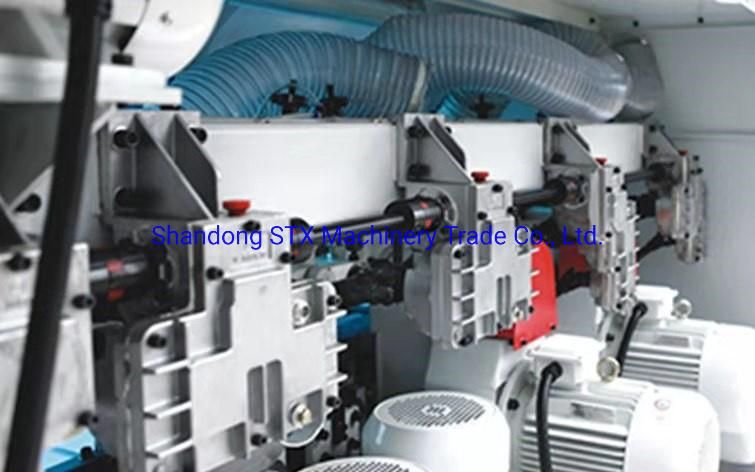

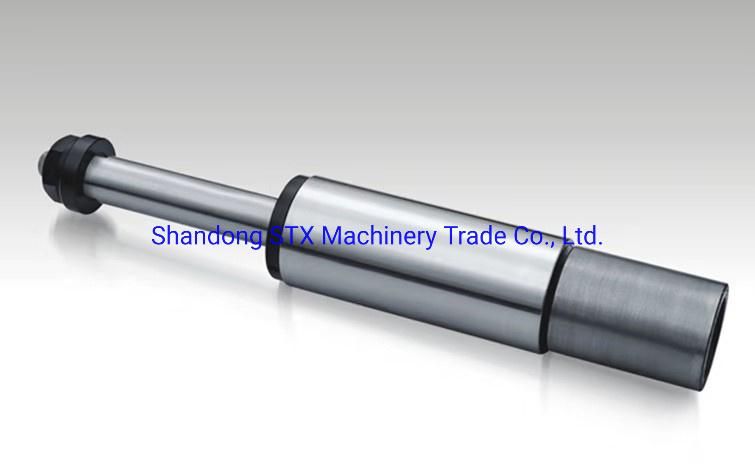

Four groups of action wheels guarantee smooth material outfeeding after machining Every spindle is tested and assembled in dust free room, with SKF bearing on the double end before finished. Absolute smooth running of the spindleensure the finished surface without any roughness

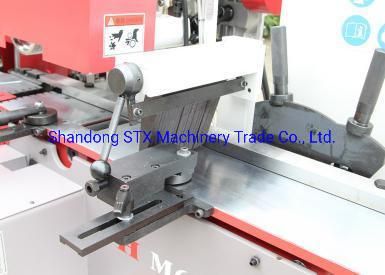

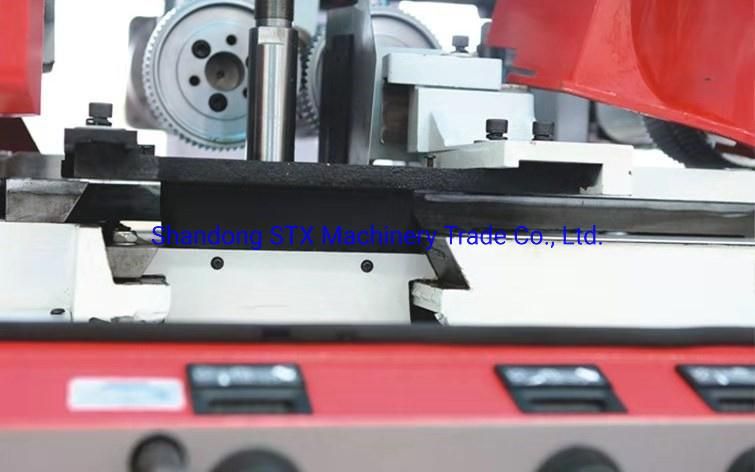

Double-deck working table on left and right spindle, guaranteed working verticality Front and rear press plate can be adjusted respectively, although the big variation in wood thickness, also work pieces can be firmly pressed down on the working table

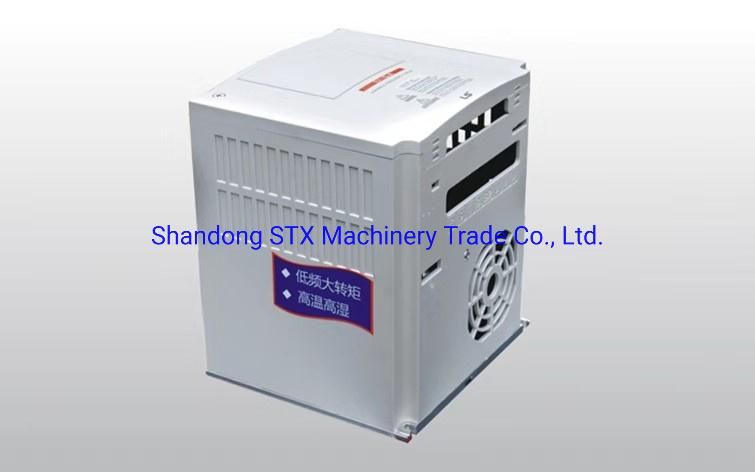

Feeding frequency inverterDigital display, easy operation, energy saving, reduction of mechanical transmission wear. Anti-return system, ensure the operator not to be damaged by returned wood chips
Processed effect
