• Model NO.：MJD344
• Precision：High Precision
• Certification：CE
• Customized：Customized
• Condition：New
• Color：Customized
• After-sales Service：Online Support
• Cutting Speed：25-35m,Min
• Cutting Thickness：9-75mm
• Mini Material Length：350mm
• Max Cutting Section：75*125mm , 50*180mm
• Max Feeding Speed：100m,Min
• Transport Package：Wood Case
• Trademark：STX
• Origin：China
• HS Code：846591
• Production Capacity：2000 Sets,Year

Model

MJD344

Max feeding speed

100m/min

Efficiency

25-35m/min (Cut 4-5 pieces per minute)

Saw Blade Diameter

450*3.2*30*100T / 500*3.8*30*120T

Max Cutting Section

75*125mm / 50*180mm

Cutting thickness

9-75mm

Mini material length

350mm

Max material length

No limited

Motor rotary speed

4000 r/min

Saw spindle power

5.5kW

Feeding servo motor power

4.5kW*2

Top press roller qty

6

Bottom press roller qty

6

Feeding conveyor width

200mm

Overall diameter

14000*1400*1550mm

Weight

2000kg

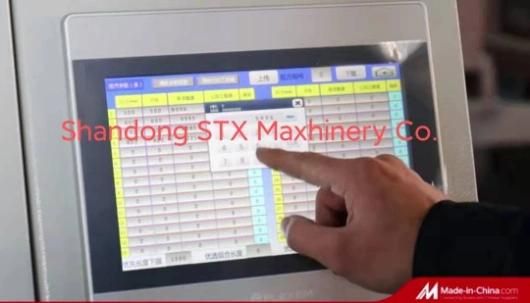

Can directly input the cutting list here
Or load the cutting list in this system by USB KeyKnots removal
Mark the knots using a marker pen.

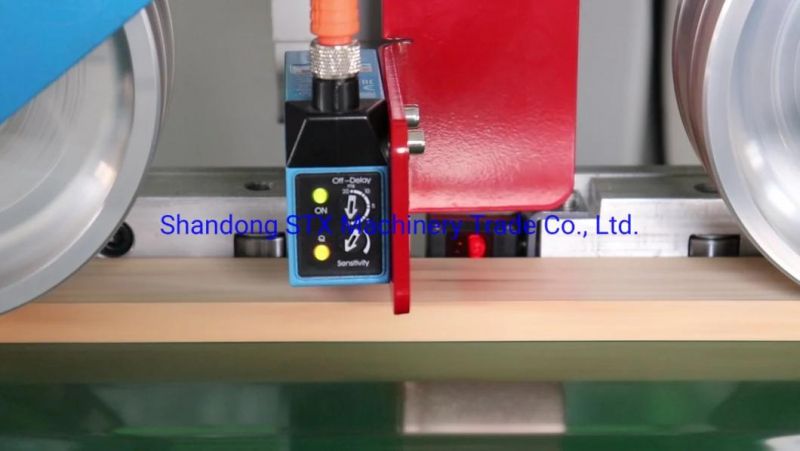

Then the machine will automatically identify the marking line and cutSuitable for big saw bladeScanner
Scanning unit is the eyes of machine to tell the main system how length the matrial or where is the defect need to be cut
