• Model NO.：1325
• Customized：Customized
• Condition：New
• Color：Customized
• Rail：Square Guide Rail
• Inverter：Sunfar Brand Inverter
• Transmission：Helical Rack
• Lubricating：Handle Press Oiling System
• Working Mode：Stepper Motor Working Mode
• Table：Aluminum T-Slot Table
• Control System：Ncstudio Control Sysytem
• Spindle：Water Cooling Spindle
• Application：Wood Working
• Bed Structure：Welded Bed Structure
• Transport Package：Exporting Plywood Package
• Specification：1325
• Trademark：ZK
• Origin：Shandong China
• HS Code：84659900
• Production Capacity：100set ,Month

Basic Info.

Model NO. 1325 Customized Customized Condition New Color Customized Rail Square Guide Rail Inverter Sunfar Brand Inverter Transmission Helical Rack Lubricating Handle Press Oiling System Working Mode Stepper Motor Working Mode Table Aluminum T-Slot Table Control System Ncstudio Control Sysytem Spindle Water Cooling Spindle Application Wood Working Bed Structure Welded Bed Structure Transport Package Exporting Plywood Package Specification 1325 Trademark ZK Origin Shandong China HS Code 84659900 Production Capacity 100set /Month

Product Description

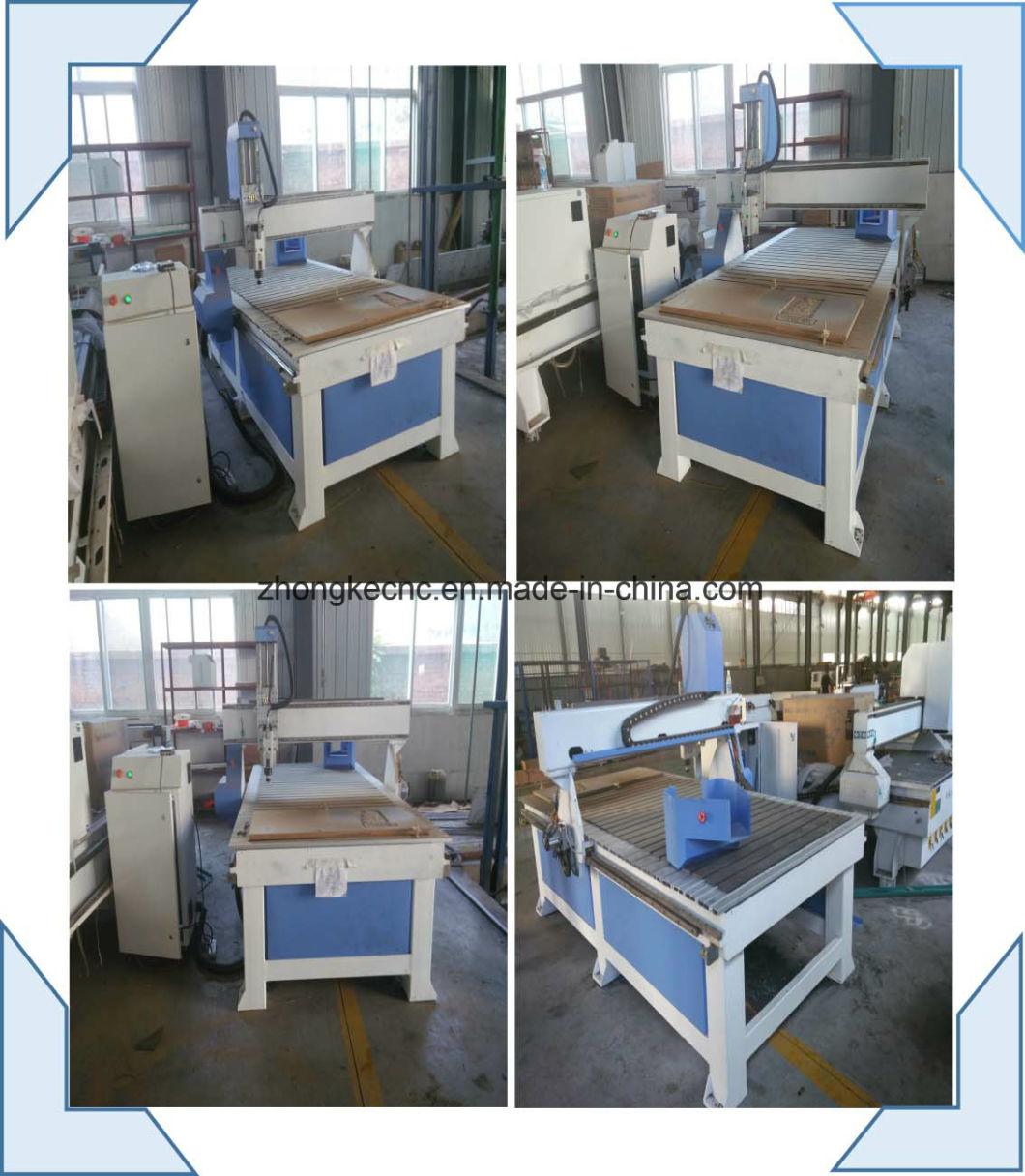

Best Price Wood CNC Engraving /Wood CNC Router

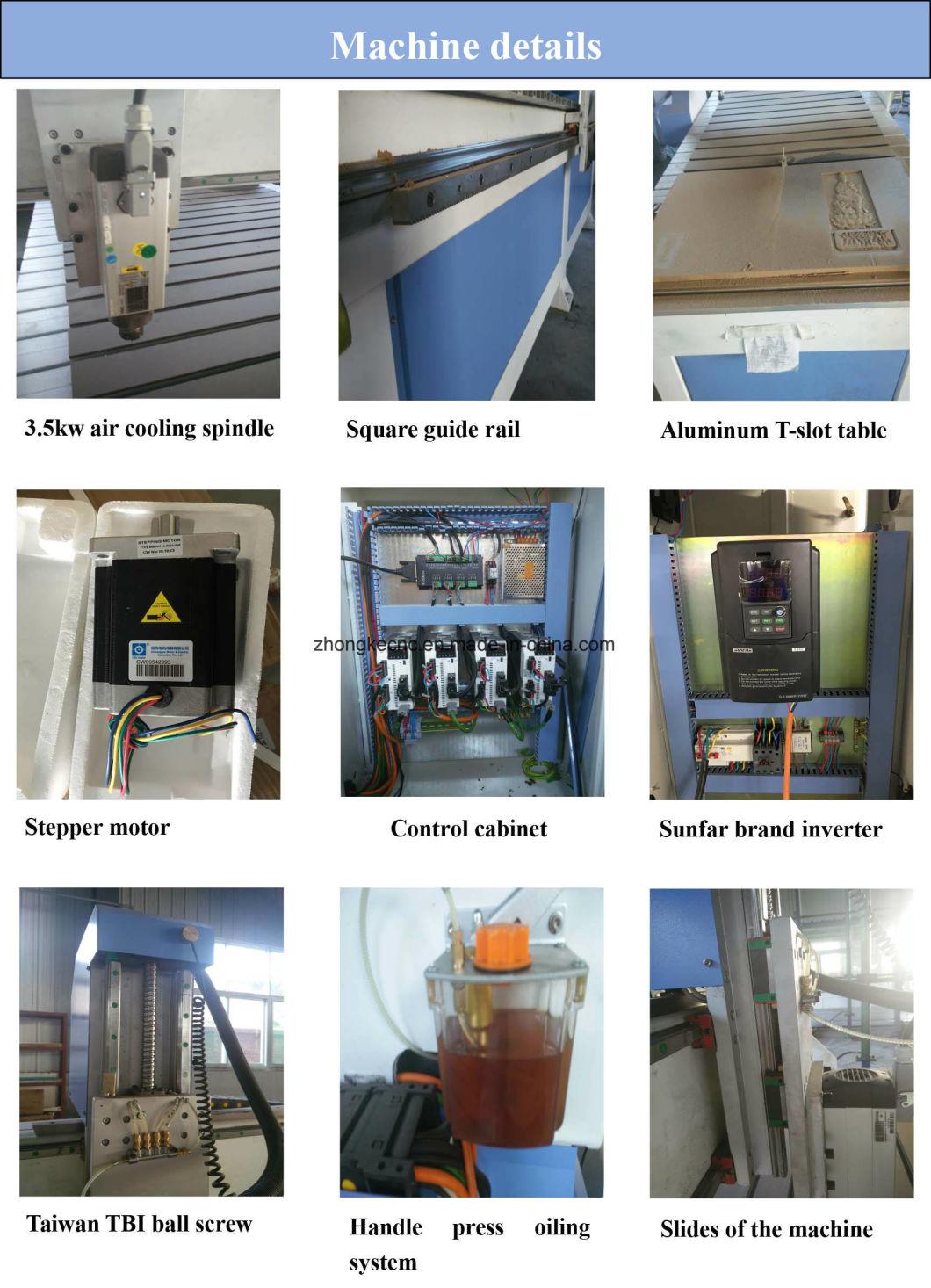

Technical parameters
Model                                                                  Jinan Zhongke 3d wood cnc router machine
X,Y,Z Working Area                                           1300*2500*200mm
X,Y,Z Traveling Positioning Accuracy               ±0.03/300mm
X,Y,Z repositioning Positioning Accuracy         ±0.02mm
Lathe Structure                                                   T-slot seamless welded steel bed structure
X Structure                                                         Taiwan HIWIN square guide rails
Y Structure                                                         Taiwan HIWIN square guide rails
Z Structure                                                         Taiwan TBI ball screw
Max.Speed                                                         0-30000mm/min
Max.Working Speed                                          0-25000mm/min
Spindle                                                              Water cooling spindle
Spindle Speed                                                   600-24000RPM
Working Mode                                                  Stepper motor
Working Voltage                                               220V380V/3ph  50HZ/60Hz for standard machine
Command Code                                                G code(*uoo,*nc,*mmg, *plt)
Operating System                                             Ncstudio control system
Interface                                                           USB
X,Y Working Delicacy                                    <0.01mm
Software                                                          Type3 software or Wentai software
Running circumstance                                    Temperature: 0°C~45°C

                                                                        Relative humidity: 30%~75%
Waranty                                                          One year
Delivery time                                                  2 weeks



Technical support:

• Warranty is 1 year
• 24 hour technical support by email or calling
• User-friendly english manual for machine using and maintaining
• We will send you manual and guide video in English,if you still don't know how to operate it, we can help you by phone or Whatsapp,Skype.

Payment terms:

• You can do 30% prepayment at first, then we will start to make machine. when the machine is ready , we will take pictures to you, after we got you payment.We will send the machine to you.

Samples:






Applied area

1.Furniture decoration industry: large area plate plane carving, wood carving and board type furniture carving. Solid wood art mural, solid wood door, cabinet door sculpture.



2.Wood products processing: sewing machine desktop, electrical counter desktop, sports supplies equipment.



3.Instrument industry: 3d curved surface, shape cutting.


Packing and shipping:

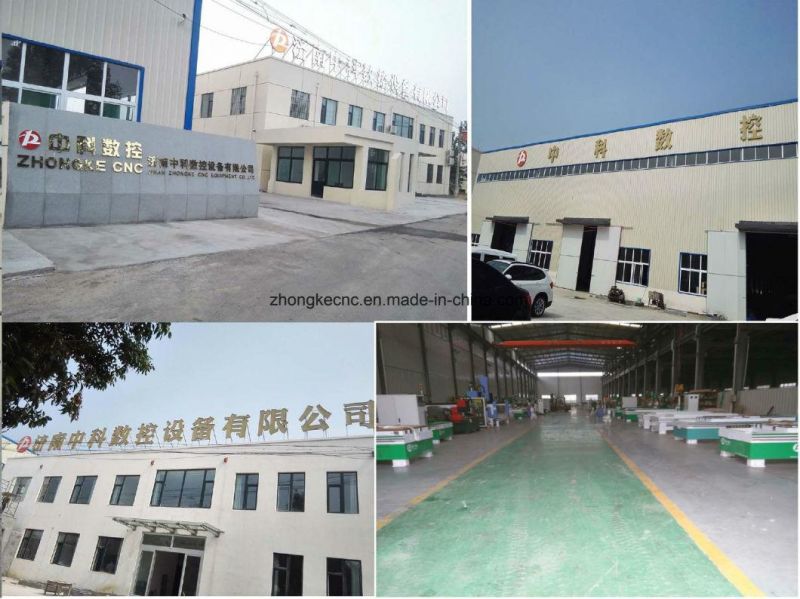

Our company:
