• Model NO.：ELE1325-3S
• Customized：Customized
• Condition：New
• Color：Customized
• Voltage：380V, 3phase, 50Hz (Optional: 220V)
• Dimension(L*W*H)：1300*2500*200mm
• Control System：Ncpm95A-3L Control System with Computer Control Bo
• Spindle：3*3.5kw Hqd Air Cooling Spindle
• Spindle Speed：0-24000rpm,Min
• Motor：FL118 Stepper Motor
• Driver：Yako 2811 Driver
• Inverter：3.7kw Fuling Inverter
• Table Surface：T-Slot and Vacuum Working Table with 4 Zones
• Vacuum Pump：5.5kw Water Circlulation Vacuum Pump
• Transport Package：Standard Export Wooden Case
• Trademark：BLUE ELEPHANT
• Origin：Shandong, China
• Production Capacity：200 Sets Per Month

Basic Info.

Model NO. ELE1325-3S Customized Customized Condition New Color Customized Voltage 380V, 3phase, 50Hz (Optional: 220V) Dimension(L*W*H) 1300*2500*200mm Control System Ncpm95A-3L Control System with Computer Control Bo Spindle 3*3.5kw Hqd Air Cooling Spindle Spindle Speed 0-24000rpm/Min Motor FL118 Stepper Motor Driver Yako 2811 Driver Inverter 3.7kw Fuling Inverter Table Surface T-Slot and Vacuum Working Table with 4 Zones Vacuum Pump 5.5kw Water Circlulation Vacuum Pump Transport Package Standard Export Wooden Case Trademark BLUE ELEPHANT Origin Shandong, China Production Capacity 200 Sets Per Month

Product Description

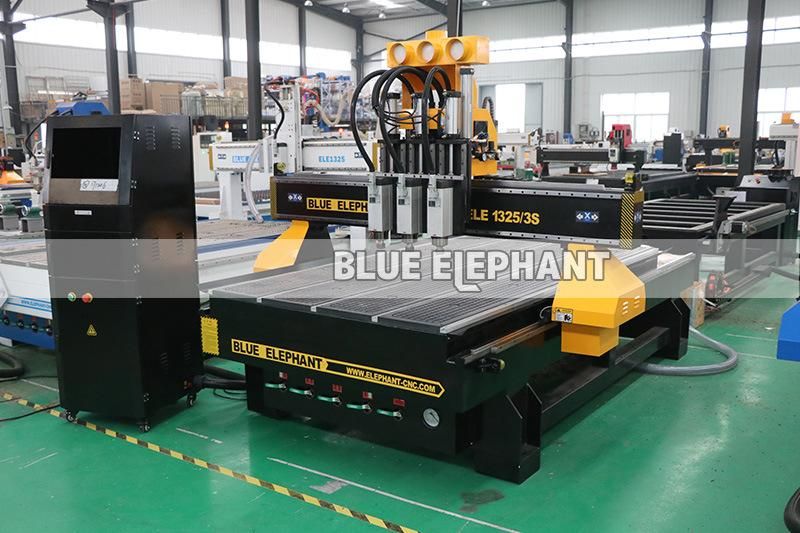

High Speed Pneumatic System 3 Spindles Wood CNC Router Machine for Wooden Furniture





Main Features

1325-3 with tripartite-spindles CNC Router is an intelligent economic Pneumatic-Tool-Changer equipment. It can complete multi-process machining through three separate automatic switching ,nesting, routering, and engraving all in one. It is well-suited for woodworking furniture, panel furniture, office furniture, cabinets, closet production in all shapes.

1. Economic and durable control system. NCPM95A-3L control system with computer control box.
2. Cost-effective atc cnc router. Three spindle works one by one, like a simple ATC machine, more convenient to change the tool.
3. The machine spindle is China HQD spindle. It's more economic and good performance.
4. Stable running. Sweden SKF Group ABBA #20 linear guide for all axis, Taiwan TBI ball screw for Z axis

Parameters :

Description	Parameter
Lubrication system	Automatic lubrication system
X,Y,Z Working Area	1300*2500*200mm
Working voltage	380v, 3 phase, 50/60HZ
Table Surface	T-slot & vacuum working table
Spindle	3*3.5kw HQD air cooling spindle
Spindle speed	0-18000RPM
X, Y Structure	Sweden SKF Group ABBA #20 linear guide for all axis Helical rack gear transmission for X,Y axis
Z Structure	Taiwan TBI ball screw for Z axis
Motor and driver	FL118 stepper motor and YAKO2811 bigger and stronger driver
Inverter	3.7kw Fuling inverter
Command Language	G Code
Control System	NCPM95A-3L control system with computer control box
Vacuum pump	5.5kw water circulation vacuum pump

PS:All the working area and specifications can be customized according to your requests.

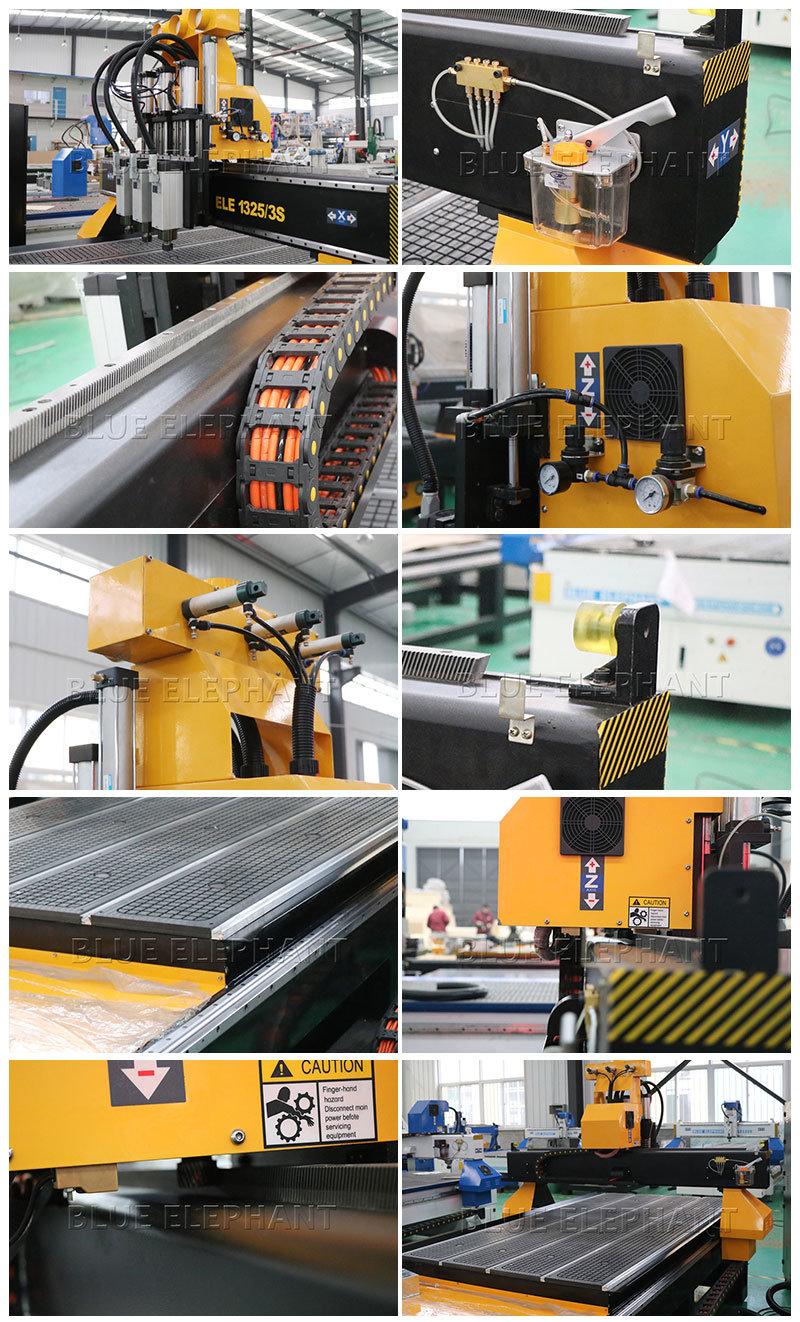

Product Details :



Application:

• Wood furnitur industry: Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

• Advertising industry: Advertising indentification, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.

• Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, wooden planjs and other non-metallic mold.

• Relief sculpture and 3D engraving.

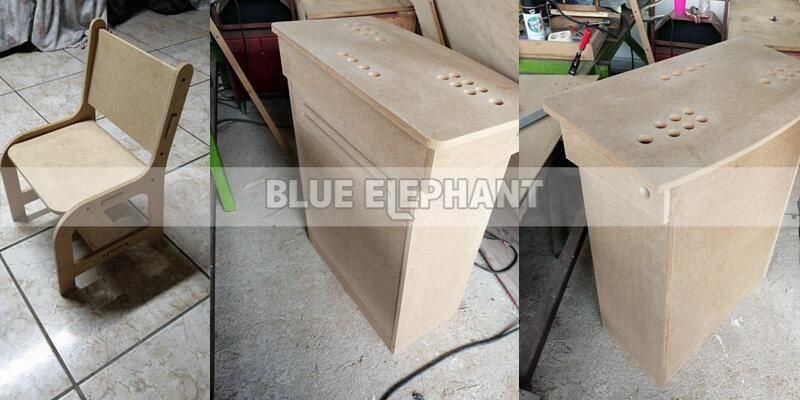

Samples show:

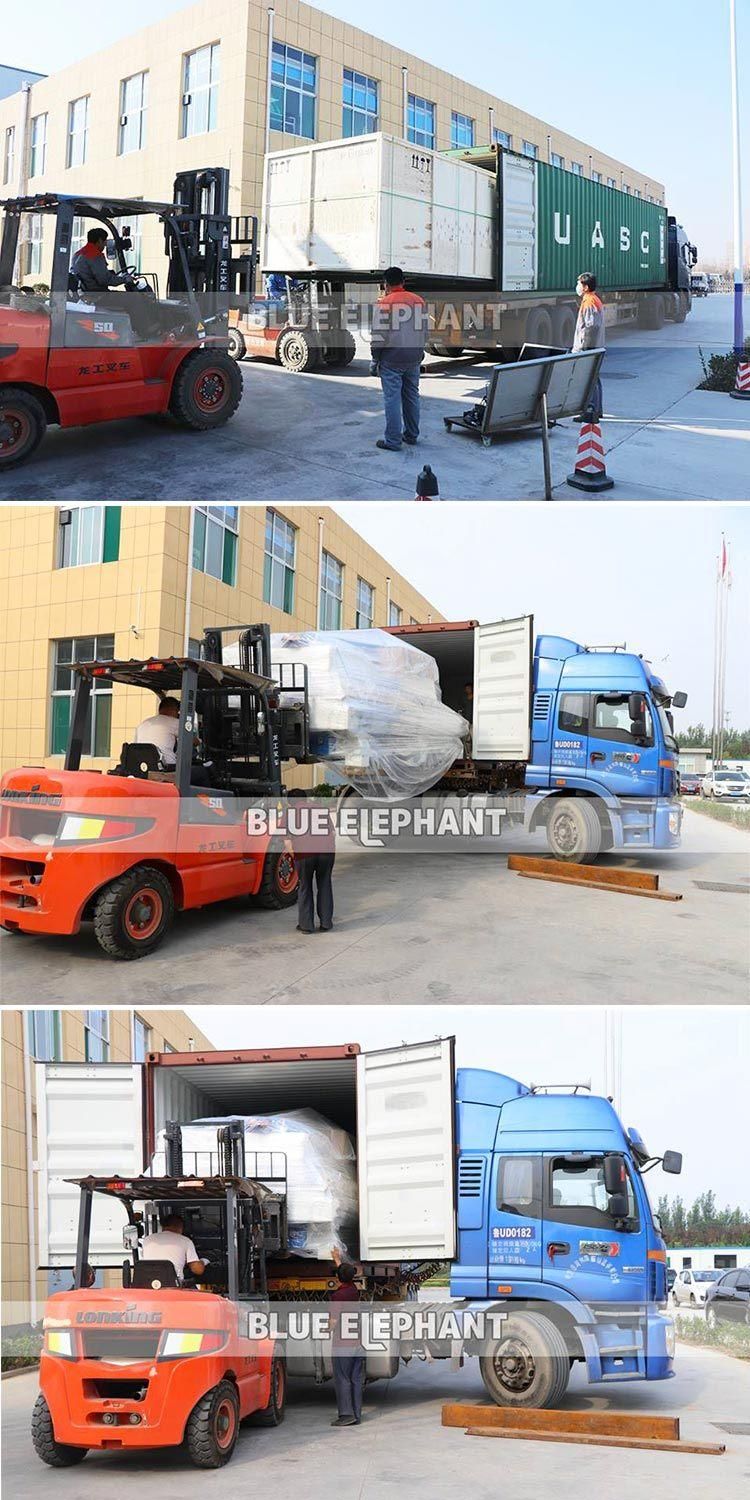

Packaging & Delivery:
Packaging Details: 1.Outside package:Standard marine export plywood case.
                                 2.inner package:Stretch film and plastic film for humidity.
                                 We can package according to your requests.
Delivery Detail: Shipped in 15 working days after payment.

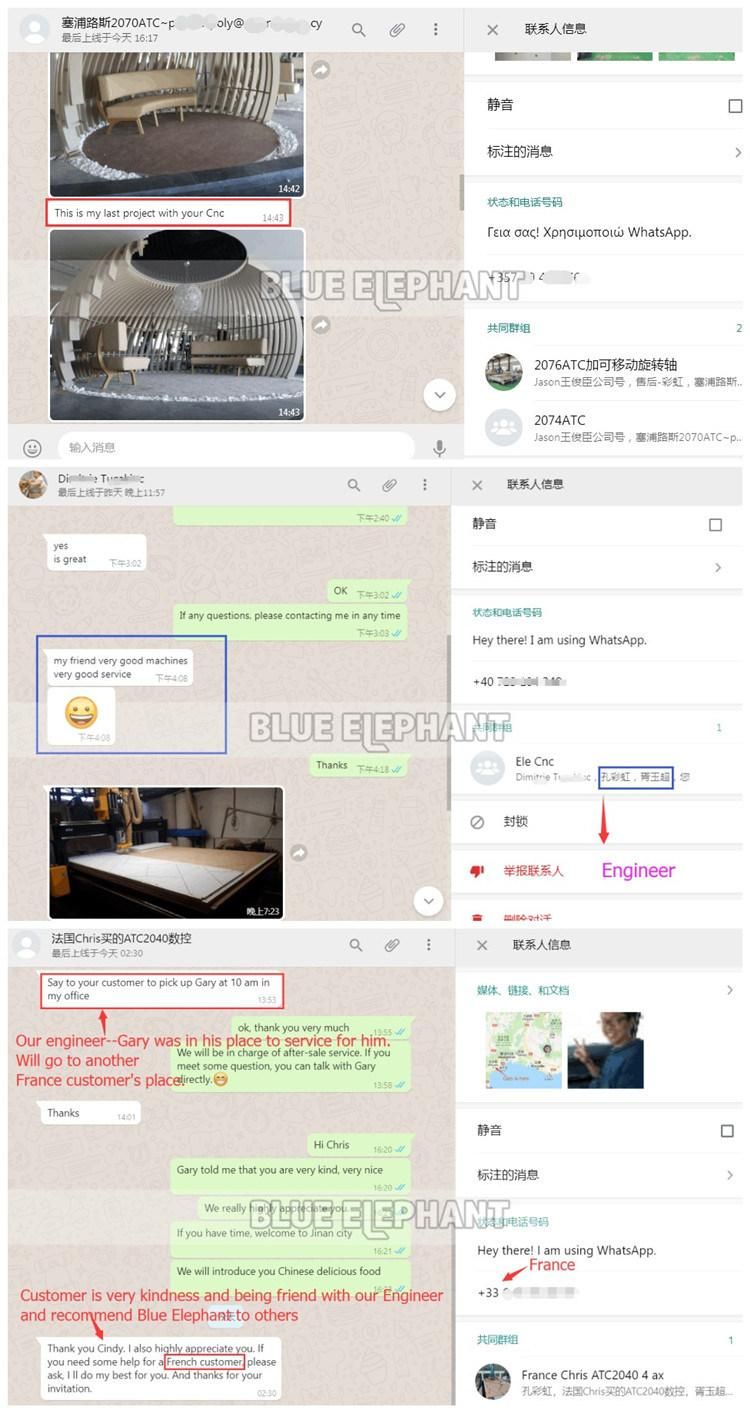

 Customers Feedback:




Our Service:
1, Within 7 days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered, operation disk/CD was included.

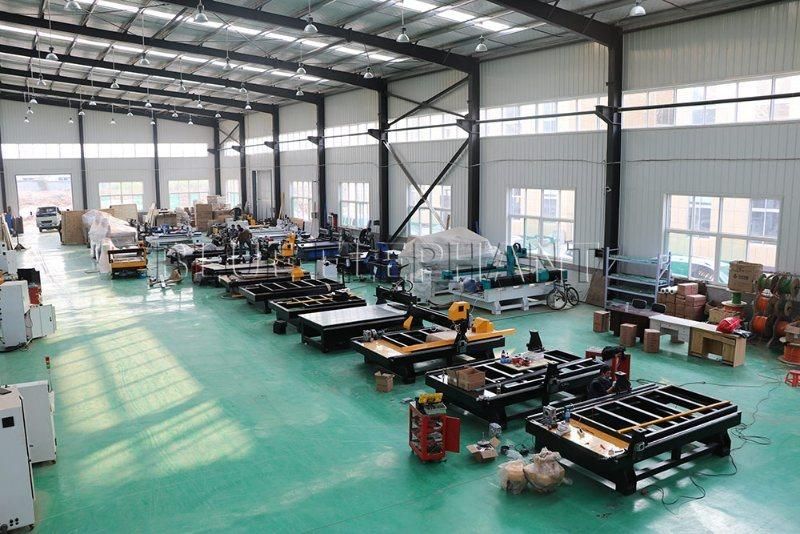

Welcome to our factory:

• Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. We have always been developed to the research and manufacturer of CNC router machine and laser cutting engraving machine.
• Our Philosophy: To Be First Brand -- CNC Manufacturer & wholesaler Platform!

• Just looking forward to service every customer, like you.
