• Model NO.：FM350
• Sales Model：Factory Direct Sales
• Installation Type：Vertical Type
• Wind Capacity：4560 Cubic Meter,H
• Size：1160*665*840mm
• Weight：125,175kgs

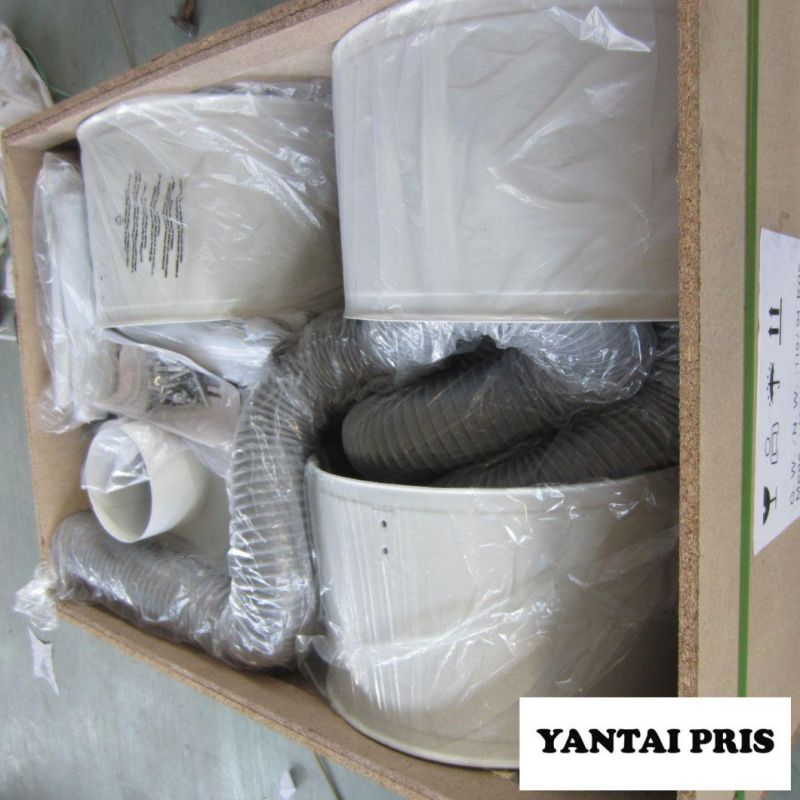

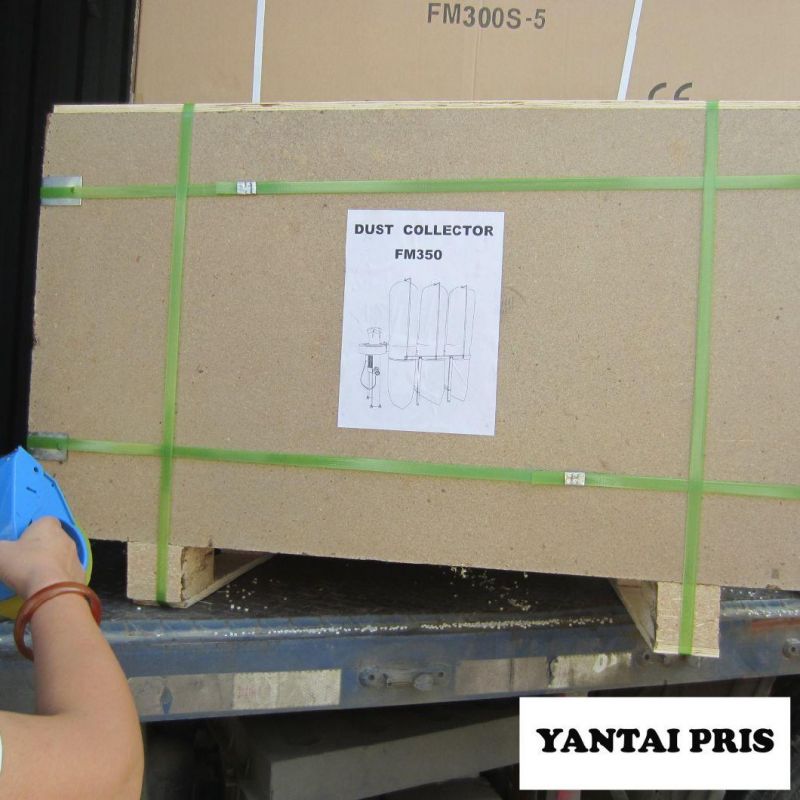

• Transport Package：Wooden Case Package
• Specification：FM350
• Origin：China
• HS Code：8421392290
• Production Capacity：10000

Basic Info.

Model NO. FM350 Sales Model Factory Direct Sales Installation Type Vertical Type Wind Capacity 4560 Cubic Meter/H Size 1160*665*840mm Weight 125/175kgs Transport Package Wooden Case Package Specification FM350 Origin China HS Code 8421392290 Production Capacity 10000

Product Description

The reasons for you choose us:

1.We have12 years OEM design and production experience for wholesales in Australia,Brazil,USA,Poland,Spain,South Africa and UK,etc.

2.The sheet metal parts of the dust collector are laser cut, and mass production guarantees accuracy and consistency.

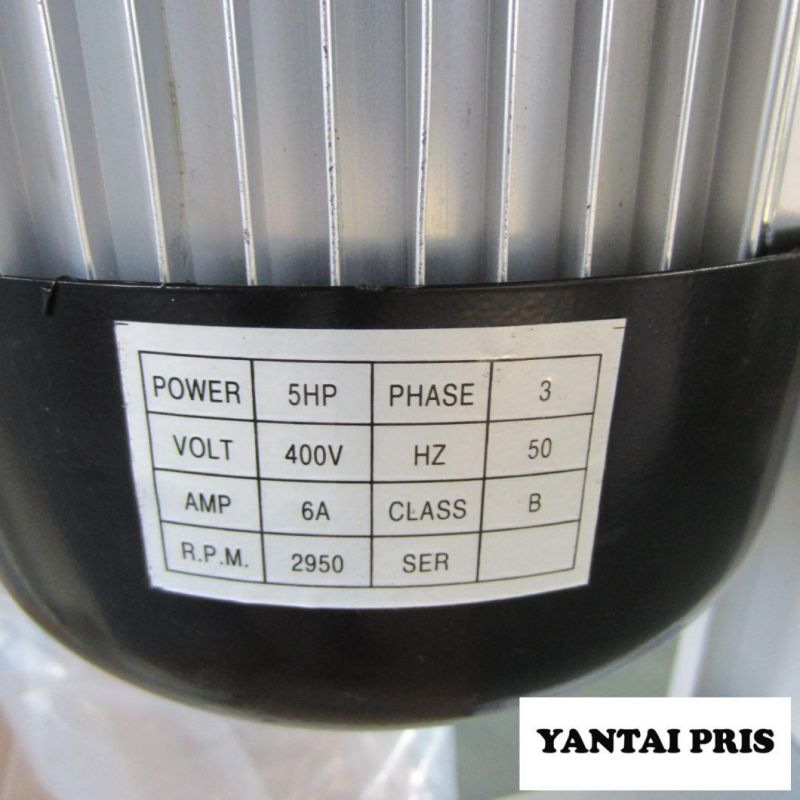

3.The new copper core motor is reliable and durable.

4.The main parts are stamped with molds to ensure accuracy and beauty.

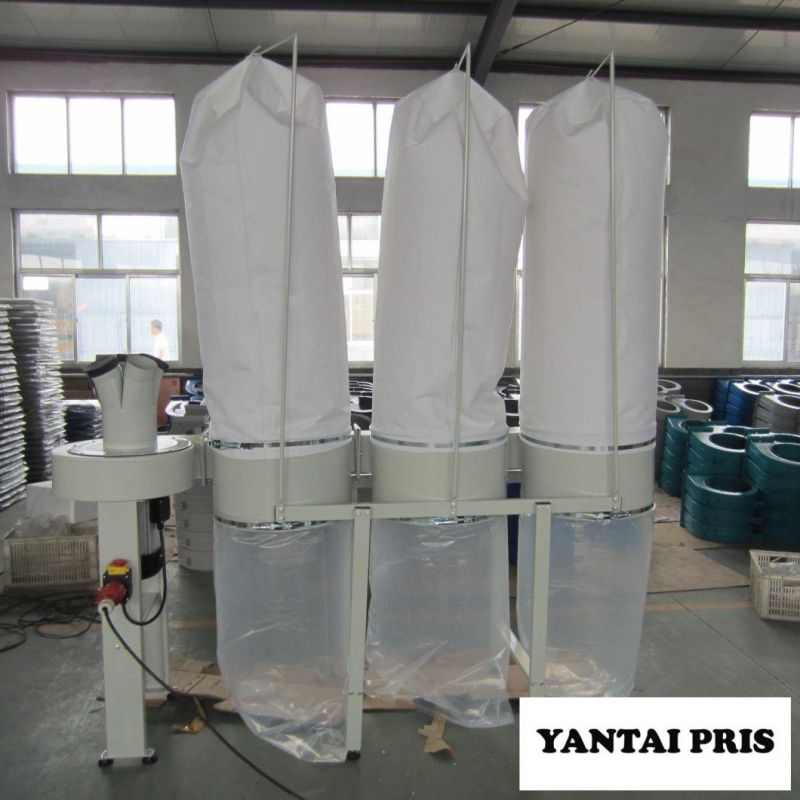

1.Model:FM350;
2.Motor power: 3750W, suitable for 400V, 50Hz, 3 phases or customized;
3.Fan diameter: 356mm

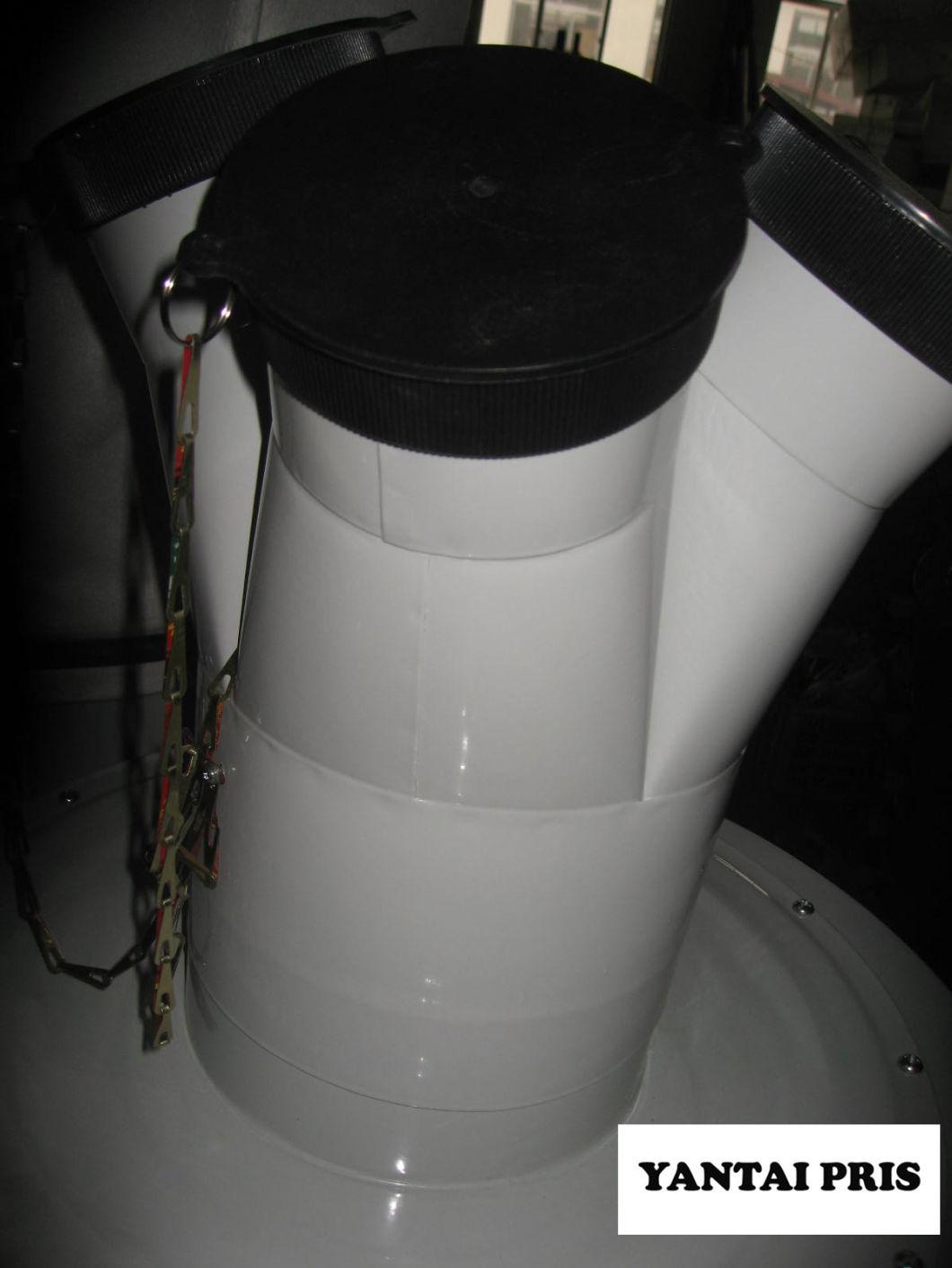

4.Inlet diameter: 1 x 180 to 4 x 100mm
5.Air flow: 2, 683CFM (76cubic meter/min)
6.Filtering bag dimension-upper (H x D): 1, 200 x 500mm
7.Collecting bag dimension-lower (H x D): 1, 000 x 500mm
Overall dimension: 2, 184 x 2, 355 x 582mm
Net/gross weight: 125/175kg
Packing size: 665 x 1, 160 x 840mm
Units per 20' container: 36
