• Model NO.：1325
• Trademark：sea eagle
• Origin：Jinan of China
• HS Code：84659900
• Production Capacity：200sets

Working area

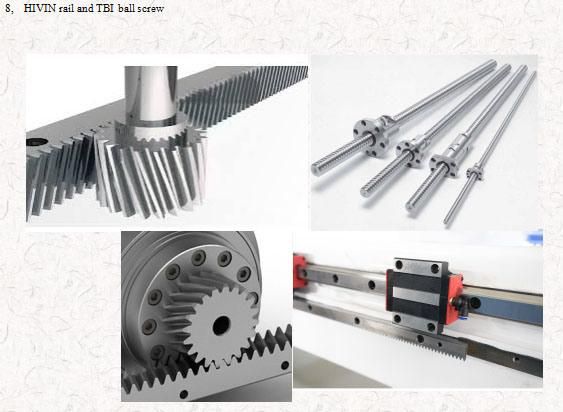

Working areaX1,300mmY2,500mmZ210 mmTransmission systemXHiwin square rail,-No.25, Helical - Rack & PinionYHiwin square rail,-No.25, Helical - Rack & PinionZball screw ,Hiwin square rail.SpindlePower6 kw HQD Spindle , 4 sets;  or 4.5kw ,2 sets, 6kw 2 setsInverterYaskawa or FullingRotating Speed24000rpmCooling Typewater- cooling or air-coolingDrive systemsX,Y,ZYaskawa or leadshinePrecision<0.01mmPositioning accuracy<0.01mmidling speed0~24000mm/minMax speed90m/minWorking speed40m/min

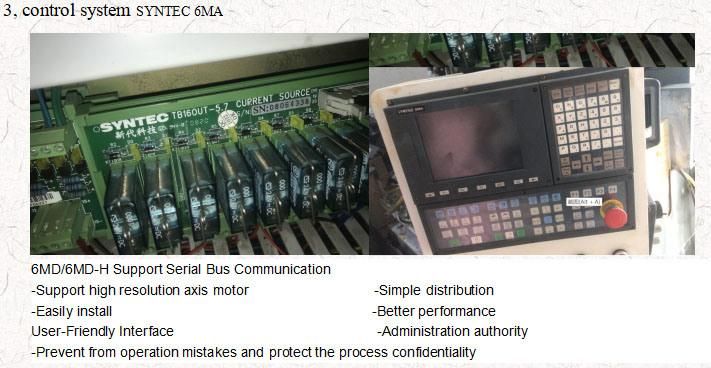

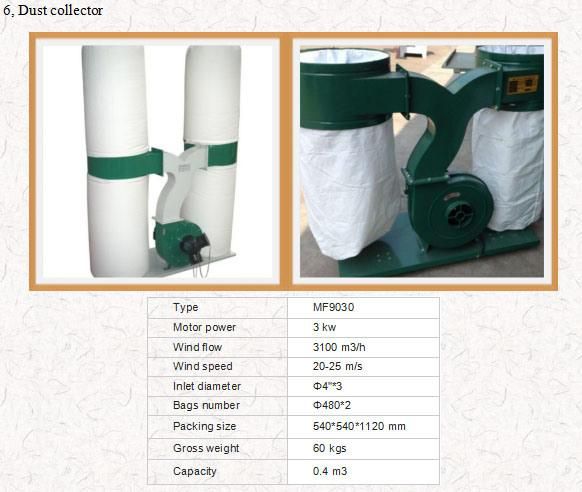

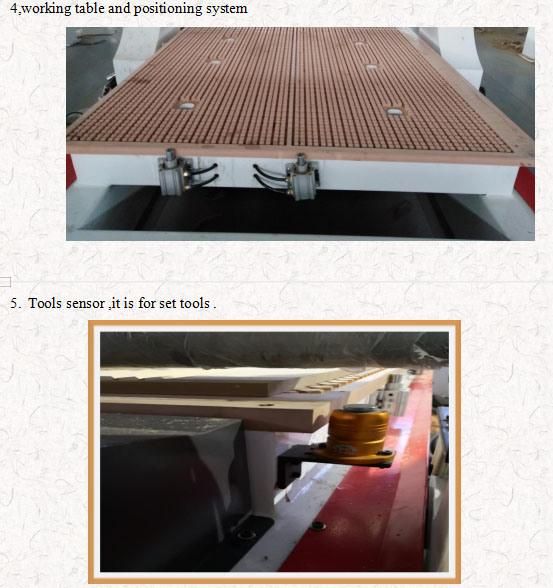

Machine bodySteel structure Table,Seamless welded steel structure / Lathe bed welded with thick square tube and slot steel,tablevacuum adsorption table.Control SystemLNC control system, or SYNTEC system, mach3Working VoltageAC380V±30V, 50HZCommand CodeG Code, *.mmg, *.plt, *.engTool sensor systemAvailablePackingPlywood  caseNet Weight3600KGPacking Size4000*1970*1930(mm)Gross Weight3000KGdust collector4.0 kw  380VReducer systemTiming Pulley

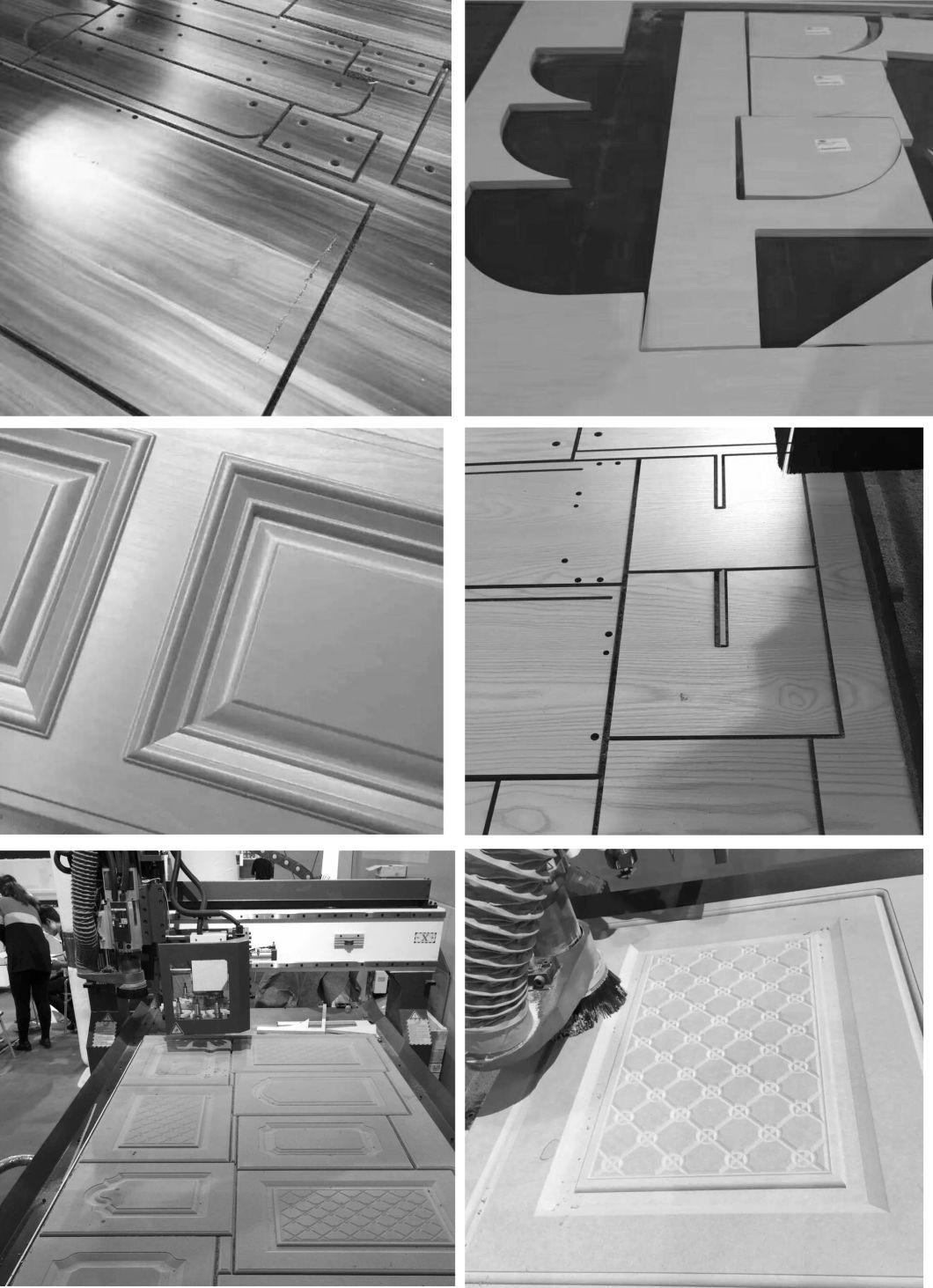

samples

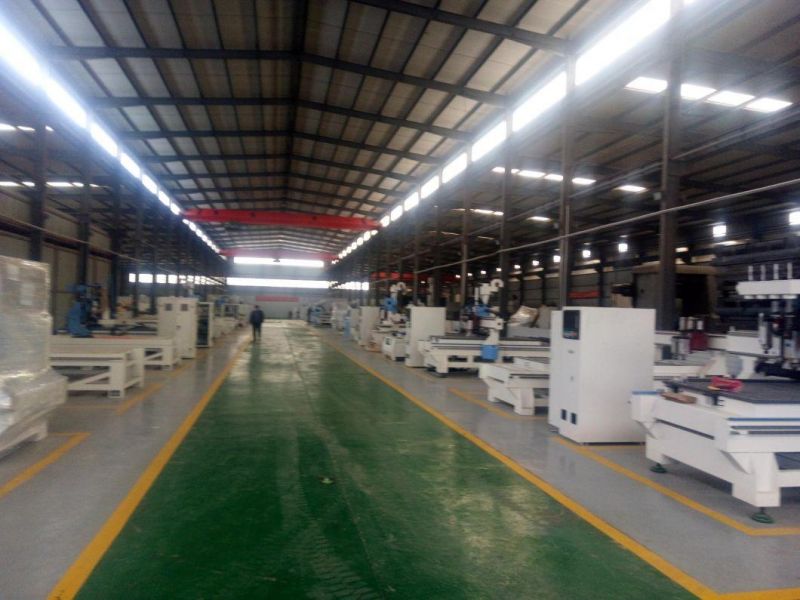

our workshop
