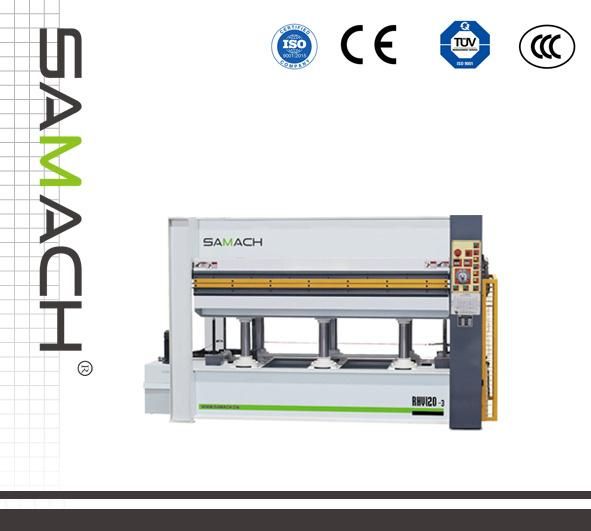

1, 2, 3 Layers Hot Press Machine Rhy100-1/120-3
Qingdao Samac International Trading Co., Ltd.- Processing Technics:Hot Press
- Structure:Frame Type
- Pressing Shape:Flat Press
- Work Mode:Continuous
- Valve:Hawe Valve Imported From Germany
- Use for:Wooden Door and Man-Made Board
Base Info
- Model NO.:RHY100-1,120-3
- Used for:Plywood, Joinery Board, MDF, Particle Board
- Transport Package:Wrap Film
- Specification:BY214X8,10(1) H1RC
- Trademark:SAMACH
- Origin:China
- Production Capacity:90sets,Month
Description
Basic Info.
Model NO. RHY100-1/120-3 Used for Plywood, Joinery Board, MDF, Particle Board Transport Package Wrap Film Specification BY214X8/10(1) H1RC Trademark SAMACH Origin China Production Capacity 90sets/MonthProduct Description
1, 2, 3 Layers 500tons/900tons/1200 Tons Hot Press Machine RHY100-1/120-3Applications:
Cover press machine is suitable for mediumsized furniture factory or small manmade board secondary processing (cover) factory, used for hot press glue furniture plates, partition, wooden door (i.e., thin manmade board and inside casing agglutination) and all kinds of manmade board, such as plywood, joinery board, MDF, particle board, surfce cover in all kinds of decorative materials:decorative paper, decorative cloth, melamine fire prevention board, metal foil, manmade and natural thin wood, natural thin wood pattern ; It can also used for drying and leveling of single plate,leveling and patterning of color decoration wood veneer.
Character:
Adopt solid drilling hot press steel plates
equipped with emergency switch, temperature secondary protection device etc.
main electric components are imported from Omron, Schneider.
customer can choose the following three heating way:
a. electric heating conduction oil heating cycles( standard )
b.steam heating(optional)
c. Both of them, under unstable steam supply( optionals)
Parameters:
Model | RHY100-1 | RHY160-2 | RHY160-3 |
Pressure | 100T | 160T | 160T |
Working layer | 1 layer | 2 layers | 3 layers |
Nominal gross pressure | 1000kN | 1600kN | 1600kN |
Distance of hot plates | 380mm | 170mm | 120mm |
No& Spec. of plate | 2 ~2500×1300×42mm | 3 ~2500×1300×42mm | 4 ~2500×1300×42mm |
Normal oil pressure | 29Mpa | 28Mpa | 28Mpa |
Unit surface pressure | 3.1kgf/cm2 | 5kgf/cm2 | 5kgf/cm2 |
Cylinder working stroke | 380mm | 340mm | 360mm |
Cylinder No& diameter | 6~φ85mm | 10~φ85mm | 10~φ85mm |
Installation power | 4+0.75+24kW | 4+0.75+36kW | 4+0.75+48kW |
Closing speed | 40mm/s | 24mm/s | 24mm/s |
Voltage | 3PH 380V 50Hz | 3PH 380V 50Hz | 3PH 380V 50Hz |
Heating way | Electric heated with thermal oil | Electric heated with thermal oil | Electric heated with thermal oil |
The max temperature | 120ºC | 120ºC | 120ºC |
Plate open way | Automatic | Automatic | Automatic |
Gross weight | 5000kg | 6800kg | 8000kg |
Overall size | 3600×1710×2080mm | 3650×1710×2270mm | 3650×1710×2270mm |
Reasons to choose Samach:
1: good resources with No.1 quality in China
2: quick delivery
3: excellent after-sale services
4: 24 hours technical support through email or calls.
5: friend partner relationship.
Get the maximum return on your investment with Samach's affordable, flexible and user-friendly machines, designed to help you succeed by delivering maximum performance!
