• Model NO.：MM5813R-R
• Color：White Wide Belt Sanding
• Usage：Wide Belt Sanding Machine
• Unit：Double Side Wide Belt Sanding
• Power：240kw
• Sanding Paper Size：1350*2800mm
• Transport Package：Plastic Bags
• Specification：3420*3520*3213mm
• Trademark：HZH
• Origin：China
• Production Capacity：2 Sets,Month

Basic Info.

Model NO. MM5813R-R Color White Wide Belt Sanding Usage Wide Belt Sanding Machine Unit Double Side Wide Belt Sanding Power 240kw Sanding Paper Size 1350*2800mm Transport Package Plastic Bags Specification 3420*3520*3213mm Trademark HZH Origin China Production Capacity 2 Sets/Month

Product Description

Model	MM5813R-RP	MM5813R-R	MM5813R-P
Sanding units	4	4	4
Working width	≤1300mm	≤1300mm	≤1300mm
Working thickness	≤120mm	≤120mm	≤120mm
Working length	≥900mm	≥900mm	≥900mm
Working precision	±0.08mm	±0.08mm	±0.08mm
Sandpaper size	1350*2800mm	1350*2800mm	1350*2800mm
Speed of sandpaper	25m/s	25m/s	25m/s
Feeding speed	6-30m/min	6-30m/min	6-30m/min
Front unit Roller diameter	Φ320mm	Φ320mm	Φ320mm
Rear unit Roller diameter	Φ240mm	Φ320mm	---
front unit motor power	75Kw*2	75Kw*2	75Kw*2
rear unit motor power	45Kw*2	55Kw*2	37Kw*2
Feeding motor power	15kw	15kw	15kw
Lifting motor power	5.5kw	5.5kw	5.5kw

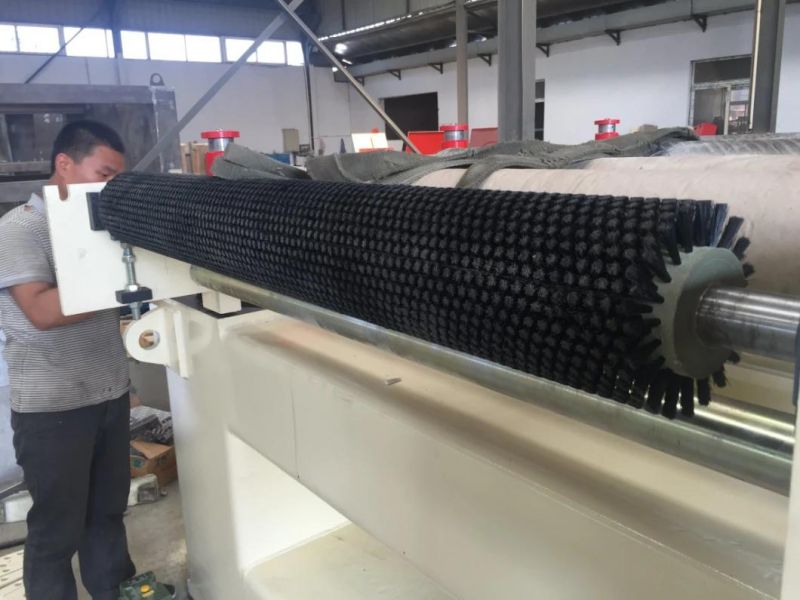

Brush roller motor	0.75kw*2	0.75kw*2	0.75kw*2
Working air pressure	0.6Mpa	0.6Mpa	0.6Mpa
Volume of dust-collecting	56000m³/h	56000m³/h	56000m³/h
Speed of dust-collector	≥25m/s	≥25m/s	≥25m/s
Working production line height	1520mm	1520mm	1520mm
Weight	26T	25T	25T
Dimension	3420*3520*3213mm	3420x3520x3213mm	3420*3520*3213mm
