CNC Multi-Spindle CNC Router (RJ-1325)
SHANDONG RUIJIE CNC TECHNOLOGY GROUP CO., LTD.- Certification:CE, FDA
- Max Engraving Speed:20000mm,Min
- Category:CNC Router
- Transport Package:Wooden Case
- Specification:1300x2500mm
- Trademark:Ruijie
Base Info
- Model NO.:RJ-1325
- Origin:China
- HS Code:84609090
- Production Capacity:100 Sets,Month
Description
Basic Info.
Model NO. RJ-1325 Origin China HS Code 84609090 Production Capacity 100 Sets/MonthProduct Description
CNC RouterFeatures:
Equipment with 2 to 4 heads; The machine one time can complete the works done by several machines, to save cost and improve the working efficiency.
The distance between heads can be adjusted according to the working pieces being processed.
Spindle power is selected according to customer's requirements.
Rotary attachment is optional. Which enable the machine to engrave on column work pieces like
Table leg.
Especially firm structure and special design on details make the machine to achieve the best perfptmance results.
It is possible to start any one of the heads only.
Description | Parameter |
X. Y. Z Working Area | 1300X2500X200mm(51.2x98.4x7.9 inch) |
X. Y. Z traveling Positioning Accuracy | ≤ 0.1mm |
X. Y Z Reposition Accuracy | ≤ 0.1mm |
Table Surface | PVC |
Lathe Bed | Cast |
X. Y Transmission | High accuracy rack gear |
Z Transmission | Imported Ball screw |
Max Power Consumption(Without spindle) | 12KW |
Max Travel Speed | 30000/mm/min |
Max Working Speed | 20000mm/min |
Spindle Power | 1.5KWx6 |
Max Spindle Speed | 24000r/min |
Driver system | Step Motor |
Working Voltage | 380V/220V |
Command language | G code |
Operating System | DSP |
Interface | USB |
Flah Memory | 128M |
Collect | Φ 3.175-Φ 12.5 |
X. Y Resolution | ≤ 0.1mm |
Software | UCANCAM, Type3, ARTCAM |

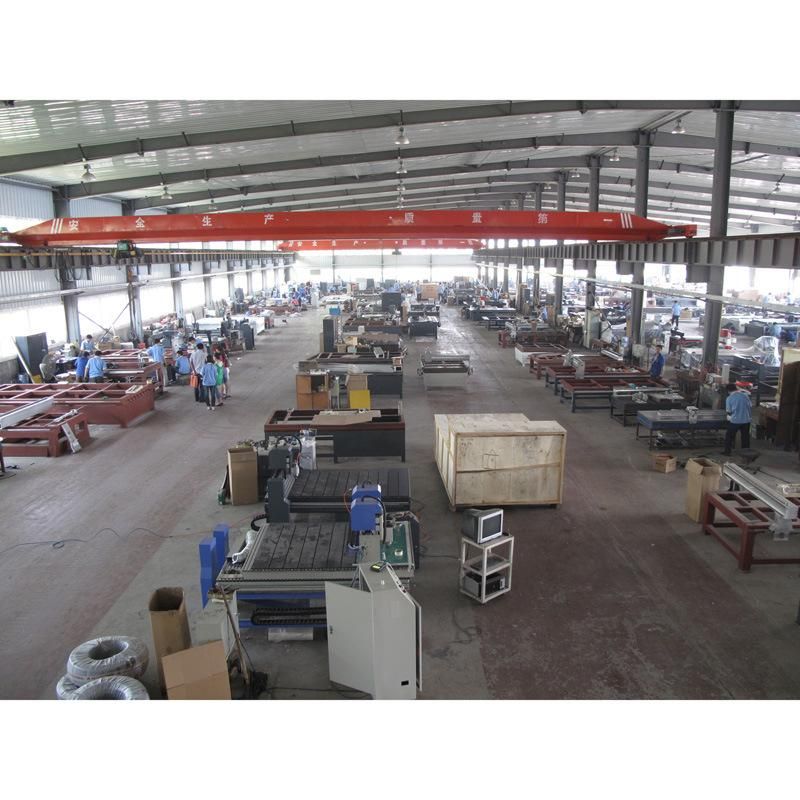

Factory Show
