• Model NO.：RJ-1325
• Customized：Customized
• Condition：New
• Color：Customized
• Transport Package：Wooden Case
• Specification：1300x2500mm
• Trademark：Ruijie
• Origin：China
• HS Code：84609090
• Production Capacity：100 Set,Month

Basic Info.

Model NO. RJ-1325 Customized Customized Condition New Color Customized Transport Package Wooden Case Specification 1300x2500mm Trademark Ruijie Origin China HS Code 84609090 Production Capacity 100 Set/Month

Product Description

CNC Wood Router Machine RJ1325

Features
1. Y axis with double motor drivers ensures stable and smooth movement of the machine.
2. High precision rack gear transmission ensure fast speed and high accuracy
3. Importer linear square guide rail ensure high accuracy and maximum work load.
4. Adopt vacuum system, by advanced international technology, configured with vacuum pump of strong absorption, can absorb different size materials.
5. Humanized design of vacuum table with T-slot and clamps, can absorb or clamp the material, the operation is
Convenient.
6. Intelligent protection of working table can avoid damage resulted from the wrong operation.
7. Intelligent overrunning protection can avoid mechanical collision when set graphic exceeds processing size.
8. Automatic lubrication system fulfills the periodic lubrication maintenance just by one single press.

Apllication
This kind of machine is widely usd 3D carved plates with wave patterns, cabinet door, solid wooden door, craft wooden door, non-painting wooden door, screen, craft windows, computer desk and the panel furniture auxiliary processing ect.

Working travel	X axis 1300 mm  Y axis 2500 mm    Z axis 230 mm
Table size	1300 mm*2500 mm
Maximum speed	X Y axes 60m/min
Spindle	Voltage: AC380v  Frequency: 400Hz
Italy HSD	Speed: 24000r/min  Power: 8kw
Pressure	Air-blow pressure 0.4 MPa      Tool hold Pressure 0.7 MPa
Pressure protection	No less than 0.7
Dust collecting power	3.0kw
Vacuum power	5.0kw (phenol aldehyde laminated cloth board)
Total power	23.0kw
Mechanism size	Area: 1.8m*3.3m    Height: 1.5m  Weight: 850kg
Japanese servo motor	Large torque, which ensures stable operation, low noise, accurate position. The idle strake speed can be more than 60m/min.
Tool storage	8 tools
Diameter of cutter head	3.175mm, 6mm, 12.7mm.
Cubage	18.0 CBM

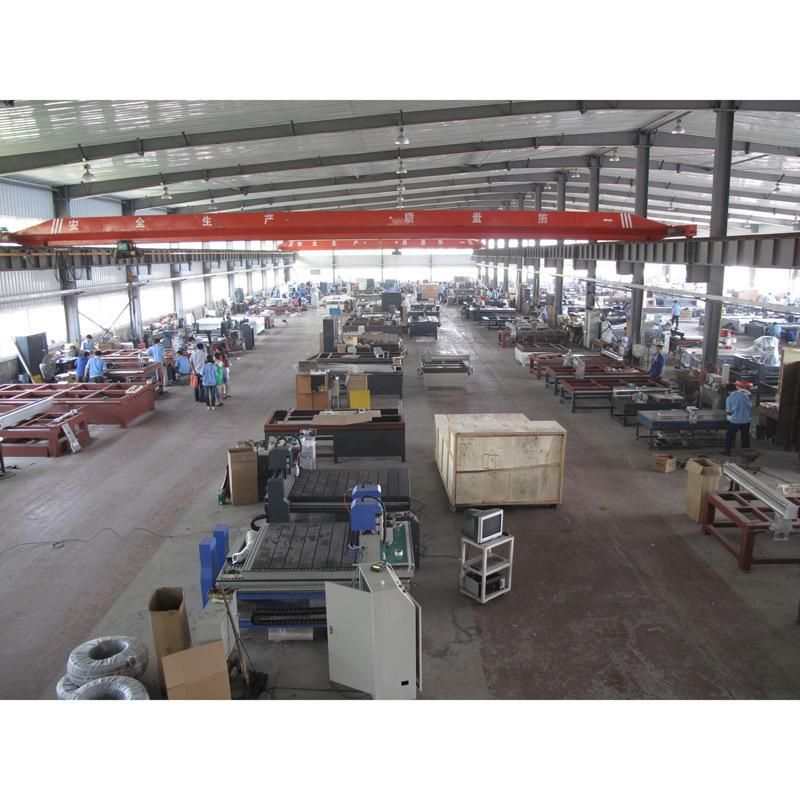

Factory Show
