• Model NO.：ELE1325
• Customized：Customized
• Condition：New
• Color：Customized
• Product Name：Multi Spindle 3D CNC Router
• Working Size：1300*2500*300mm
• Transmission：X,Y Rack&Pinion, Z Ball Screw Drive
• Table Structure：T Slot Vacuum
• Spindle Speed：24000rpm
• Travelling Speed：45m,Min
• Working Speed：20m,Min
• Spindle Power：4.5 Kw
• Voltage：AC 380V,3pH,50Hz
• Control System：DSP B18 Control System
• Transport Package：Standard Export Wooden Case
• Specification：CE, FDA, ISO, SGS
• Trademark：BLUE ELEPHANT
• Origin：Shandong, China
• Production Capacity：200 Sets Per Month

Descriptions

Parameters

Product name

ELE1325-8s

Model

1325-8s+8r

Working area

1300*2500*300mm

Control system

DSP B18 control system

Spindle

2.2kw*8 water cooling spindle

Spindle speed

0-24000RPM

Inverter

2.2kw*8 fuling inverter

Motor and driver

8 piece*FL 118 stepper motor and YAKO 2811 bigger and stronger driver

Voltage

380V, 3ph, 50Hz

Linear rail

Sweden ABBA #20 linear guide for all axis

Table structure

New type thicker and bigger heavy duty welded frame and gantry

Table surface

Removable T-slot work table

X,Y axis transmission

Helical rack and pinion drive for X,Y axis

Z axis transmission

Taiwan TBI ball screw for z axis

lubrication system

Manual lubrication system

Rotary device

Rotary device with 200mm diameter

PS: All the working area and specifications can be customized according to your requests.

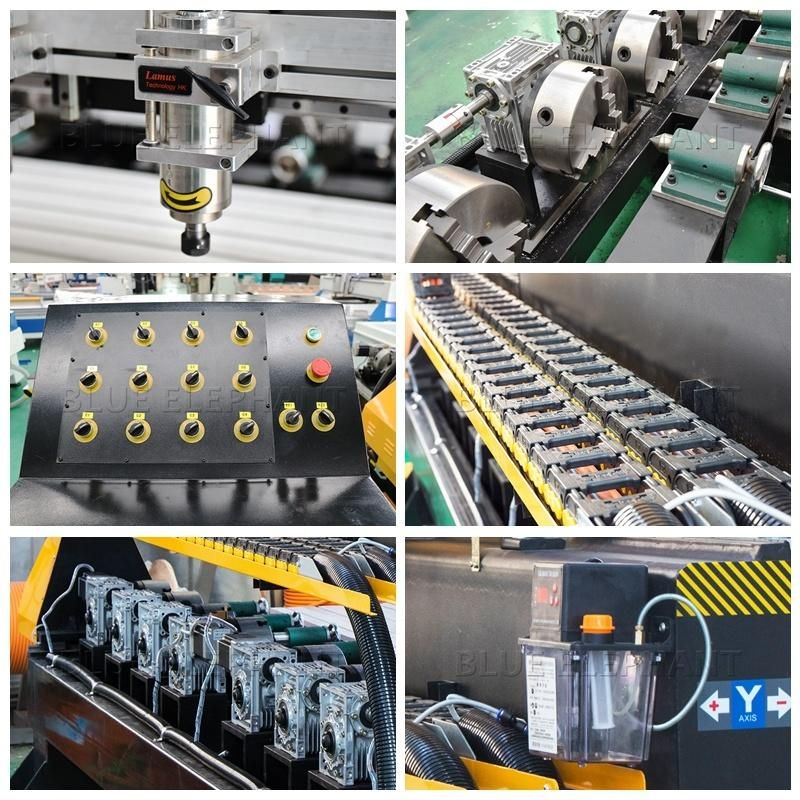

Detail Image

Application

1. Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2. Advertising Industry: Advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.

3. Die Industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.


Packaging Details:

1. Outside package: Standard marine export plywood case.

2. inner package: Stretchy film and plastic film for humidity.

3. We can package according to your requests.

Delivery Detail: Shipped in 25-30 working days after payment.



Guarantee and After-sale service:

1. 12 months warranty for the whole machine.

2. Technical support by phone, email or WhatsApp/Skype around the clock.

3. Friendly English version manual and operation video CD disk.

4. Engineer available to service machinery overseas.
