• Model NO.：JCW2522-8H
• Working Area：Can Be Customerized
• Spindle Power：Can Be Customerized
• Warranty：1 Year Free of Charge, 24 Hr on-Line Consultant
• Training：2 Days of Free Training at Factory and CD Training
• Transport Package：Standerd Plywood Case
• Specification：3000mm*2230mm*1650 mm
• Trademark：CHAODA
• Origin：Linyi, Shandong, China
• HS Code：8464909000
• Production Capacity：800set,Year

DescriptionSpecificationX,Y, Z working area8*300mm(w)*1800mm(L)*200mm(H)Lathe bed StructureThick steel tube frameTable surfaceT-slot with clampsX structureHelical tooth rack and pinion, Taiwan linear square railY structure Helical tooth rack and pinion, Taiwan linear square rail;  Y-double motor driveZ StructureTaiwan Ball screw, Taiwan linear square rail, Z-double motor driveReposition accuracy ±0.03mmMax.operating speed0-30000mm/minMax.working speed0-15000mm/minSpindle power motor2.2kw air cooling spindle*8Spindle speed 0-18000 RPMWorking modeJapan YASKAWA servo motor and driverInverterTaiwan DeltaOperating system NcstudioCommand codeG code(*uoo,*nc,*mmg, *plt)Compatible software Artcam /Type3 etcWorking voltage 3 phase AC380V 50HZ/60HzRunning circumstanceTemperature: 0ºC~45ºC, relative humidity: 30%~75%Net weight  2150KGOil system Automatic

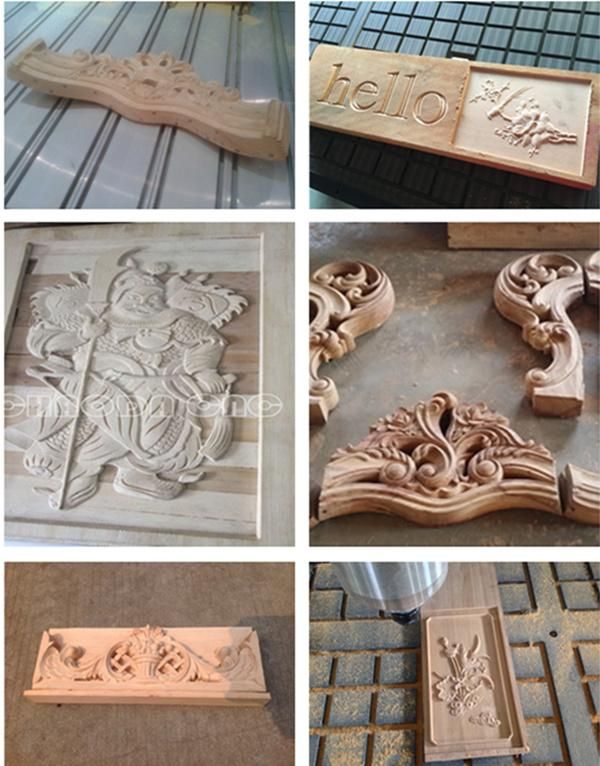

Sample Pictures




Free Training



Packing & Delivery
