• Model NO.：1224
• Certification：CE, ISO
• Customized：Customized
• Condition：New
• Color：Customized
• After-sales Service：Lifetime
• Control System：Nc Studio
• Guild Rail：Hiwin Square Rail
• Ball Screw：PMI, Taiwan
• Invertor：Fuling,Delta
• Water Channel：Stainless
• Transport Package：Standard Exported Plywood Case
• Specification：CE
• Trademark：DONGTONG
• Origin：Shandong China
• HS Code：84609090
• Production Capacity：50 Sets Per Month

Basic Info.

Model NO. 1224 Certification CE, ISO Customized Customized Condition New Color Customized After-sales Service Lifetime Control System Nc Studio Guild Rail Hiwin Square Rail Ball Screw PMI, Taiwan Invertor Fuling/Delta Water Channel Stainless Transport Package Standard Exported Plywood Case Specification CE Trademark DONGTONG Origin Shandong China HS Code 84609090 Production Capacity 50 Sets Per Month

Product Description

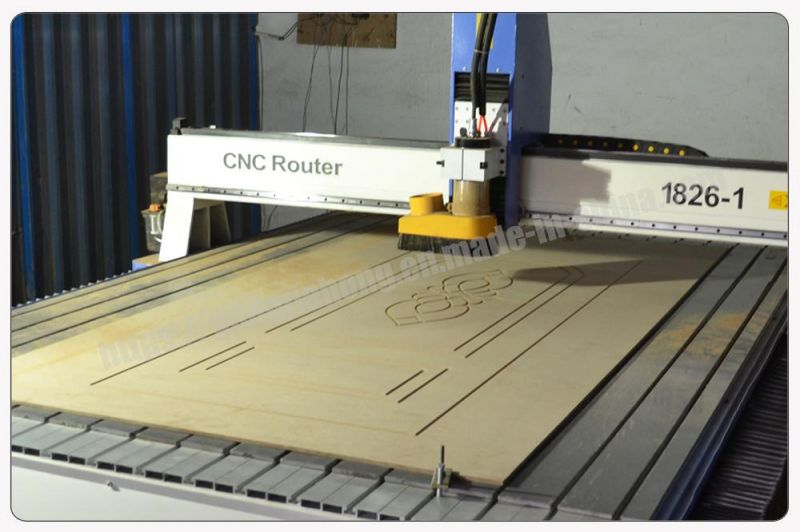

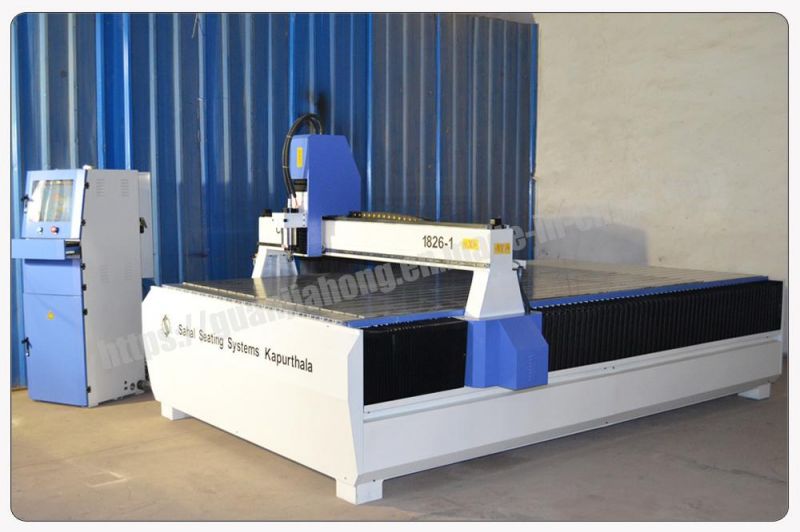

Customized 1325 Nc Studio system Wood, acrylic, aluminum, mdf, stone, metal  CNC Router Machine from professional cnc router manufacturer

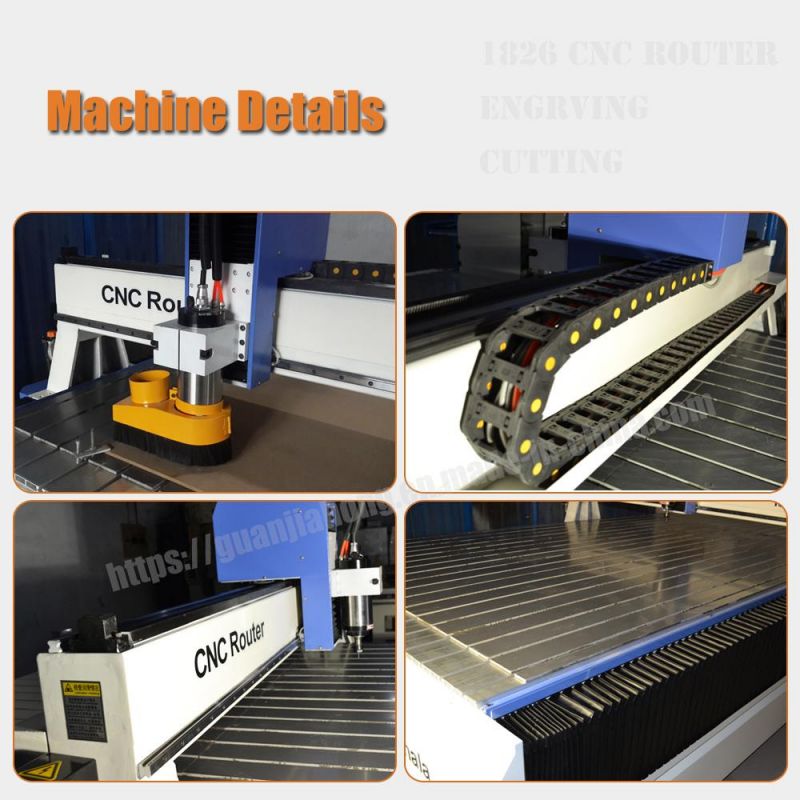

Machine Feature:
1. It is a unique design for relief and wood cutting machine, high accuracy, fast speed, fully meet the
Requirements of carving
2. Patterns or designs on woodwork and cutting. Lathe bed for large rectangular pipe welding, guide
Bearing surface stability. Rack drive, stable moving, high-speed operation for a long time without
Deformation and shake.
3. Internationally advanced NC studio system which have memory of breakpoint can guarantee
Resumption of processing in case of incident (breaking) or of work of the previous day.
4. Good Y axis and dust-proof structure to ensure that the machines longer service life.

Application:

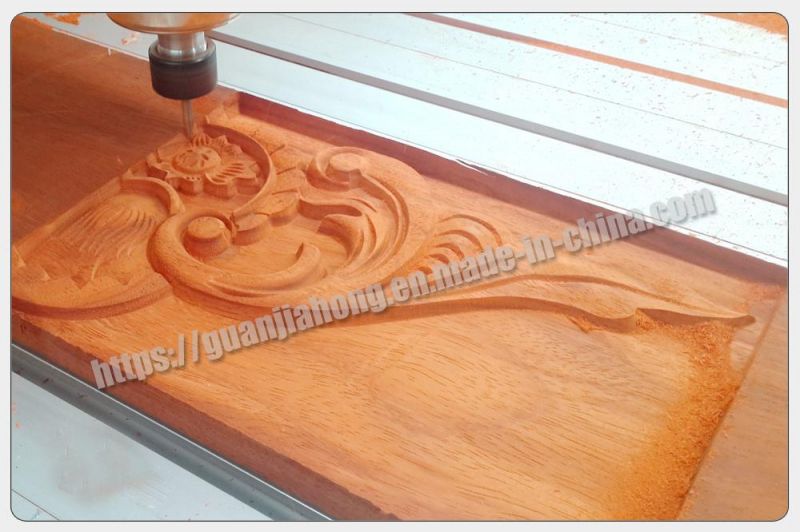

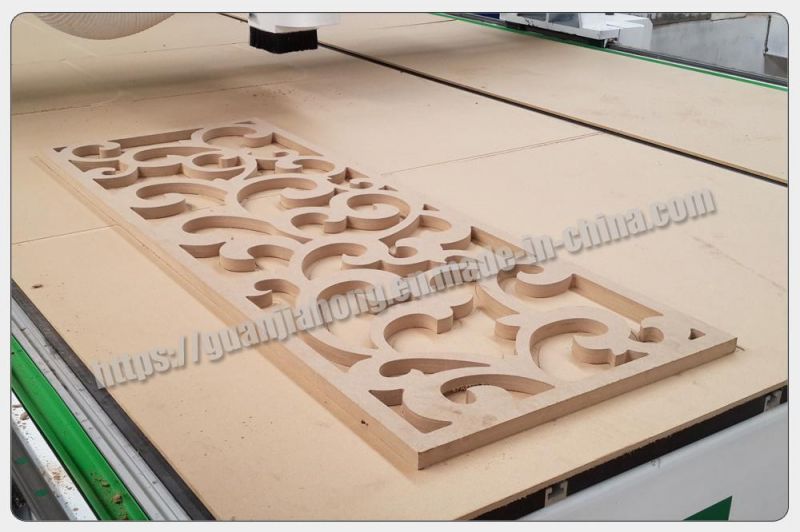

Woodworking industry: Three-dimensional wave board processing, cabinet door, craft wooden door,
Folding screen, process window milling shape carved furniture products.

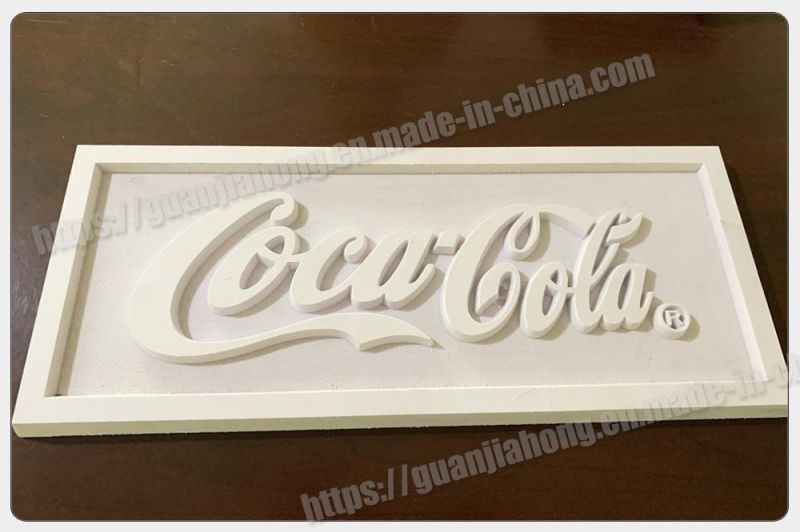

Advertising industry: Advertising signs, PVC board, chevron board, double color boards, logo making,
Acrylic cutting, plastic molding, characters, crystal cutting, plate making, cutting PVC board, acrylic, LED/neon trough, the hole shape literally cut, blister light Boxes mould
Arts and crafts industry: In the wood, bamboo, marble, organic board, double color boards, such as
Material for a variety of exquisite design and text on the sculpture.













 Technical Parameter:

NO	Performance index	Performance index	Parameter	Optional
1	Working area	X	1300mm
		Y	2500mm
		Z	200mm
2	Table size
3	Accuracy	Working precision	0.05mm
		Repositioning precision	0.05mm
4	Drive mode	X axis	Rack gear
		Y axis	Rack gear ,dual-motor
		Z axis	Ball screws
5	Speed	Max motion speed	30000mm/min
		Max engraving speed	20000mm/min

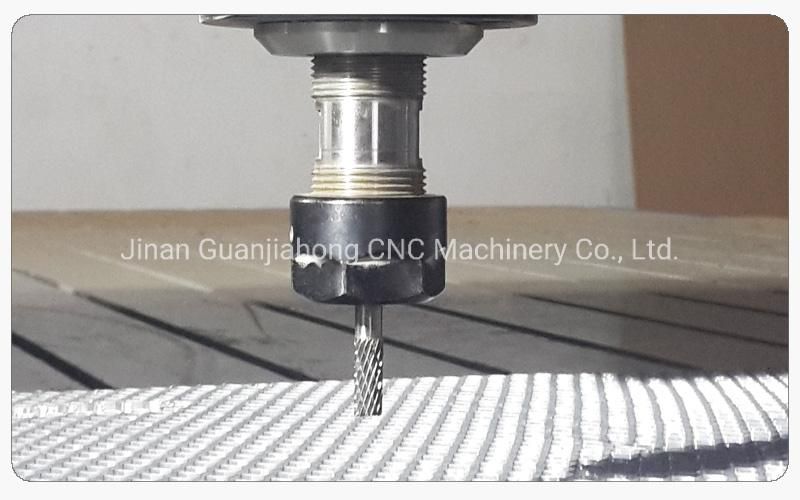

6	Spindle(water-cooling)	Spindle power	3KW	1.5KW_5.5KW
		Spindle speed	0_24000r/min
7	Drive mode		Stepper
8	Operating voltage		AC220V/50HZ
9	Command code		G code
10	Operating system		NC STUDIO
11	Net weight		1520KG

Technical support:
1. Technical support by phone, email or MSN/ Skype around the clock
2. Friendly English version manual.
3. Engineer available to service machinery overseas. but the buyer should pay the fee.

After-sale & guarantee service:
1. Under normal usage, 1 year for the whole machine and 6 months for spindle
2. Normal machine is properly adjusted before dispatch.
3. You will be able to get free training advice towards our machine in our factory.
4. Free suggestion and consulting, lifetime technical support and service ation is available.

WOOD ,ACRYLIC, MDF, PBC, MARBLE, CNC ROUTER MACHINE, CUSTOMIZATION IS AVAILABLE
