• Model NO.：1325B-3
• Spindle Number：3
• Feed Mode：Mechanical
• Controlling Mode：CNC
• Certification：CE, ISO, SGS
• Customized：Customized
• Condition：New
• Color：Customized
• After-sales Service：One Year
• Voltage：380V
• Transmit：Helical Gear Rack and PMI Screw
• Motor：Stepper
• Tool Change Type：Spindles Instant Swith
• Transport Package：Plywood Case
• Specification：1325B-3
• Trademark：GJH
• Origin：Shandong China
• HS Code：84609090
• Production Capacity：10 PCS,Month
• Package size per unit product：3500.00cm * 2280.00cm * 2000.00cm
• Gross weight per unit product：1800.000kg

Basic Info.

Model NO. 1325B-3 Spindle Number 3 Feed Mode Mechanical Controlling Mode CNC Certification CE, ISO, SGS Customized Customized Condition New Color Customized After-sales Service One Year Voltage 380V Transmit Helical Gear Rack and PMI Screw Motor Stepper Tool Change Type Spindles Instant Swith Transport Package Plywood Case Specification 1325B-3 Trademark GJH Origin Shandong China HS Code 84609090 Production Capacity 10 PCS/Month

Packaging & Delivery

Package size per unit product 3500.00cm * 2280.00cm * 2000.00cm Gross weight per unit product 1800.000kg

Product Description

1300X2500MM,
Genuine NcStudio,
HSD/ HQD Spindle,
Vacuum Table,
PIM Screw & Guild Rail,

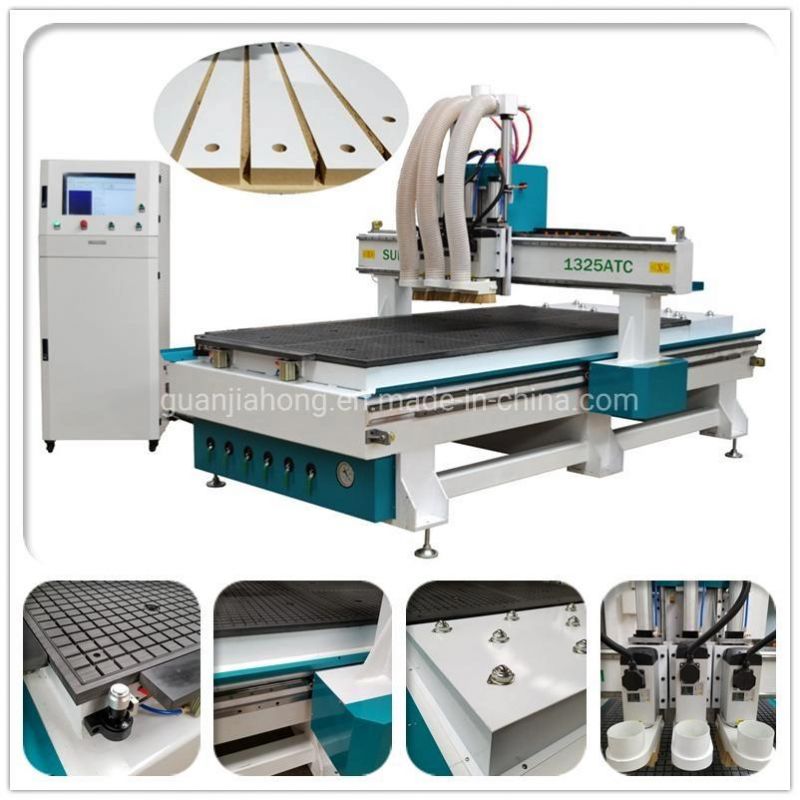

Multi Workstage/ Multi process CNC ROUTER:

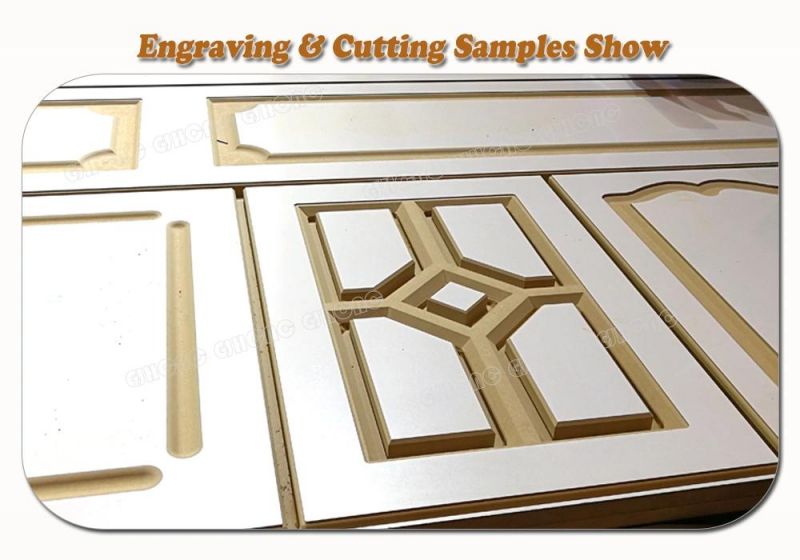

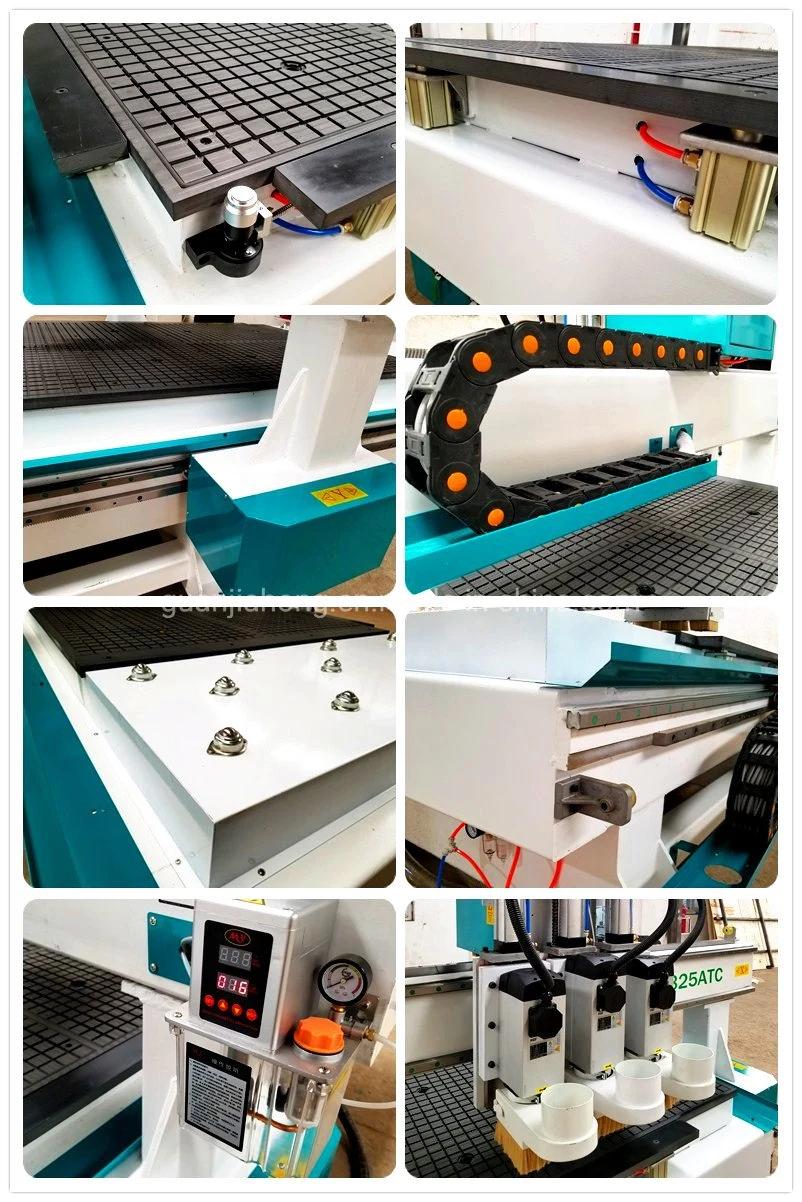

1. 1325B-3  engraving machine is designed for board, furniture, handicraft, etc. Three Workstage ATC functions bring us high-efficiency and high quality.
2. Lathe bed adopts welded structure, high strength and no variant, ensure the machining accuracy.
3. For Y axis, double motor drive, power stable operation, high precision.
4. Genuine NC Studio 53C for control system.
5. Support breakpoint processing, easy to adjust.
6. All kinds of machine models can be customized according to the clients' requirements.


Modle: 1325B-3
Machine size: 3100x2050x1900mm
Packing size: 3200x2150x2000mm
Working area: 1300mm×2500mm
Total power: 10KW
N.W.: 1600Kg



Transmission	X/Y: Rack;  Z:Screw
Screw No.	PMI2510 (Imported)
Guild rail	PMI 20 (Imported)
Driving mode	Stepper
Driver	Yako 2811Ma
Motor	Thank 450C
Motor power	400W
Working voltage	380V
Gantry	10MM welded structure
Table	Vacuum table
Operation system	NC Studio 53C                        (Optional: NK 105 Handle)

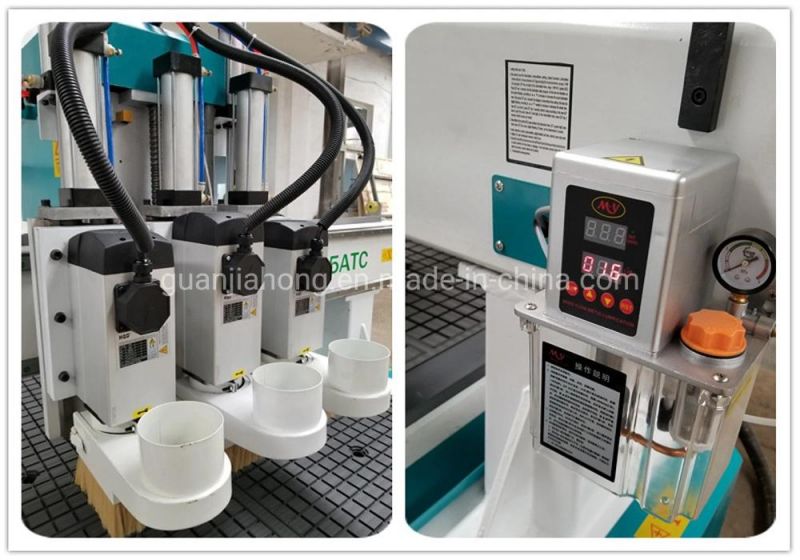

Spindle	4.5KW(Huajiang), Air-cooling, 10sets      (Optional: HQD & HSD)
Lubrication	Auto
Dust proof	No (Optional)
Dust collector	380V 3KW, Binocular
Vacuum pump	380V 5.5KW Domestic water cooling      (Optional: Dry gas ring)



NO	Index	Index	Parameter
1	Traveling	X axis	1300mm
		Y axis	2500mm
		Z axis	180mm
2	Table size		1300x2500mm
3	Accuracy	Working accuracy	0.02mm
		Reposition accuracy	0.02mm
4	Transmission	X axis	Rack
		Y axis	Rack
		Z axis	Screw
5	Speed	Max Rapid	25000mm/min
		Max working speed	20000mm/min
6	Spindle	Spindle power	4.5KW
	(Air-cooling)	Spindle speed	0-18000r/min
7	Drive mode		Stepper
8	Working voltage		AC380/50HZ
9	Command language		G Code
10	Operation system		NC Studio 53C (Genuine)



No.	Name	Unit	Qty
1	NC Studio 53C card	Set	1
2	10mm Allen Wrench	Pc	1
3	Open spanner	Set	1
4	Clamp screw	Set	12
5	Collet (3.175,4,6)	Set	8
6	Tool kit	Pc	1
7	Operating manual of machine	Pc	1
8	Certificate of quality	Pc	1
9	Packing list	Pc	1
10	Dust collector	Set	1
11	Vacuum pump	Set	1

GUARANTEE & AFTER-SALE SERVICE:
1. One year warranty under normal use and we supply lifelong maintenance.
2.24 hours technical support by Phone, Email, Skype, Msn, or romote.
3. Free training to make sure you master the operation of the cnc router.
OEM SERVICE AVAILABLE:
1. Usually, we will manufacturer the machine as our regular design.
2. X Y Z Working Area could be custmer-oriented designing.
3. Special configuration could be customer-oriented designing.
