• Model NO.：DT1325-1
• Customized：Customized
• Condition：New
• Color：White and Blue
• Guide Rail：PMI (Imported)
• Screw：PMI (Imported)
• Running Mode：Stepper (Optional Yaskawa Servo)
• Driver：Yako 2811mA (Optional Leadshine 860)
• Motor：Thank 450c (Optional Cw-450b)
• Dust Collector：Yes
• Inverter：Fuling
• Control Systerm：Nc Studio (Genuine)
• Table：T-Slots
• Oil Lubrication System：Yes
• Transport Package：Plywood Case
• Specification：DT1826-1
• Trademark：DONGTONG
• Origin：Shandong China
• HS Code：84609090
• Production Capacity：100 Sets Per Month

Basic Info.

Model NO. DT1325-1 Customized Customized Condition New Color White and Blue Guide Rail PMI (Imported) Screw PMI (Imported) Running Mode Stepper (Optional Yaskawa Servo) Driver Yako 2811mA (Optional Leadshine 860) Motor Thank 450c (Optional Cw-450b) Dust Collector Yes Inverter Fuling Control Systerm Nc Studio (Genuine) Table T-Slots Oil Lubrication System Yes Transport Package Plywood Case Specification DT1826-1 Trademark DONGTONG Origin Shandong China HS Code 84609090 Production Capacity 100 Sets Per Month

Product Description

Hot selling for India market, Genuine Nc Studio, PMI Rail guild & Screw, 1325/1530/1826 Woodworking and Metal Cnc Router from professional cnc woodworking engraving machine maufacturor.


1. Mode DT1826 machine is specially designed for woodworking, metal and advertisement.          It has high precision, fast speed, cost-effective.

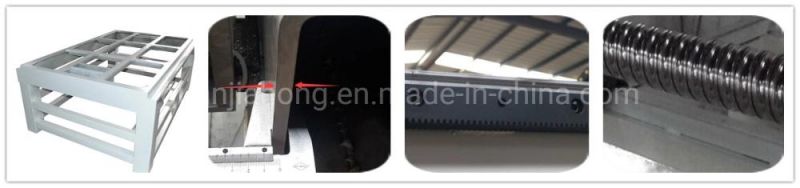

2. By the way of seamless welding and vibrating treatment, the lathe bed steel structure is firm, durable, strength steel and non-deformation.
3. Computer cabinets and Weihong control system make the machine have good stability and high reliability.
4. Using automatic lubrication system, it's convenient for maintenance.
5. Owns more functions of power-off restoration, continuation on break point, working time anticipation etc.
6. XYZ axis adopt high-precision linear and square rail from Yintai in Taiwan. High-precision and durable  no-learance rolling ball screws for Z axis, it's imported from Yintai brand in Taiwan, rack
 drive for  X Y axis, high-precision, faster and better efficiency.


1. Woodworking industry: All kinds of door, windows, cabinet, craft door, paint-free door, screen, wave  board processing,
2. Advertisement industry: suitable for processing all kinds of design of rich and colorful model, Suchas  labels. Architectural molds, badge, engraving plate, exhibition boards, doorplate. Direction board, decoration  and so on.
3. Handcraft industry: apply to engraving patterns and characters on all kinds of materials, such as wood, bamboo, marble, organic board, double color board.
4.Other industry: Relief carving, photograph craving, openwork engraving, plane engraving, cutting and milling bottom etc.


If  you have specific requirement  for CNC woodworking engraving machine, customized is available.
2D & 3D Engraving machine.

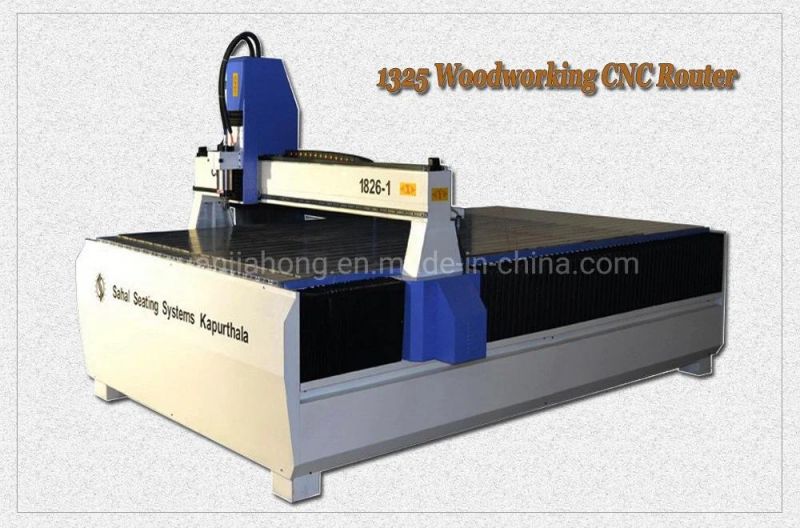

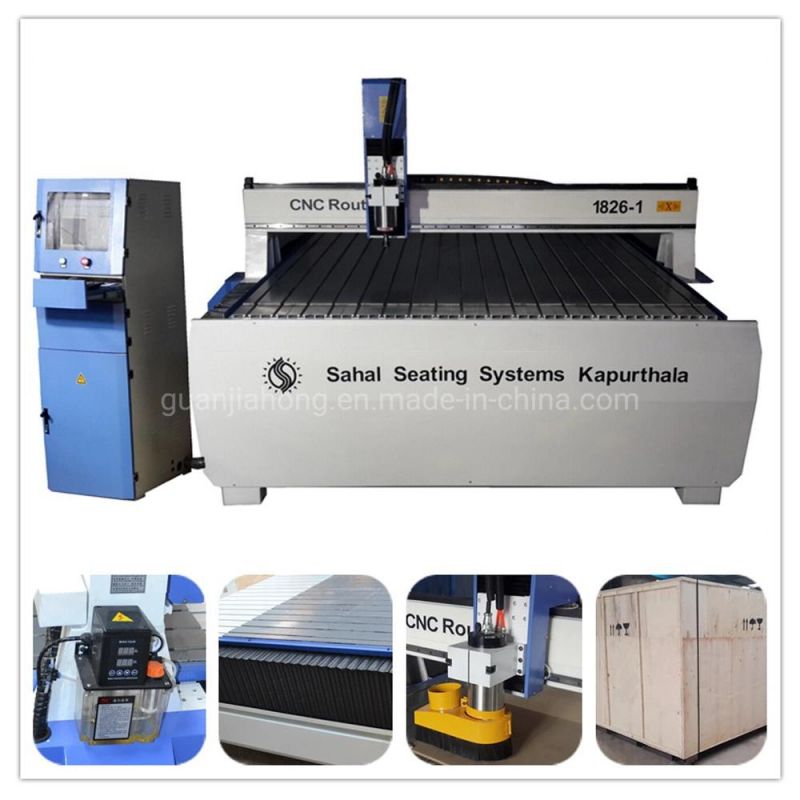

 Real Images for our whole machine,  that is our reliable quality products.

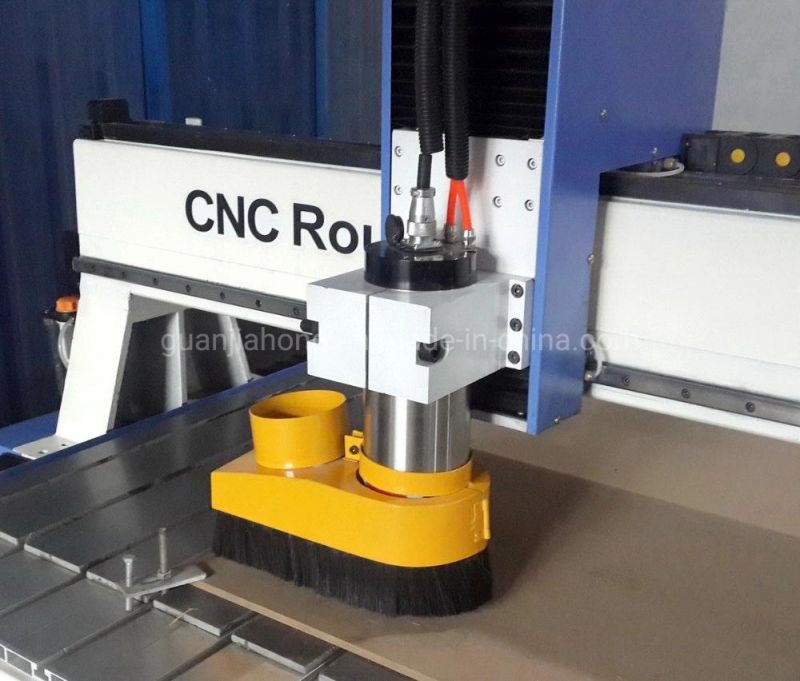

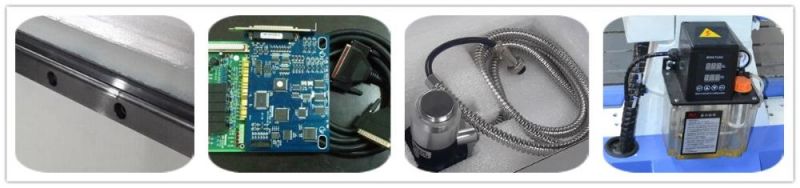

Good Quality Spindle, Dust collector & Genuine Imported PMI High Precision Accessories from Taiwan:

DESICCANT/  PROTECTION PADS, FIXED WOOD, STEEL PALLET BOTTOM......Considerate, Thoughtful and Responsible Packing Details as follows, Strong packing to ensure the machine's High Accuracy:

Sincerely waiting for your any inquiry, and trust that we can provide you professional suggestions.


NO	Performance index	Performance index	Parameter
1	Working area	X axis	1800mm
		Y axis	2600mm
		Z axis	150mm
2	Lathe size		1900mm*3000mm
3	Accuracy	Processing precision	0.05mm
		Reposition precision	0.05mm
4	Drove mode	X axis	rack gear
		Y axis	rack gear
		Z axis	screw
5	Speed	Max travel speed	35000mm/min
		Max engraving speed	20000mm/min
6	Spindle(water-cooling)	Spindle power	3KW
		Spindle speed	0-24000r/min
7	Running mode		stepper
8	Operating voltage		AC220V/50HZ
9	Command code		G code
10	Operating system		NC studio 53C
11	Collector dust		Yes

Guarantee & After-sale service1. One year warranty under normal use and we supply lifelong maintenance. 2.24 hours technical support by Phone, Email, Skype, Msn, or romote. 3. Free training to make sure you master the operation of the cnc router.
OEM Service Available1. Usually, we will manufacturer the machine as our regular design. 2. X Y Z Working Area could be custmer-oriented designing. 3. Special configuration could be customer-oriented designing.
