Three Spindle, Three Workstage Woodworking CNC Router Machine, Auto tool change CNC Wood Router
Jinan Guanjiahong CNC Machinery Co., Ltd.- Type：Engraving Router
- Spindle Layout：Spindle Over
- Spindle Number：3
- Feed Mode：Mechanical
- Controlling Mode：CNC
- Certification：CE, ISO
Base Info
- Model NO.：1325-3
- Customized：Customized
- Condition：New
- Color：Customized
- Table Type：Vacuum Table
- Control System：Nc Studio or Richauto
- Guild Rail：Hiwin Square Rail
- Drive Mode：Stepper
- Transport Package：Plywood Case
- Specification：CE
- Trademark：DONGTONG
- Origin：Shandong China
- HS Code：84609090
- Production Capacity：50 PCS,Month
Description
Basic Info.
Model NO. 1325-3 Customized Customized Condition New Color Customized Table Type Vacuum Table Control System Nc Studio or Richauto Guild Rail Hiwin Square Rail Drive Mode Stepper Transport Package Plywood Case Specification CE Trademark DONGTONG Origin Shandong China HS Code 84609090 Production Capacity 50 PCS/MonthProduct Description
Three work stage ATC woodworking CNC router from professional cnc router manufacturer
1. Multi spindle CNC Router is specially designed for multi-process engraving.2. Spindle works in turn, change tools easily.3. Advanced control system: Taiwan SYNTEC or NC STUDIO
4. Compatible with software such as:
5. TYPE3/ARTCAM/UG/PRO-E/UCANCAM/AUTOCAD/MASTERCAM
6. Functions of power-off recovery, continuation on break point, time anticipation.
7.Excellent components: HIWIN guild rail and ball screws, low noise spindle
8. Welding steel structure and 10mm gantry
9. Powerful vacuum table divided to 6 zones, can adsorb different size materials

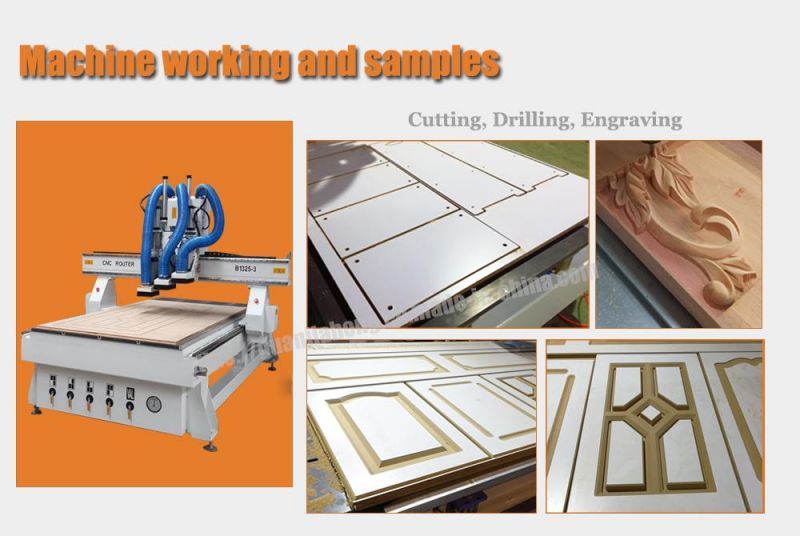

Woodworking industry: Processing all kinds of door, window, cabinet, craft wood door, paint-free door, screen, wave boards
| NO | Performance index | Performance index | Parameter |
| 1 | Working area | X axis | 1300mm |
| Y axis | 2500mm | ||
| Z axis | 200mm | ||
| 2 | Table size | 1300mm*2500mm | |
| 3 | Accuracy | Engraving accuracy | 0.05mm |
| Repositioning accuracy | 0.05mm | ||
| 4 | Drive mode | X axis | Helical rack and pinion |
| Y axis | Helical rack and pinion | ||
| Z axis | Ball screws | ||
| 5 | Speed | Max travel speed | 30000mm/min |
| Max engraving speed | 15000mm/min | ||
| 6 | Spindle ( air-cooling) | Spindle power | 5.5KW |
| Spindle speed | 0_24000r/min | ||
| 7 | Drive motor | Servo motor | |
| 8 | Working voltage | AC220V/50HZ | |
| 9 | Command code | G code | |
| 10 | Operating system | Genuine NC studio | |
| 11 | Gantry | 10MM square pipe | |
| 12 | Auto lubrication | Yes | |
| 13 | Table type | Vacuum table |
Technical support:
1. Technical support by phone, email or MSN/ Skype around the clock
2. Friendly English version manual.
3. Engineer available to service machinery overseas. but the buyer should pay the fee.
After-sale & guarantee service:
1. Under normal usage, 1 year for the whole machine and 6 months for spindle
2. Normal machine is properly adjusted before dispatch.
3. You will be able to get free training advice towards our machine in our factory.
4. You will also get free suggestion and consulting, technical support and service by email/fax/ tel and lifetime technical support

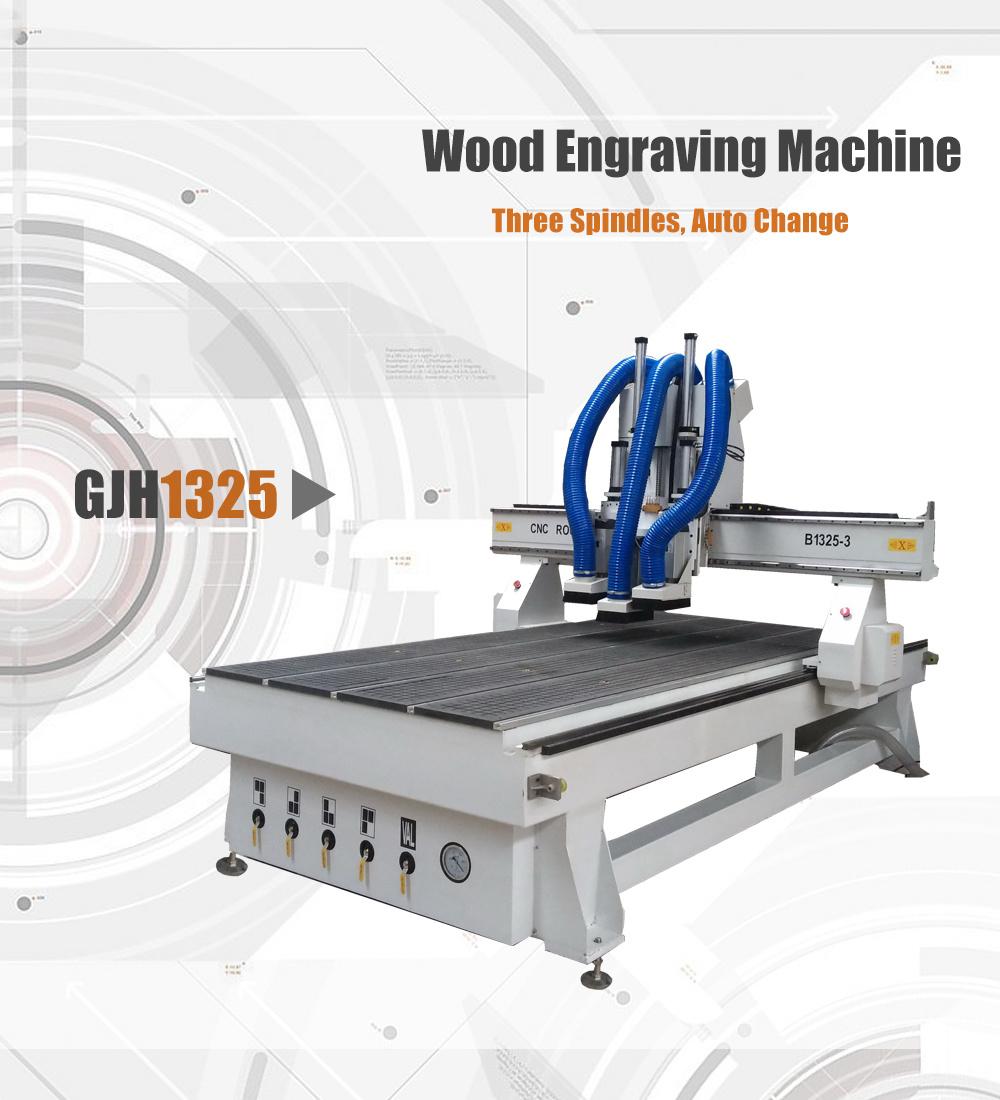

1325 three spindles, ATC wood cnc router,
Customizaiton is available.
