1325-3 Three-Stage Woodworking CNC Router, Auto Tool Change, Multi Spindle, CNC Engraving Machine
Jinan Guanjiahong CNC Machinery Co., Ltd.- Warranty：1 Year
- Type：Engraving Router
- Spindle Layout：Spindle Over
- Spindle Number：Single-Spindle
- Feed Mode：Manual
- Controlling Mode：CNC
Base Info
- Model NO.：1325-3T
- Certification：CE, ISO
- Customized：Customized
- Condition：New
- Color：Customized
- Voltage：380V
- Weight：1500kgs
- Motor：Servo Motor
- Feeding Height：200mm
- Tool Change Type：Spindles Instant Swith
- Dimension：1300*2500*200mm
- Transport Package：Plywood Case
- Specification：DTT-1325-3
- Trademark：DONGTONG
- Origin：Shandong China
- HS Code：84609090
- Production Capacity：10 PCS,Month
Description
Basic Info.
Model NO. 1325-3T Certification CE, ISO Customized Customized Condition New Color Customized Voltage 380V Weight 1500kgs Motor Servo Motor Feeding Height 200mm Tool Change Type Spindles Instant Swith Dimension 1300*2500*200mm Transport Package Plywood Case Specification DTT-1325-3 Trademark DONGTONG Origin Shandong China HS Code 84609090 Production Capacity 10 PCS/MonthProduct Description
Multi-workstage, auto tool changer, 1325 Cnc Router from professional cnc router manufactuer
1. Seamless steel structure; The stability is excellent, not easy to be deformed.2. Vacuum table with 6 vacuum zones, which can adsorb different size materials.
3 . Imported guil rail and ball screws;
4. Well compatibility: CAD/CAM designing software e. G. Type 3/ Artcam/ Castmate/ Wentai etc.
5. Re-carving after break point and power failure. forecasting process time.
6. Advanced control system, operated with the handle, convenient operation.
7. Perfect oil-inject system makes maintenance much easier.
8. Has duct-collect function. It will clean up the carving residuum and make the operations tidier and more convenient.

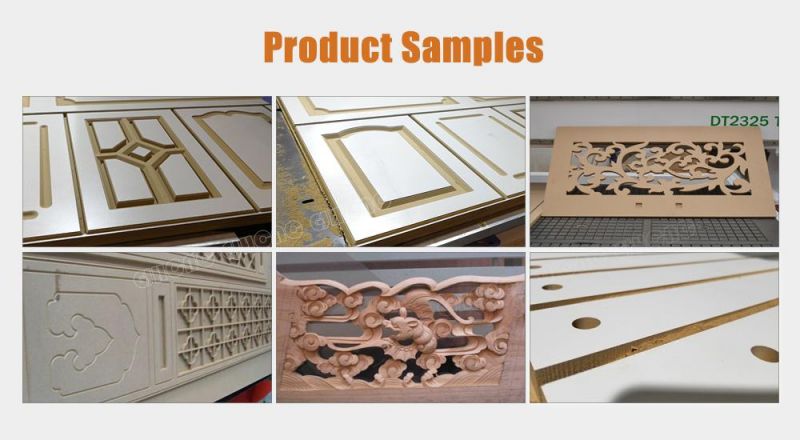

Wood, plastic, density board, wave board, PVC, acrylic, crystal, aluminum board, light marble and other nonmetal materials and light metal materials.
| NO | Performance index | Performance index | Parameter |
| 1 | Working area | X axis | 1300mm |
| Y axis | 2500mm | ||
| Z axis | 200mm | ||
| 2 | Table size | 1300mm*2500mm | |
| 3 | Accuracy | Processing precision | 0.02mm |
| Reposition precision | 0.02mm | ||
| 4 | Drove mode | X axis | Helical rack and pinion |
| Y axis | Helical rack and pinion | ||
| Z axis | Ball Screws | ||
| 5 | Speed | Max travel speed | 30000mm/min |
| Max engraving speed | 15000mm/min | ||
| 6 | Spindle(water-cooling) | Spindle power | 5.5KW |
| Spindle speed | 0_24000r/min | ||
| 7 | Operating voltage | AC220V/50HZ | |
| 8 | Command code | G Code | |
| 9 | Operating system | Nc Studio | |
| 10 | Table | Vacuum table | |
| 11 | Machine's size | 3100x2200x1800mm |
Auto tool change , 1325 wood cnc router, customizaiton is available.
