• Model NO.：3014-4
• Certification：CE
• Customized：Customized
• Condition：New
• Color：Customized
• After-sales Service：Lifetime
• Turning Diameter：250mm
• Quantity of Spindle：4
• Ball Screw：PMI Taiwan
• Transport Package：Plywood Case
• Specification：CE
• Trademark：DONGTONG
• Origin：Shandong China
• HS Code：84609090
• Production Capacity：50 Sets Per Month

Basic Info.

Model NO. 3014-4 Certification CE Customized Customized Condition New Color Customized After-sales Service Lifetime Turning Diameter 250mm Quantity of Spindle 4 Ball Screw PMI Taiwan Transport Package Plywood Case Specification CE Trademark DONGTONG Origin Shandong China HS Code 84609090 Production Capacity 50 Sets Per Month

Product Description

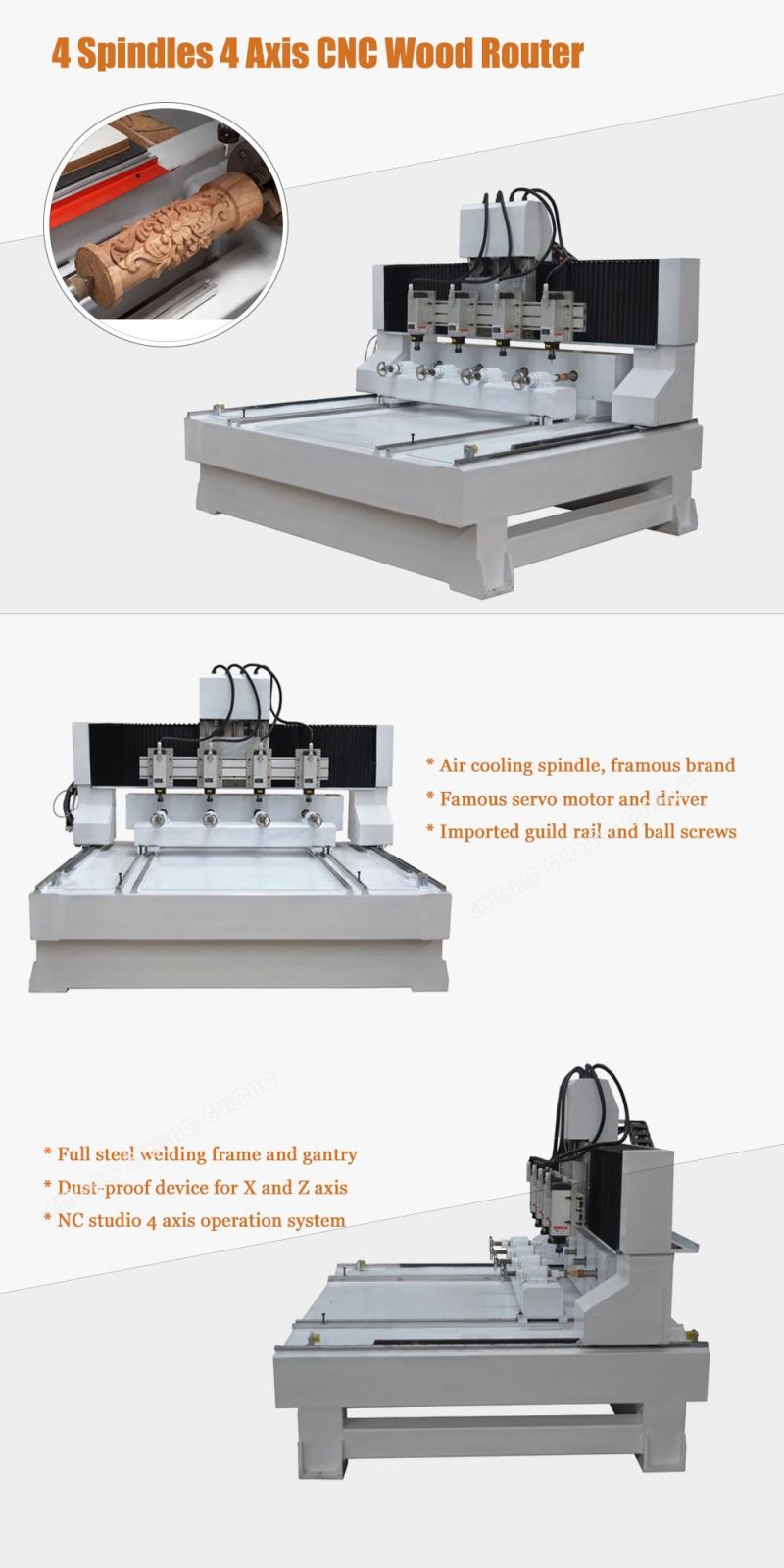

4 Axis CNC Router machine from professional woodworking cnc router machine manufacturer.


Machine Feature:

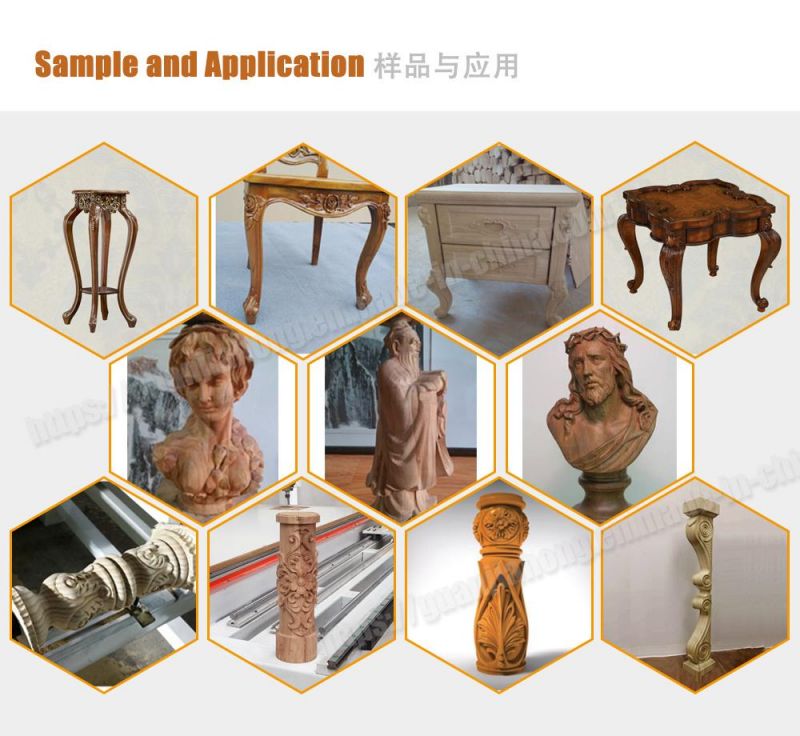

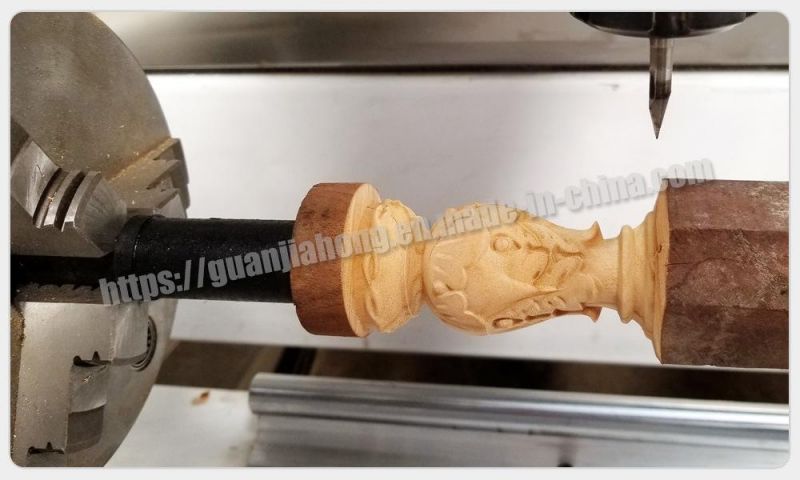

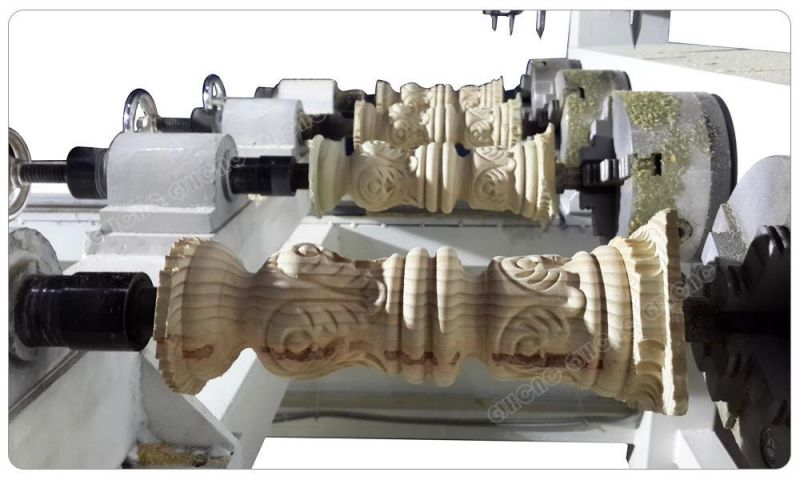

1. Specially for 3D engraving.
2. Welding by square pipe, gantry movement
3. Ball screw drive, servo motor
4. Nc studio operating system
All specification can be customized

If you have specific requirement for 4 axis woodworking CNC router machine, customization is available.











 Technical Parameter:

NO	Performance	Performance	Parameter
1	Working area	X axis	900mm
		Y axis	1400mm
		Z axis	300mm
2	Turning diameter		300mm
3	Accuracy	Working accuracy	0.02mm
		Repositioning accuracy	0.02mm
4	Drive mode	X YZ axis	Ball Screws
5	Speed	Max travel speed	15000mm/min
		Max working speed	8000mm/min
6	Spindle	Spindle power	2.2KW
		Spindle speed	0_24000r/min
7	Running mode		Servo
		Motor power	2.2KW
8	Working area		AC220-380V/50HZ
9	Machine size		2200*2200*1900
10	Operating system		NC STUDIO
11	Auto lubrication		YES
12	Dust proof		X Z axis

Technical support:
1. Technical support by phone, email or MSN/ Skype around the clock
2. Friendly English version manual.
3. Engineer available to service machinery overseas. but the buyer should pay the fee.

After-sale & guarantee service:
1. Under normal usage, 1 year for the whole machine and 6 months for spindle
2. Normal machine is properly adjusted before dispatch.
3. You will be able to get free training advice towards our machine in our factory.
4. Free suggestion and consulting, lifetime technical support and service

If you have specific requirement  for 4 axix CNC router machine, 3D wood engraving machine, customization is available.





If you have speicial requirement for 4 axis cnc router, customization is available.
