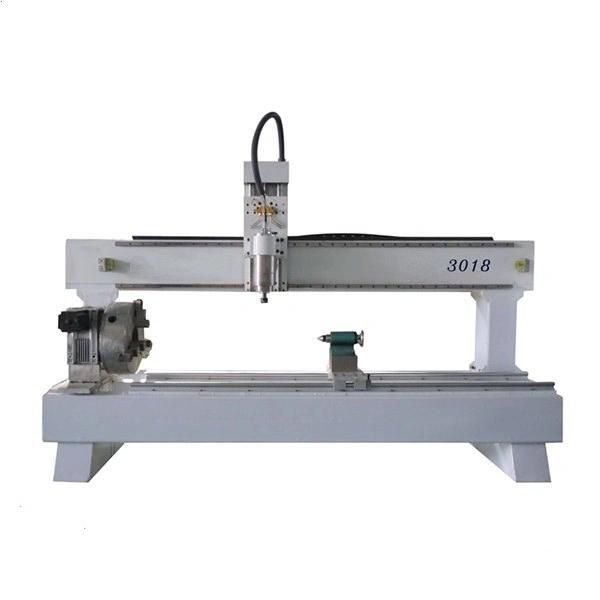

3018 Metal, Wood, Stone, Cylinder CNC Router Machine, Rotary CNC Router
Jinan Guanjiahong CNC Machinery Co., Ltd.- Type:Engraving Router
- Spindle Layout:Spindle Over
- Spindle Number:Single-Spindle
- Feed Mode:Mechanical
- Controlling Mode:CNC
- Certification:CE
Base Info
- Model NO.:3018
- Customized:Customized
- Condition:New
- Color:Customized
- Drive Mode:Stepper
- Guild Rail:Hiwin Square Rail
- Ball Screw:PMI, Taiwan
- Control System:Nc Studio or Richauto
- Transport Package:Plywood Case
- Specification:SGS
- Trademark:DONGTONG
- Origin:Shandong China
- HS Code:84609090
- Production Capacity:50 PCS,Month
Description
Basic Info.
Model NO. 3018 Customized Customized Condition New Color Customized Drive Mode Stepper Guild Rail Hiwin Square Rail Ball Screw PMI, Taiwan Control System Nc Studio or Richauto Transport Package Plywood Case Specification SGS Trademark DONGTONG Origin Shandong China HS Code 84609090 Production Capacity 50 PCS/MonthProduct Description

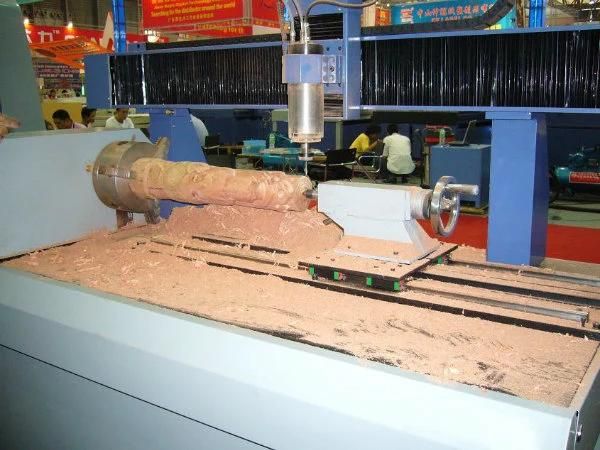

Cylinder engraving machine cnc router for column carving from professional cnc router manufacturer.Product Features:
Axis under the control of software, high automation;
High speed and efficiency, max. Speed over 14m/m;
High power spindle and good rigidity;
The Multi Spindles CNC Router is with two motors and unique two rack driving, No deformation and vibration after a long0-time work at high speed.
The main application field of industry:
1, Woodworking: Three-dimensional wave plate processing, cupboard doors, wooden doors, wooden
Doors process, doors, screens, process window processing, video game cabinets and panels,
Computer table and plate Auxiliary furniture products processing.
2, advertising industry: Advertising signs, logo production, acrylic cutting, forming system module, plastic
Sheeting, PVC pipe a variety of materials advertising the production of decorative products.
3, metal industry: A sculpture of copper, aluminum, iron and other metal molds,
4. Stone Granite, marble, Qingshi, sandstone, and other stone carvings
5, other industries: A variety of large-scale relief sculpture, video carving, widely used in process industries.
NO | Performance | Performance | Parameter | Optional |
1 | Working area | X axis | 360mm | 360mm |
Y axis | 1800mm | 500-2500mm | ||
Z axis | 300mm | 200-1000mm | ||
2 | Turning diameter | 300mm | 260-1200mm | |
3 | Accuracy | Working accuracy | 0.02mm | |
Repositioning accuracy | 0.02mm | |||
4 | Drive mode | X axis | Reducer | |
Y axis | Rack gear | |||
Z axis | Screw | |||
5 | Speed | Max travel speed | 15000mm/min | |
Max working speed | 8000mm/min | |||
6 | Spindle(water-cooling) | Spindle power | 3KW | 1.5KW_5.5KW |
Spindle speed | 0_24000r/min | |||
7 | Drive mode | Stepper | ||
8 | Working voltage | AC220-380V/50HZ | ||
9 | Machine size | 1000*2200*1900 | ||
10 | Operating system | NC studio | ||
11 | Machine weight | 600KG | ||
Technical support:
1. Technical support by phone, email or MSN/ Skype around the clock
2. Friendly English version manual.
3. Engineer available to service machinery overseas. but the buyer should pay the fee.
After-sale & guarantee service:
1. Under normal usage, 1 year for the whole machine and 6 months for spindle
2. Normal machine is properly adjusted before dispatch.
3. You will be able to get free training advice towards our machine in our factory.
4. You will also get free suggestion and consulting, technical support and service by email/fax/ tel and lifetime technical support
If you have specific requirement for clyinder cnc router, customization is available.
