• Model NO.：1325
• Customized：Customized
• Condition：New
• Color：Customized
• Table Size：1300*2500
• Movement：Gantry
• Screw：PMI From Taiwan
• Control System：Nc Studio (Genuine)
• Running Mode：Stepper
• Optional：Servo (Yaskawa)
• Transport Package：Plywood Case
• Specification：CE
• Trademark：DONGTONG
• Origin：Shandong China
• HS Code：84609090
• Production Capacity：50 Sets Per Month

Basic Info.

Model NO. 1325 Customized Customized Condition New Color Customized Table Size 1300*2500 Movement Gantry Screw PMI From Taiwan Control System Nc Studio (Genuine) Running Mode Stepper Optional Servo (Yaskawa) Transport Package Plywood Case Specification CE Trademark DONGTONG Origin Shandong China HS Code 84609090 Production Capacity 50 Sets Per Month

Product Description

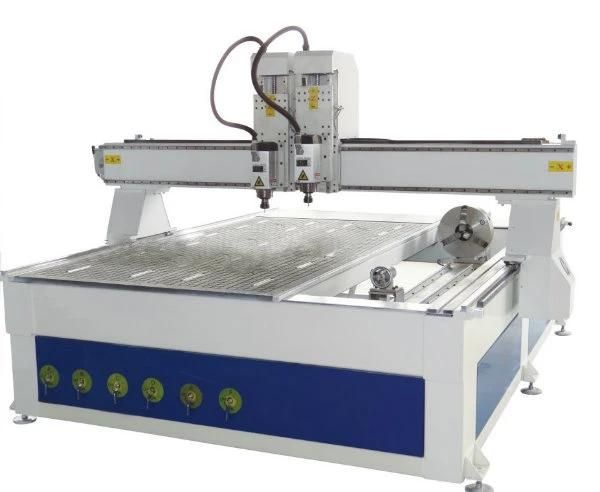

Factory price, 1325, Stepper motor, Rotary Axis, Woodworking & Stone Cnc router from Professional cnc router machine maufacturor for 9 years!


1. DT1325D specially designed for Woodworking.
2. The machines'body is strong, rigid, high precision, eliable and durable.
3. Imported high-precision ball screw gap, smooth movement, to ensure that the machine tools high-precision...
4. Using well-known domestic brands of water-cooled brushless spindle, low noise, and strong cutting ability, to ensure the long time working.
5. High-performance driven motor to ensure that the machines high speed and accuracy
6. Designer perfectly, selects the best machine accessories, to minimize the failure rate preferred
7. Breakpoint specific memory, power outages continued carving, processing time forecast, and other functions to ensure that accidental processing
8. Compatibility, compatible Type3/ Artcam/ Castmate/Wentai, and so on a variety of CAD/CAM design software.
















NO	Working area	Performance index	Parameter
1	Working	X	1300mm
		Y	2500mm
		Z	200mm

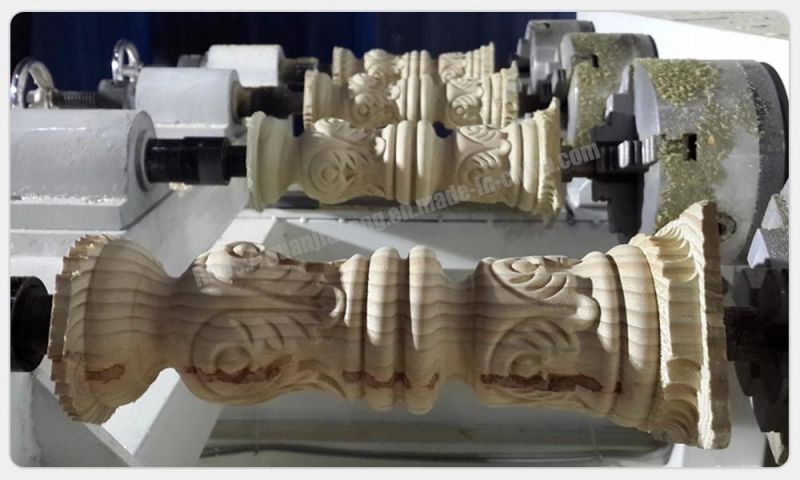

2	Working rotary dia.		220mm
	Working rotary length		2000mm
3	Accuracy	Processing precision	0.05mm
		Repositioning precision	0.05mm
4	Drive mode	X	Helical rack and pinion
		Y	Helical rack and pinion
		Z	Ball screw
5	Speed	Max travel speed	35000mm/min
		Max processing speed	20000mm/min
6	Spindle (water-cooling)	Spindle power	3KW
		Spindle speed	0_24000r/min
7	Running mode		Stepper (servo motor is optional)
8	Operating voltage		AC220V/50HZ
9	Operating system		Nc Sudio
10	Net weight		1400KG
11	Machine size		3100x1700x1700mm
12	Packing size		3200x1800x1900mm

It is our pleasure to produce any tpye cnc machines as your requirement.
