1325 Advertising, Wood, Stone, Acrylic, Metal, MDF CNC Router, CNC Engraving Machine
Jinan Guanjiahong CNC Machinery Co., Ltd.- Warranty:1 Year
- Type:Engraving Router
- Spindle Layout:Spindle Over
- Spindle Number:Single-Spindle
- Feed Mode:Mechanical
- Controlling Mode:CNC
Base Info
- Model NO.:1325
- Certification:CE
- Customized:Customized
- Condition:New
- Color:Customized
- After-sales Service:Lifetime
- Drive Mode:Stepper
- Control System:Nc Studio or Richauto
- Guild Rail:Hiwin Square Rail
- Ball Screw:PMI, Taiwan
- Transport Package:Standard Exported Plywood Case
- Specification:SGS
- Trademark:DONGTONG
- Origin:Jinan China
- HS Code:84609090
- Production Capacity:50 Sets Per Month
Description
Basic Info.
Model NO. 1325 Certification CE Customized Customized Condition New Color Customized After-sales Service Lifetime Drive Mode Stepper Control System Nc Studio or Richauto Guild Rail Hiwin Square Rail Ball Screw PMI, Taiwan Transport Package Standard Exported Plywood Case Specification SGS Trademark DONGTONG Origin Jinan China HS Code 84609090 Production Capacity 50 Sets Per MonthProduct Description
Advertising, Woodworking CNC Engraving MachineWood, Soft metal, Acrylic, Platic, Aluminum, Copper
Cnc Router from professional cnc router manufacturer
1. The table is made by whole and thick-walled steel pipe;
2. Through finite element analysis (FEA) analysis and design, make the machine stability and high precision.
3. Rolling ball screw from Taiwan, original screw nut, imported linear and square rail for all the X, Y, Z axis.
4. Gantry movement for heavy products.
5. High speed: Max motion speed is 9000mm/min (optional).
6. Control system: PCI system, 3D display and following.
7. A variety of software compatibility: Compatible Wentai, carved, Tyie3, Artcam, Ucancam8, CAXA and other CAD/CAM software.
8. Re-carving after stopping and the power failure may be restored. Processing time prediction

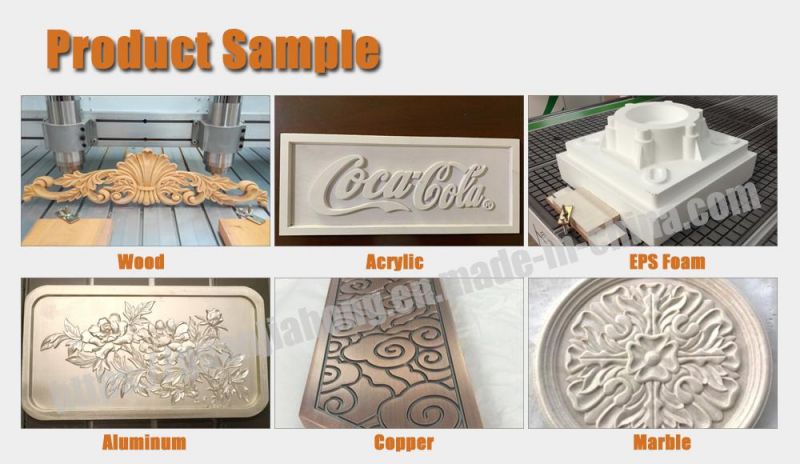

Advertisement engraving, advertisement cutting, Cu and Al molding cutting, mold manufacturing cutting, wood processing cutting, craft manufacturing cutting, light box cutting, building mold cutting, indoor decoration cutting, wave board processing cutting, light equipment, mold processing cutting, sign and mark manufacturing cutting, acrylic board processing cutting, stamp cutting.
Technical Parameter:
Model | 1325 |
Weight | 3000KG |
Working area | 1300×2500×100 |
Machine size | 2970×1750×1350 |
Spindle power | 5.5Kw water-cooling |
Running speed | 8000mm/min |
Spindle rotational speed | 0-24000r/min |
Cutting tool diameter | 6mm/12.7mm |
Software support | HPGL or G Code |
Working precision | ±0.02mm |

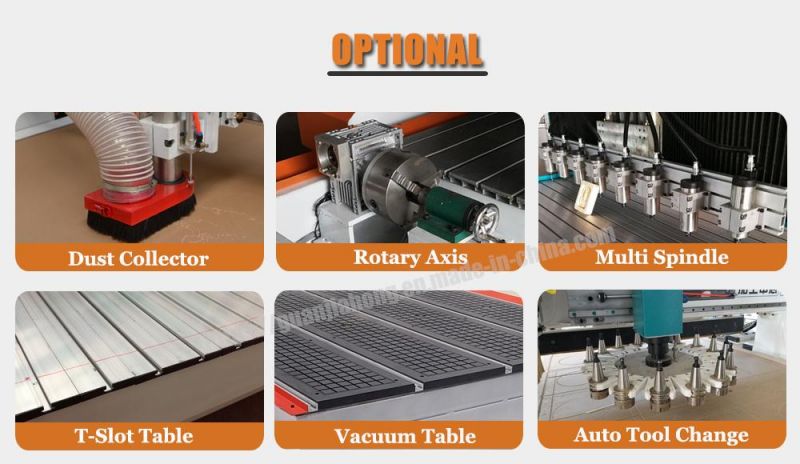

Optional | 1. Servo system 2. Dust collection 3. Vacuum table |

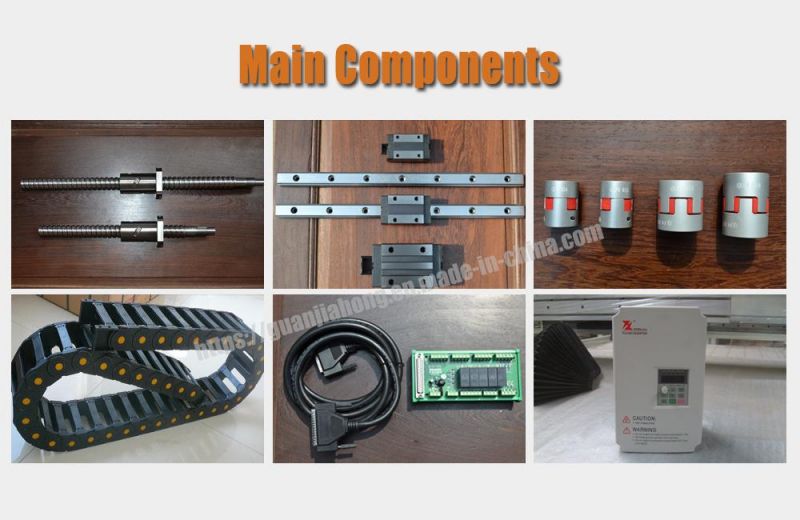

Important parts: | 1. Ball screw and Liner rail: Imported from Japan and Taiwan; 2. Spindle motor: High quality domestic water-cooling spindle. |
1325 advertising cnc router, customizaiton is available.
